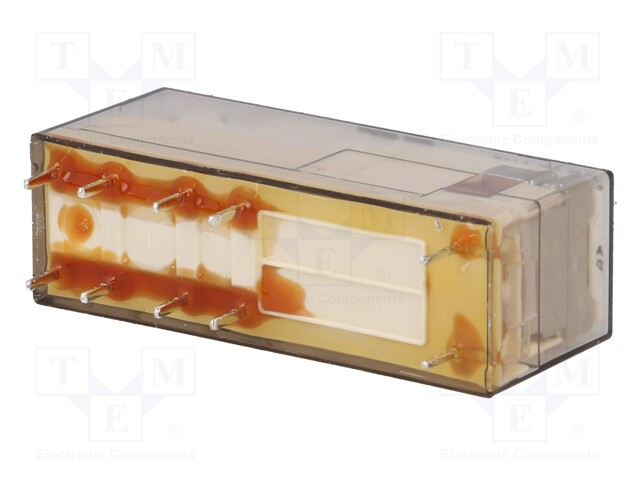

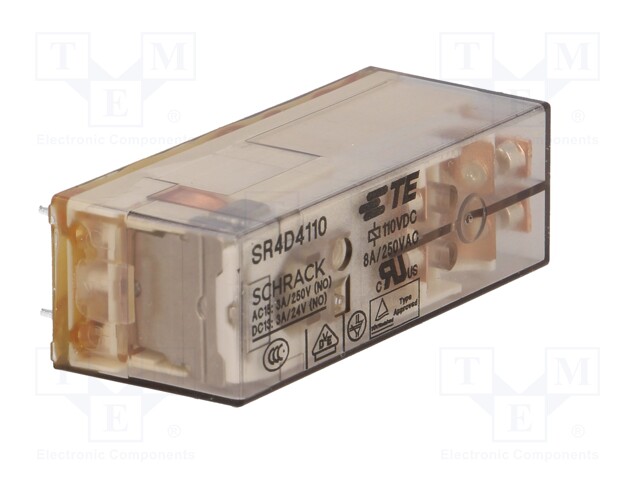

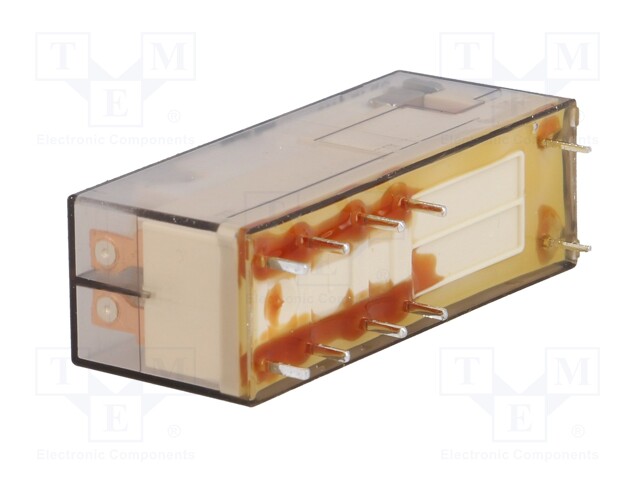

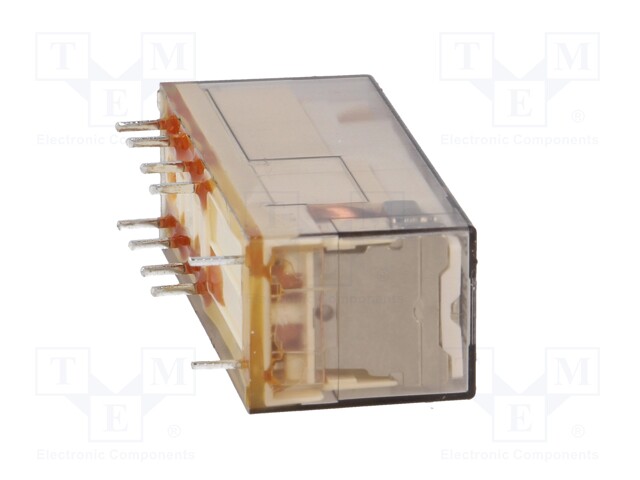

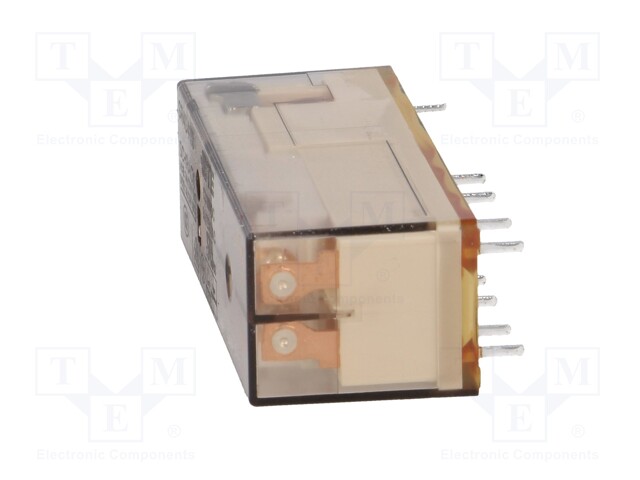

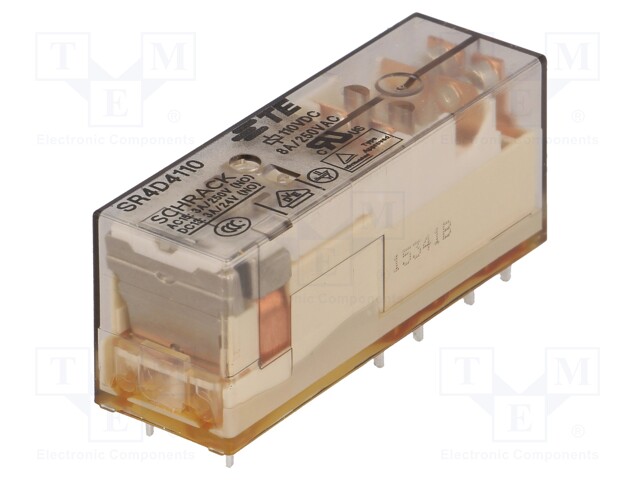

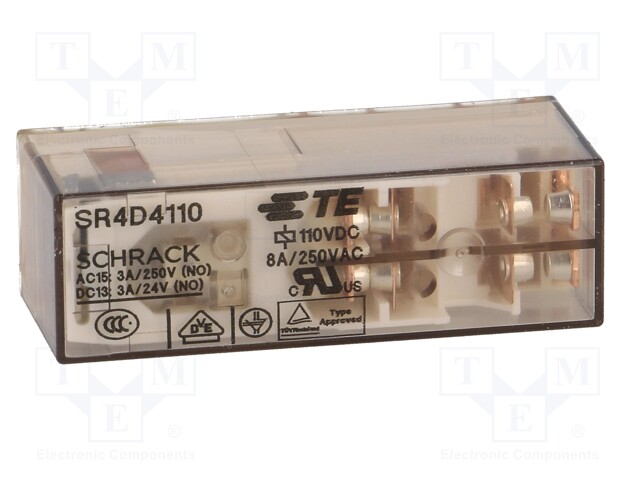

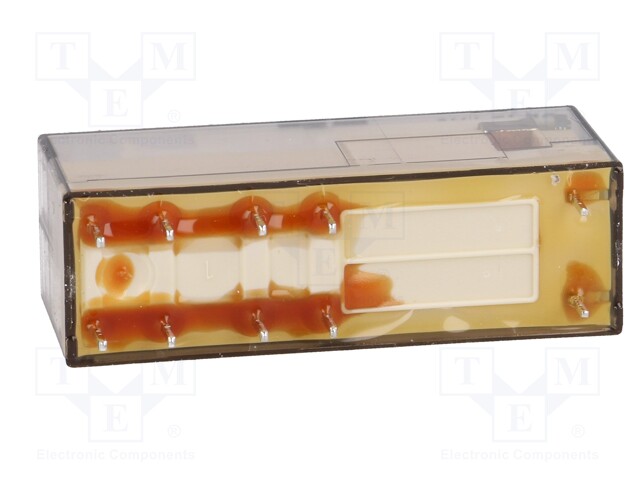

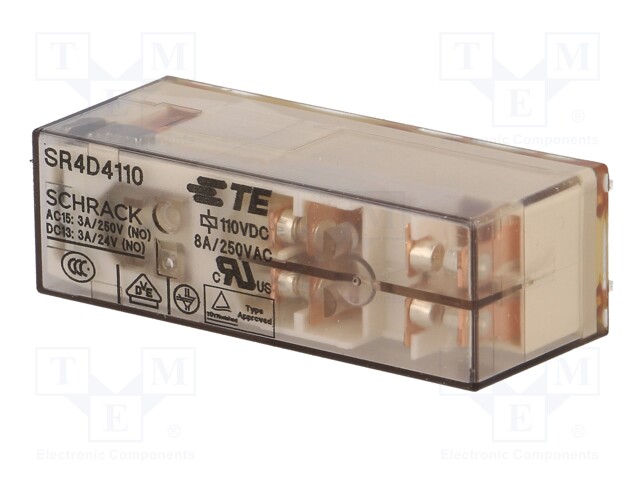

Relay: electromagnetic; SPST-NO x2 + SPST-NC x2; Ucoil: 110VDC

    Kordarv: 1.0
    Minimum quantity: 1.0
    Tootekood: 9-1415055-1
    Tootja: TE Connectivity
    Tootja tootekood: 9-1415055-1
    • Mounting
    • Operating temperature
    • Terminal pitch
    • Body dimensions
    • Switched voltage
    • Switched voltage
    • Coil resistance
    • Rated coil voltage
    • Contacts configuration
    • DC contacts rating @R
    • Contact resistance
    • AC contacts rating @R
    • Contact current max.
    • Relay variant
    • Type of relay

    0,00 € 0,00 € (KM-TA) 0.0 EUR

    0,00 €

    Seda kombinatsiooni ei eksisteeri.

    Lisa ostukorvi

    Product downloads

    Spetsifikatsioon tootele Relay: electromagnetic; SPST-NO x2 + SPST-NC x2; Ucoil: 110VDC

    Mounting PCB
    Operating temperature -25...70°C
    Terminal pitch 5mm
    Body dimensions 40x13x16.5mm
    Switched voltage ≤ 250V DC, ≤ 400V AC
    Coil resistance 15.125kΩ
    Rated coil voltage 110V DC
    Contacts configuration SPST-NO x2 + SPST-NC x2
    DC contacts rating @R 8A / 30V DC
    Contact resistance 100MΩ
    AC contacts rating @R 8A / 250V AC
    Contact current max. 8A
    Relay variant safety
    Type of relay electromagnetic
