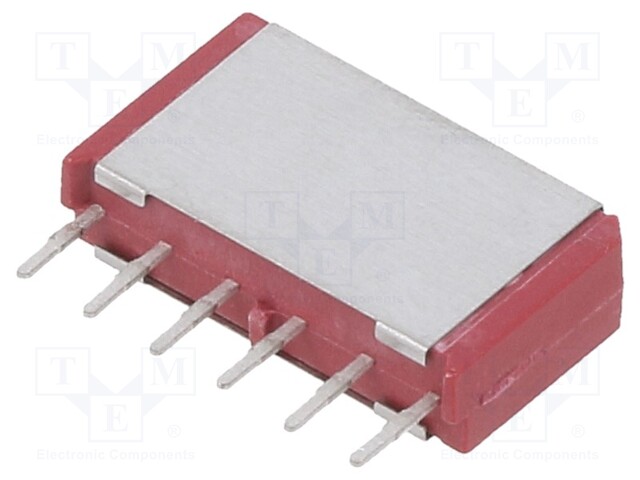

Relay: reed

    Kordarv: 1.0
    Minimum quantity: 1.0
    Tootekood: 9092-05-11
    Tootja: COTO TECHNOLOGY
    Tootja tootekood: 9092-05-11
    • Mounting
    • Case
    • Operating temperature
    • Terminal pitch
    • Switched voltage
    • Switched voltage
    • Switching capacity
    • Coil resistance
    • Rated coil voltage
    • Contacts configuration
    • Contact resistance
    • Contact current max.
    • Coil voltage max.
    • Type of relay
    • Coil voltage min.
    • Optional equipment

    14,28 € 14,28 € (KM-TA) 14.280000000000001 EUR

    14,28 €

    Seda kombinatsiooni ei eksisteeri.

    Lisa ostukorvi

    Product downloads

    Spetsifikatsioon tootele Relay: reed

    Mounting THT
    Case SIP
    Operating temperature -20...85°C
    Terminal pitch 2.54mm
    Switched voltage ≤ 200V AC, ≤ 200V DC
    Switching capacity 10W
    Coil resistance 375Ω
    Rated coil voltage 5V DC
    Contacts configuration SPST-NO
    Contact resistance 200mΩ
    Contact current max. 500mA
    Coil voltage max. 6.5V DC
    Type of relay reed
    Coil voltage min. 3.75V DC
    Optional equipment electrostatic shield
