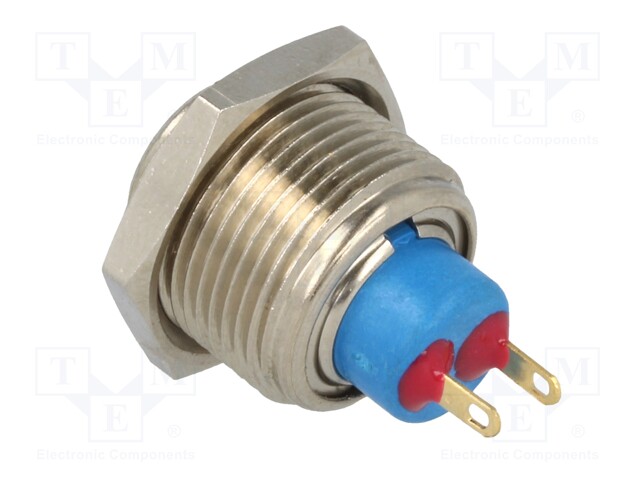

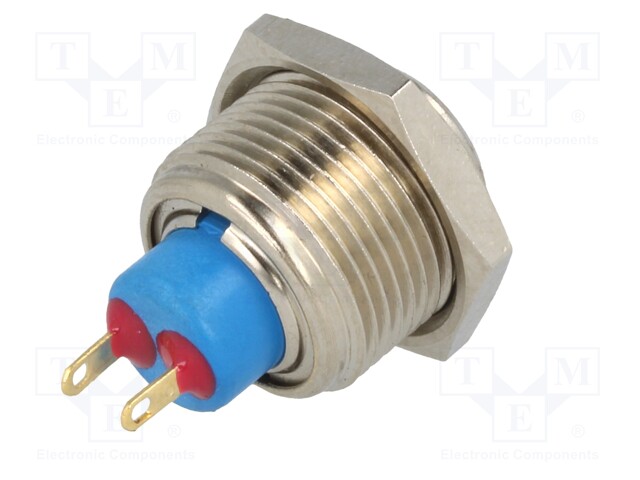

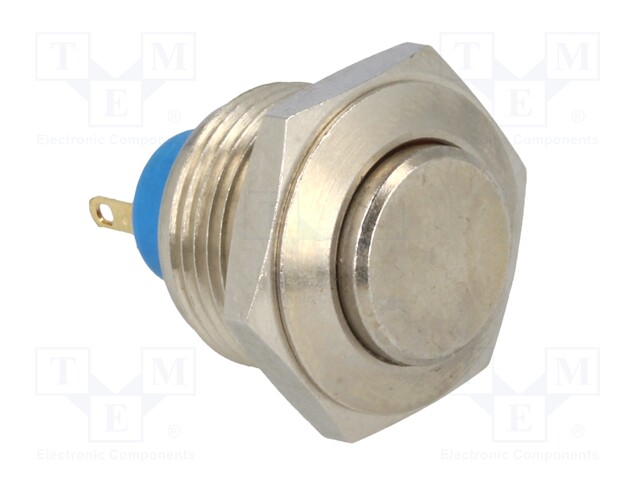

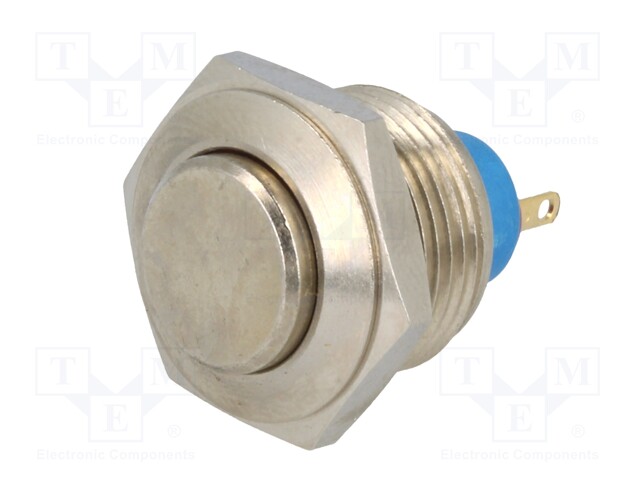

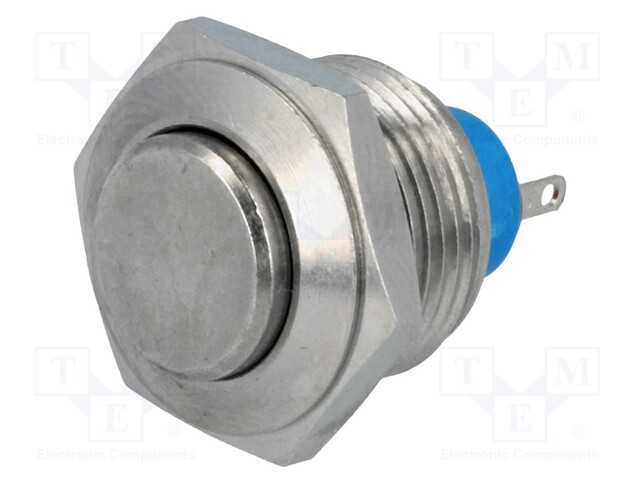

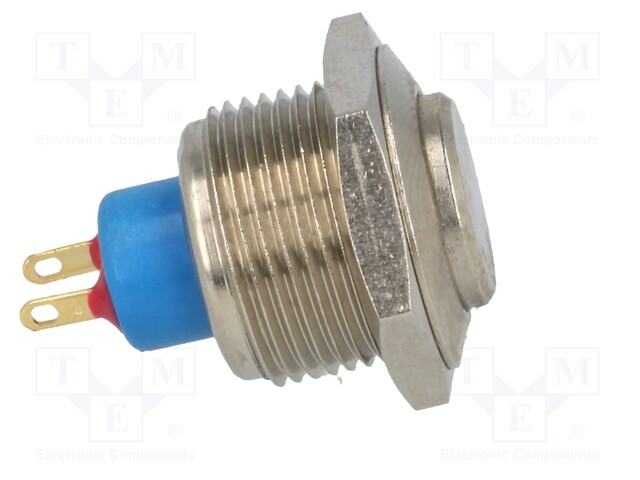

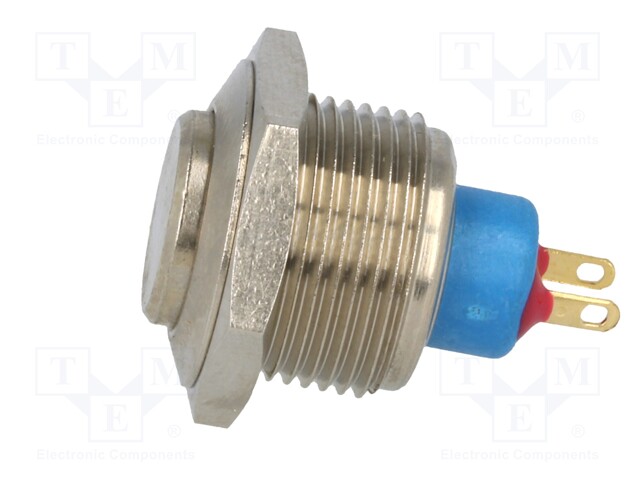

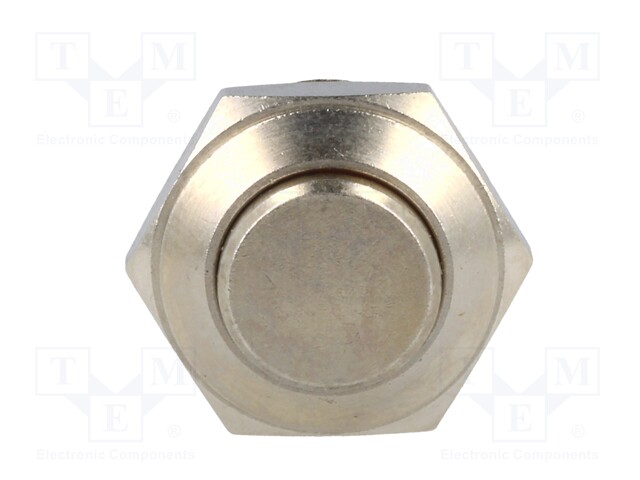

Switch: vandal resistant; Pos: 2; SPST-NO; 0.3A/250VAC; 1A/30VDC

    Kordarv: 1.0
    Minimum quantity: 1.0
    Tootekood: 9633ADX1146
    Tootja: APEM
    Tootja tootekood: 9633ADX1146
    • Operating temperature
    • IP rating
    • Type of switch
    • Contact plating
    • Number of positions
    • Leads
    • Max. contact resistance
    • Body material
    • Mounting hole diameter
    • Body colour
    • Plating material
    • Min. insulation resistance
    • Electrical life
    • Test voltage
    • Contacts configuration
    • DC contacts rating @R
    • AC contacts rating @R
    • Switching method
    • Stable positions number
    • Button shape

    16,84 € 16,84 € (KM-TA) 16.84 EUR

    16,84 €

    Seda kombinatsiooni ei eksisteeri.

    Lisa ostukorvi

    Product downloads

    Spetsifikatsioon tootele Switch: vandal resistant; Pos: 2; SPST-NO; 0.3A/250VAC; 1A/30VDC

    Operating temperature -30...65°C
    IP rating IP65
    Type of switch vandal resistant
    Contact plating silver plated
    Number of positions 2
    Leads for soldering
    Max. contact resistance 50mΩ
    Body material brass
    Mounting hole diameter Ø16mm
    Body colour silver
    Plating material nickel
    Min. insulation resistance 1GΩ
    Electrical life 250000cycles
    Test voltage 1.5kV
    Contacts configuration SPST-NO
    DC contacts rating @R 1A / 30V DC
    AC contacts rating @R 300mA / 250V AC
    Switching method OFF-(ON)
    Stable positions number 1
    Button shape prominent
