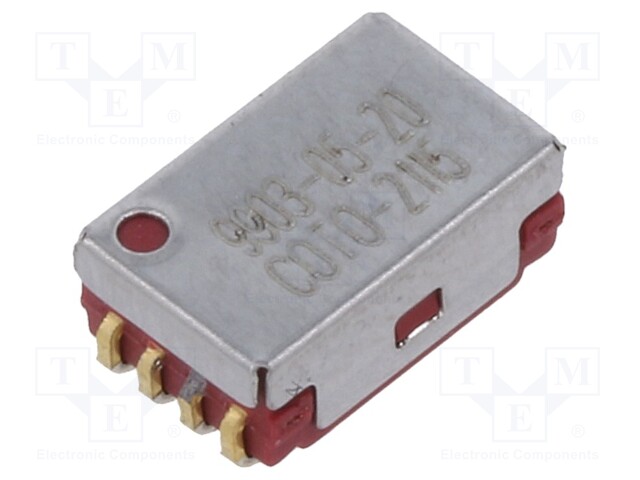

Spetsifikatsioon tootele Relay: reed
| Mounting | SMT |
| Operating temperature | -20...85°C |
| Switched voltage | ≤ 100V AC, ≤ 100V DC |
| Switching capacity | 3W |
| Coil resistance | 150Ω |
| Rated coil voltage | 5V DC |
| Contacts configuration | SPDT |
| Contact resistance | 150mΩ |
| Contact current max. | 500mA |
| Coil voltage max. | 6V DC |
| Type of relay | reed |
| Coil voltage min. | 3.7V DC |
| Optional equipment | electrostatic shield |
