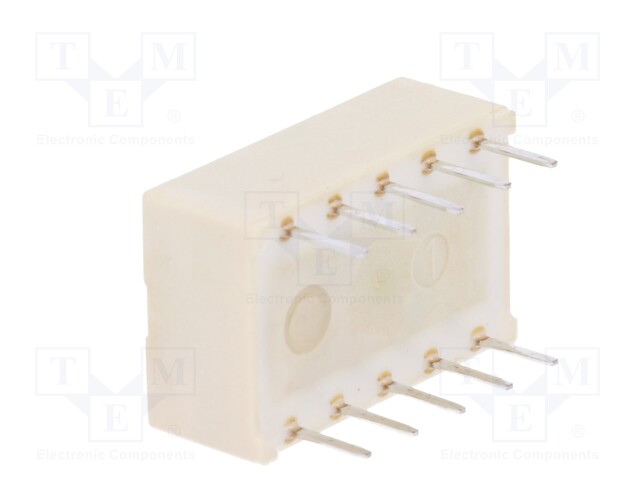

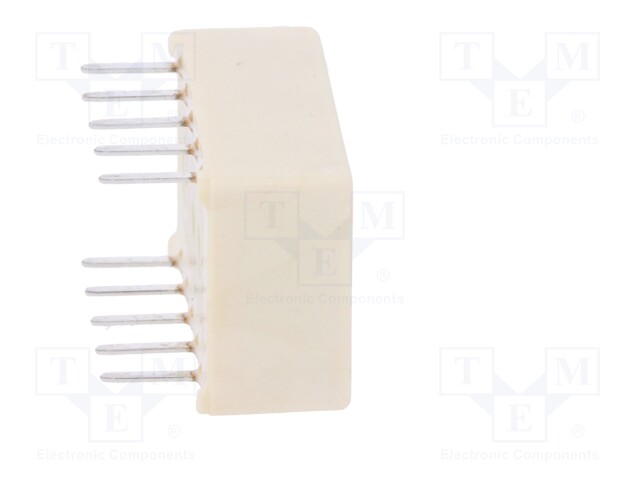

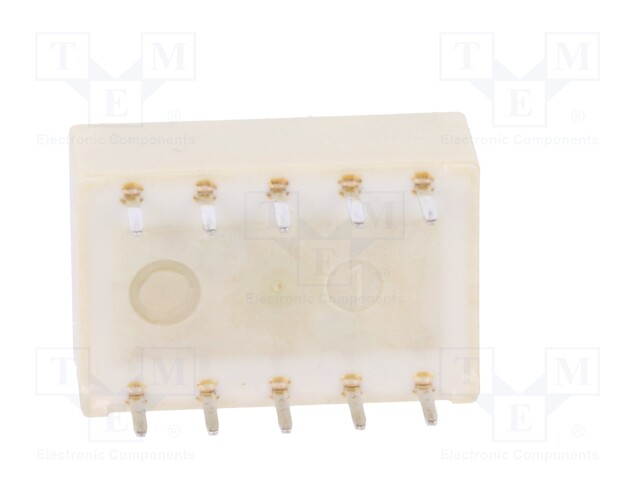

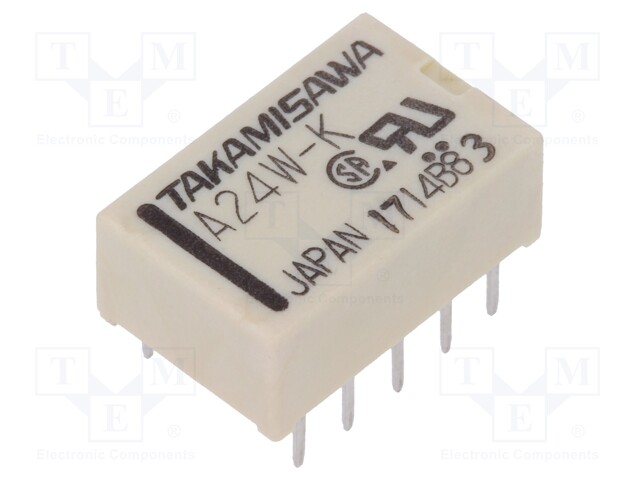

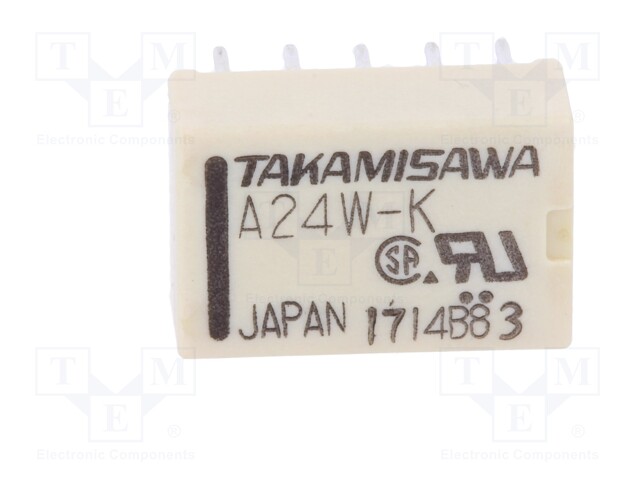

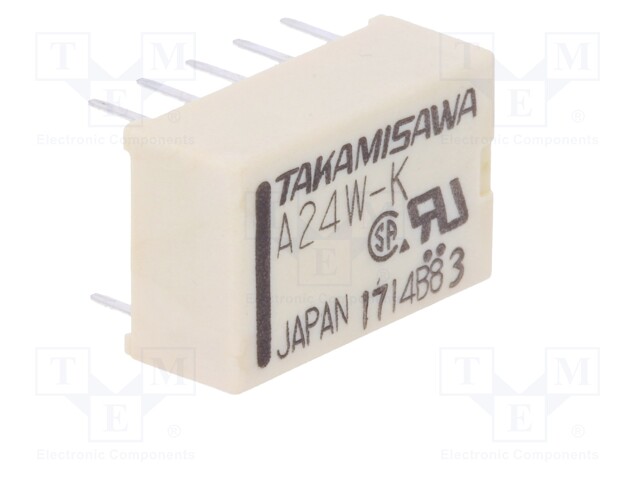

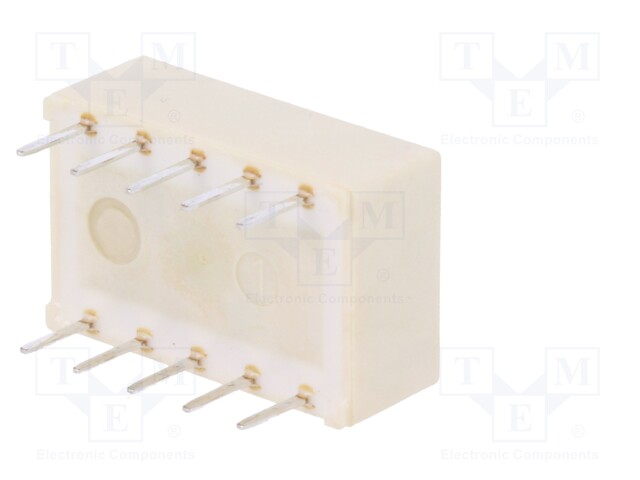

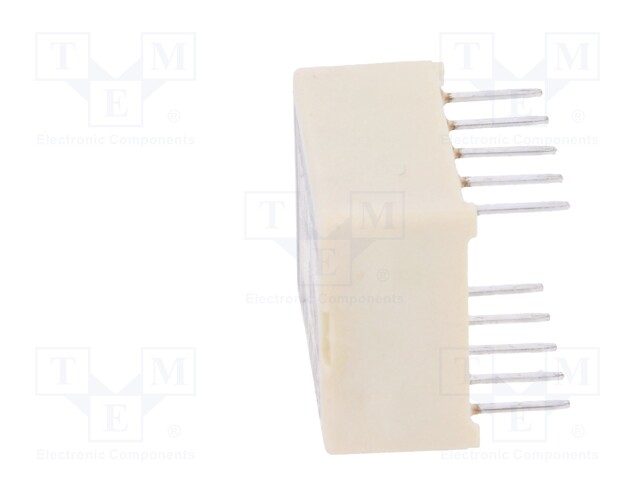

Relay: electromagnetic; DPDT; Ucoil: 24VDC; 0.5A/125VAC; 1A/30VDC

    Kordarv: 1.0
    Minimum quantity: 1.0
    Tootekood: A-24W-K
    Tootja: FUJITSU
    Tootja tootekood: A-24W-K
    • Mounting
    • Case
    • Operating temperature
    • Terminal pitch
    • Body dimensions
    • Switched voltage
    • Switched voltage
    • Switching capacity
    • Switching capacity
    • Coil resistance
    • Rated coil voltage
    • Contacts configuration
    • DC contacts rating @R
    • Contact resistance
    • AC contacts rating @R
    • Contact current max.
    • Relay variant
    • Type of relay
    • Coil voltage min.
    • Coil power consumption
    • Operate time
    • Release time

    0,00 € 0,00 € (KM-TA) 0.0 EUR

    0,00 €

    Seda kombinatsiooni ei eksisteeri.

    Lisa ostukorvi

    Product downloads

    Spetsifikatsioon tootele Relay: electromagnetic; DPDT; Ucoil: 24VDC; 0.5A/125VAC; 1A/30VDC

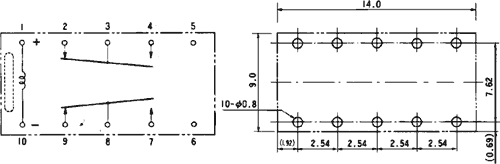

    Mounting PCB
    Case DIP10
    Operating temperature -40...85°C
    Terminal pitch 2.54mm
    Body dimensions 14x9x5mm
    Switched voltage ≤ 110V DC, ≤ 125V AC
    Switching capacity 30W, 62.5VA
    Coil resistance 2.88kΩ
    Rated coil voltage 24V DC
    Contacts configuration DPDT
    DC contacts rating @R 1A / 30V DC
    Contact resistance 50mΩ
    AC contacts rating @R 500mA / 125V AC
    Contact current max. 2A
    Relay variant subminiature
    Type of relay electromagnetic
    Coil voltage min. 18V DC
    Coil power consumption 300mW
    Operate time 6ms
    Release time 4ms
