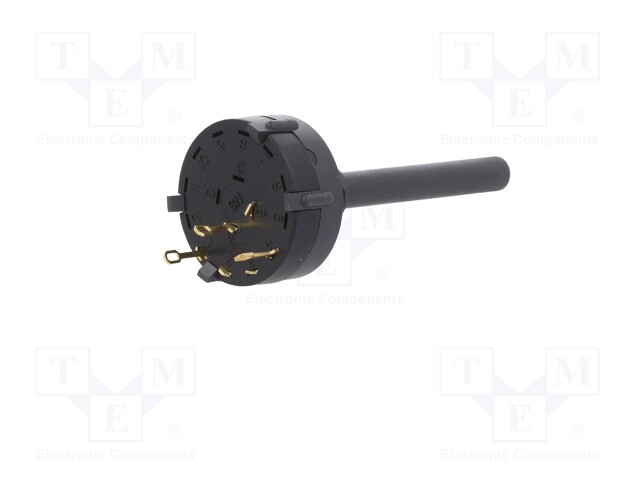

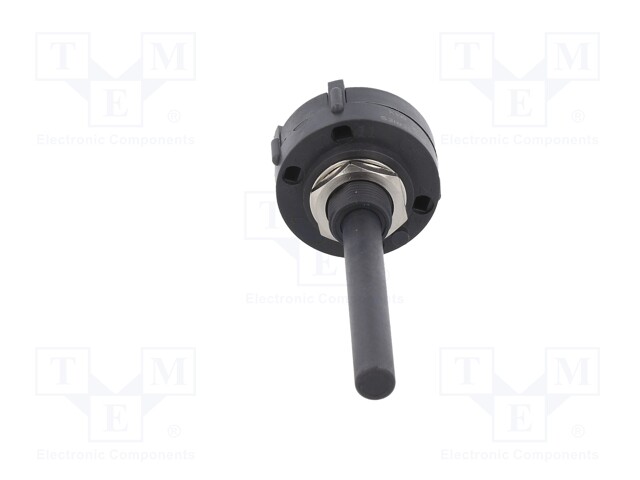

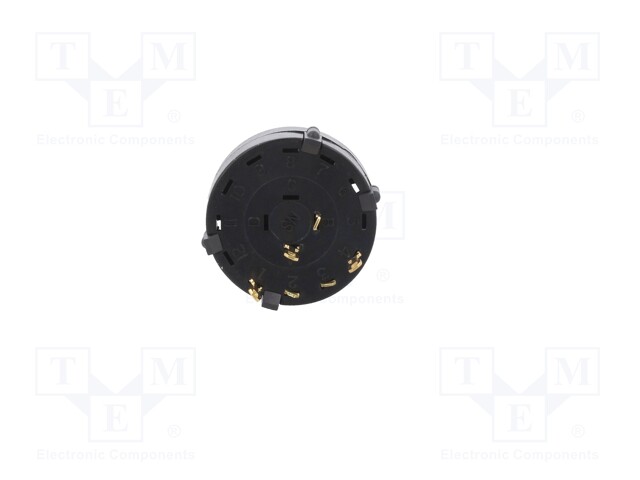

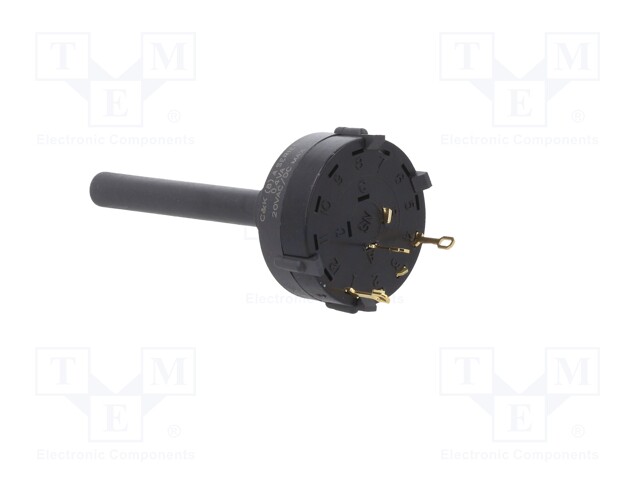

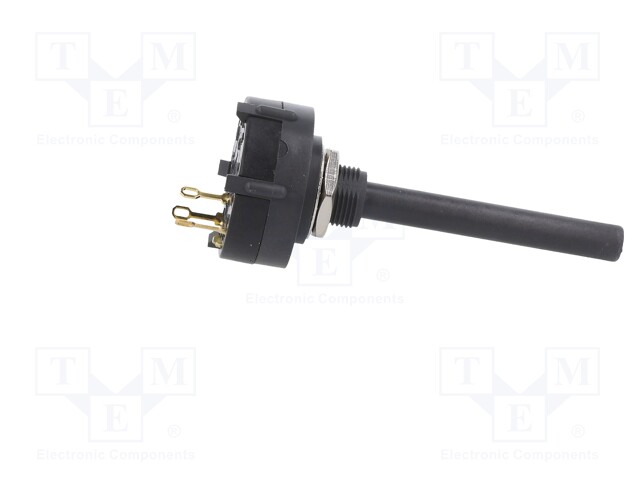

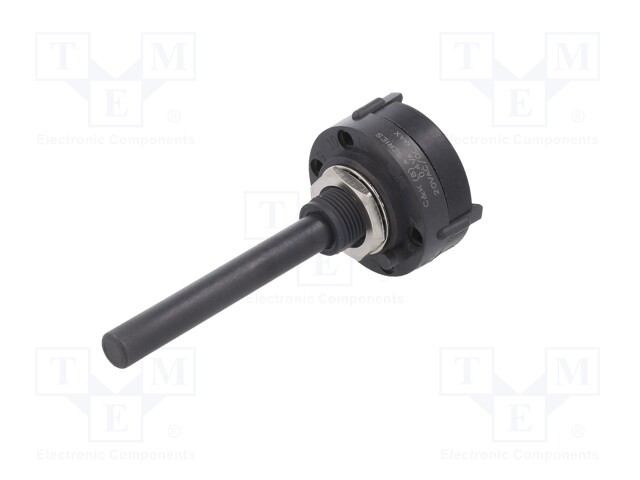

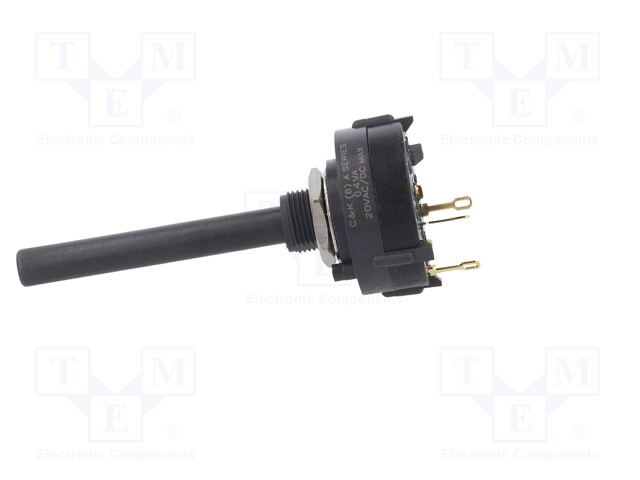

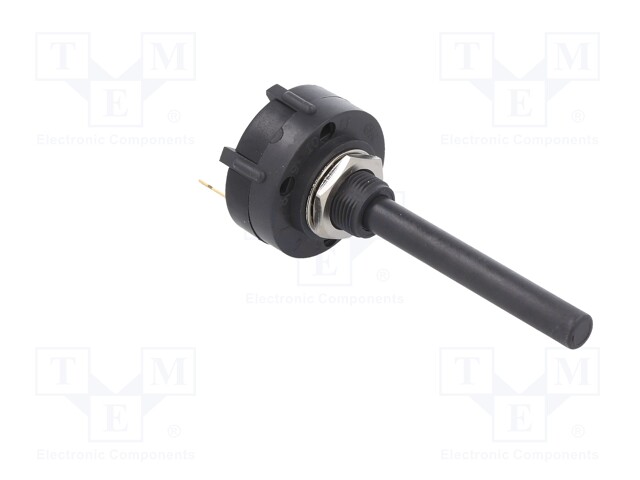

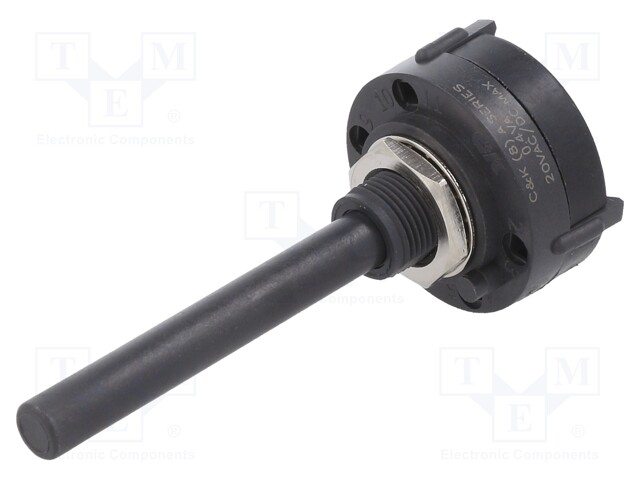

Switch: rotary; Pos: 2; SPDT; 0.02A/20VAC; 0.02A/20VDC; 90°; L: 42mm

    Kordarv: 1.0
    Minimum quantity: 1.0
    Tootekood: A11442MNZB
    Tootja: C&K
    Tootja tootekood: A11442MNZB
    • Operating temperature
    • Type of switch
    • Contact plating
    • Contact plating
    • Number of positions
    • Leads
    • Fastening thread
    • Contact material
    • Max. contact resistance
    • Body dimensions
    • Min. insulation resistance
    • Electrical life
    • Shaft length
    • Shaft diameter
    • Shaft surface
    • Poles number
    • Contacts configuration
    • DC contacts rating @R
    • AC contacts rating @R
    • Stable positions number

    26,95 € 26,95 € (KM-TA) 26.95 EUR

    26,95 €

    Seda kombinatsiooni ei eksisteeri.

    Lisa ostukorvi

    Product downloads

    Spetsifikatsioon tootele Switch: rotary; Pos: 2; SPDT; 0.02A/20VAC; 0.02A/20VDC; 90°; L: 42mm

    Operating temperature -30...85°C
    Type of switch rotary
    Contact plating gold-plated, nickel plated
    Number of positions 2
    Leads for soldering
    Fastening thread M10x0,75
    Contact material brass
    Max. contact resistance 20mΩ
    Body dimensions Ø26.19x12.83mm
    Min. insulation resistance 10GΩ
    Electrical life 15000cycles
    Shaft length 42mm
    Shaft diameter 6mm
    Shaft surface smooth
    Poles number 1
    Contacts configuration SPDT
    DC contacts rating @R 350mA / 125V DC
    AC contacts rating @R 2.5A / 125V AC
    Stable positions number 2
