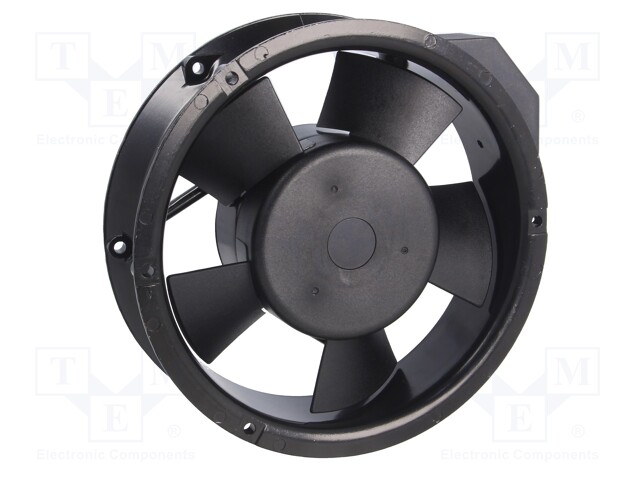

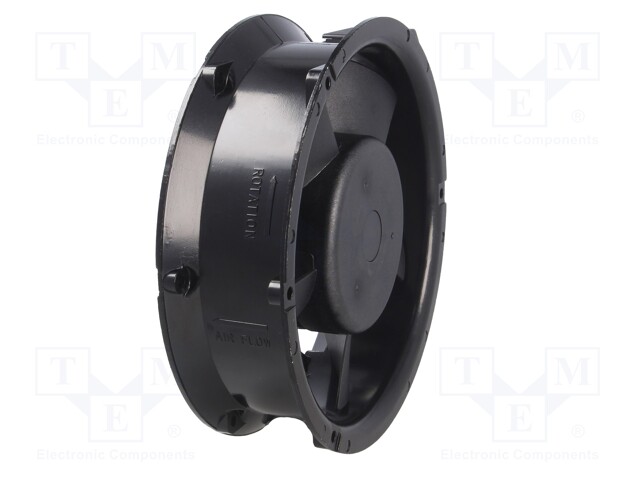

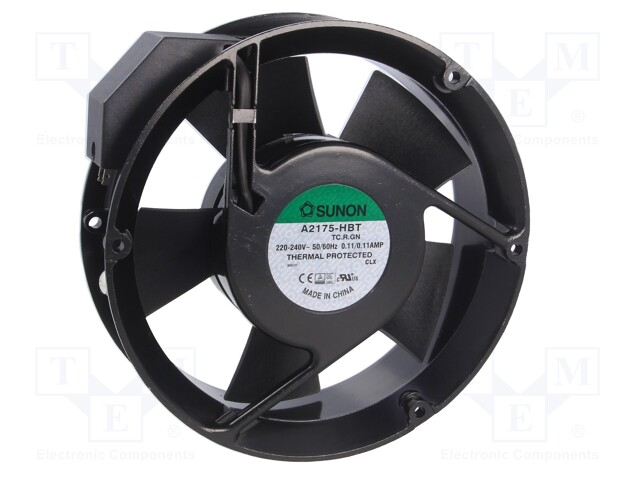

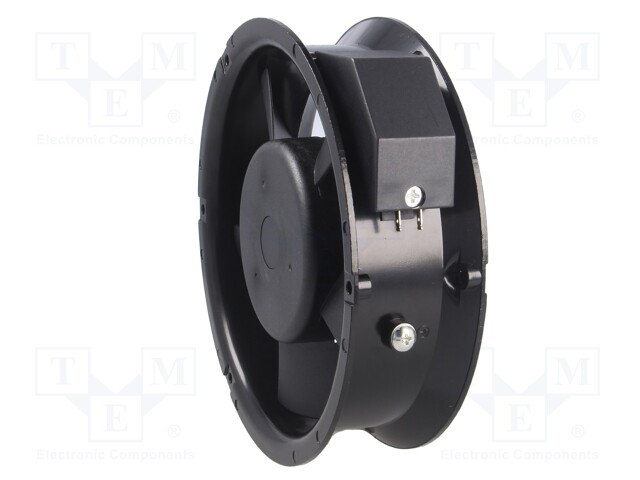

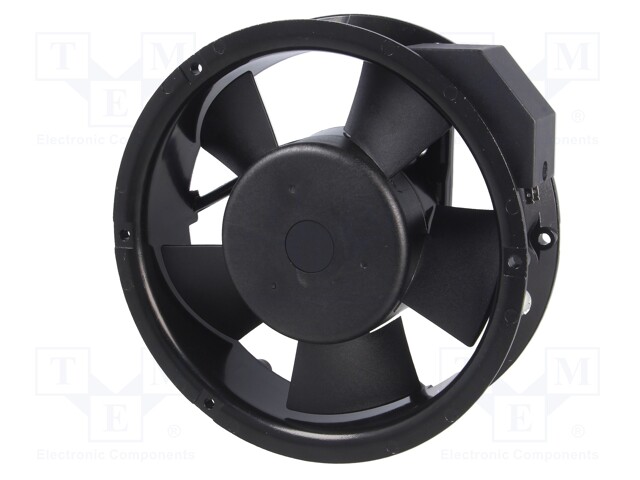

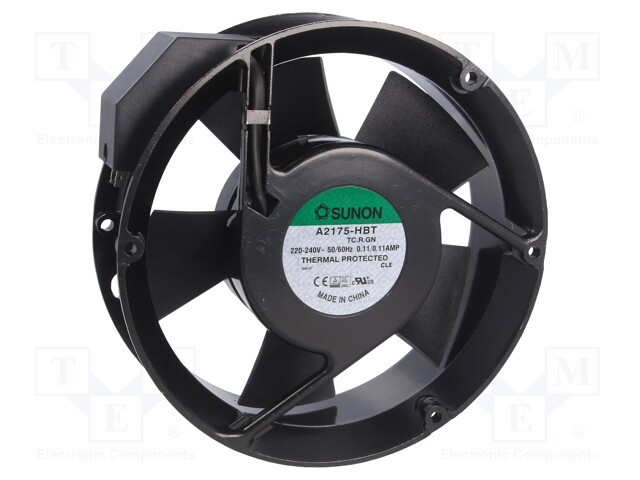

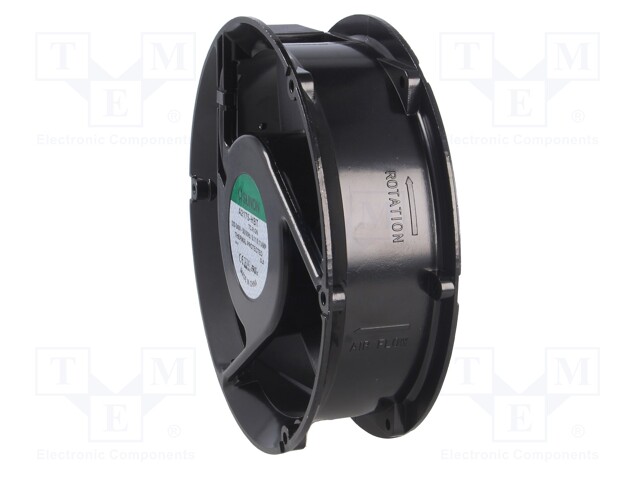

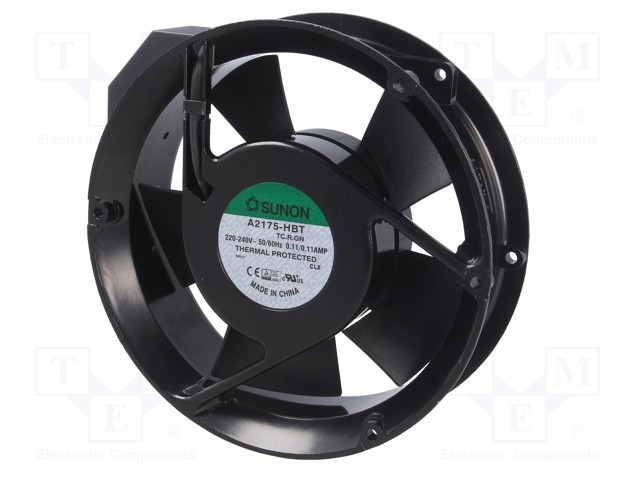

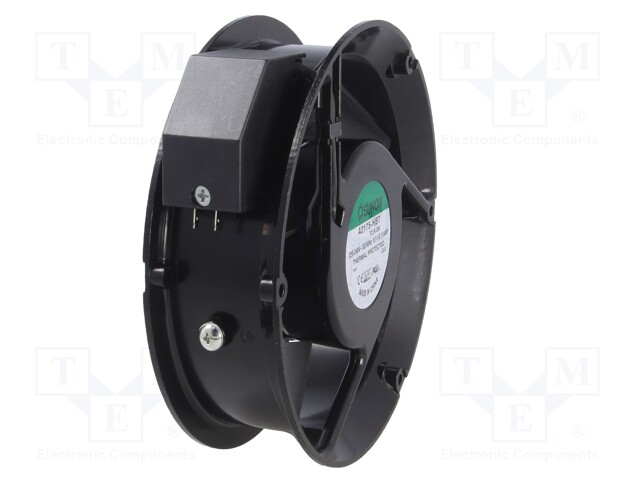

Fan: AC; axial; 230VAC; Ø171x51mm; 345m3/h; 51dBA; ball bearing

    Kordarv: 1.0
    Minimum quantity: 1.0
    Tootekood: A2175HBT-TC.R.GN
    Tootja: SUNON
    Tootja tootekood: A2175HBT-TC.R.GN
    • Supply voltage
    • Operating temperature
    • Enclosure material
    • Leads
    • Flammability rating
    • Current rating
    • Frequency
    • Fan efficiency
    • Power consumption
    • Rotational rate/speed
    • Fan motor
    • Fan dimensions
    • Kind of Bearing
    • Min. insulation resistance
    • Impeller material
    • Kind of fan
    • Type of fan
    • Static pressure
    • Noise level

    63,00 € 63,00 € (KM-TA) 63.0 EUR

    63,00 €

    Seda kombinatsiooni ei eksisteeri.

    Lisa ostukorvi

    Product downloads

    Spetsifikatsioon tootele Fan: AC; axial; 230VAC; Ø171x51mm; 345m3/h; 51dBA; ball bearing

    Supply voltage 230V AC
    Operating temperature -10...70°C
    Enclosure material aluminium
    Leads connectors
    Flammability rating UL94V-0
    Current rating 110mA
    Frequency 50Hz
    Fan efficiency 345m<sup>3</sup>/h
    Power consumption 25W
    Rotational rate/speed 2800rpm
    Fan motor Alveolate type motor with running capacitor
    Fan dimensions Ø171x51mm
    Kind of Bearing ball bearing
    Min. insulation resistance 500MΩ
    Impeller material thermoplastic
    Kind of fan axial
    Type of fan AC
    Static pressure 15.74mm H<sub>2</sub>O
    Noise level 51dBA
