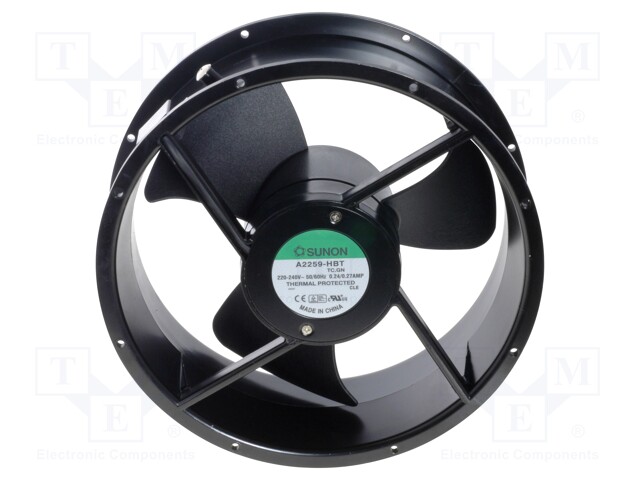

Fan: AC; axial; 230VAC; Ø254x89mm; 1444(±10%)m3/h; 57dBA; 2100rpm

    Kordarv: 1.0
    Minimum quantity: 1.0
    Tootekood: A2259HBT.TC.GN
    Tootja: SUNON
    Tootja tootekood: A2259HBT.TC.GN
    • Supply voltage
    • Operating temperature
    • Enclosure material
    • Leads
    • Flammability rating
    • Current rating
    • Frequency
    • Power consumption
    • Rotational rate/speed
    • Fan motor
    • Fan dimensions
    • Kind of Bearing
    • Min. insulation resistance
    • Impeller material
    • Kind of fan
    • Type of fan
    • Static pressure
    • Noise level

    114,80 € 114,80 € (KM-TA) 114.8 EUR

    114,80 €

    Seda kombinatsiooni ei eksisteeri.

    Lisa ostukorvi

    Product downloads

    Spetsifikatsioon tootele Fan: AC; axial; 230VAC; Ø254x89mm; 1444(±10%)m3/h; 57dBA; 2100rpm

    Supply voltage 230V AC
    Operating temperature -10...70°C
    Enclosure material aluminium
    Leads connectors
    Flammability rating UL94V-0
    Current rating 240mA
    Frequency 50Hz
    Power consumption 56W
    Rotational rate/speed 2100rpm
    Fan motor Alveolate type motor with running capacitor

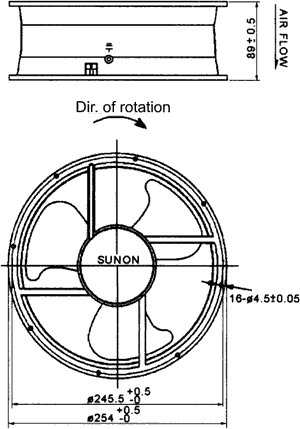

    Fan dimensions Ø254x89mm
    Kind of Bearing ball bearing
    Min. insulation resistance 500MΩ
    Impeller material thermoplastic
    Kind of fan axial
    Type of fan AC
    Static pressure 10mm H<sub>2</sub>O
    Noise level 57dBA
