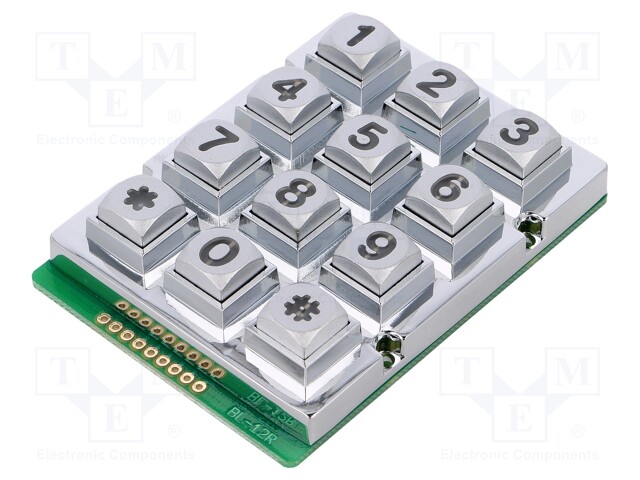

Keypad: metal; No.of butt: 12; LED; metal; 200mΩ; 1.2N; 20mA; W: 56mm

    Kordarv: 1.0
    Minimum quantity: 100.0
    Tootekood: AK-207-N-SSL-WP-MM-GR
    Tootja: ACCORD
    Tootja tootekood: AK-207-N-SSL-WP-MM-GR
    • Max. operating current
    • Operating temperature
    • IP rating
    • IP rating
    • Material
    • Max. contact resistance
    • Width
    • Height
    • Max. operating voltage
    • Mechanical durability
    • Number of buttons
    • Backlight colour
    • Illumination
    • Key stroke
    • Operating Force
    • Illumination voltage
    • Type of keypad
    • Keypads features
    • Kind of keypad
    • Keypad colour

    32,54 € 32,54 € (KM-TA) 32.54 EUR

    32,54 €

    Seda kombinatsiooni ei eksisteeri.

    Lisa ostukorvi

    Product downloads

    Spetsifikatsioon tootele Keypad: metal; No.of butt: 12; LED; metal; 200mΩ; 1.2N; 20mA; W: 56mm

    Max. operating current 20mA
    Operating temperature -20...60°C
    IP rating IP65, IP67
    Material metal
    Max. contact resistance 200mΩ
    Width 56mm
    Height 76mm
    Max. operating voltage 24V DC
    Mechanical durability 2000000cycles
    Number of buttons 12
    Backlight colour green
    Illumination LED
    Key stroke 2mm
    Operating Force 1.2N
    Illumination voltage 2.1V
    Type of keypad metal
    Keypads features sealed
    Kind of keypad numeric
    Keypad colour silver
