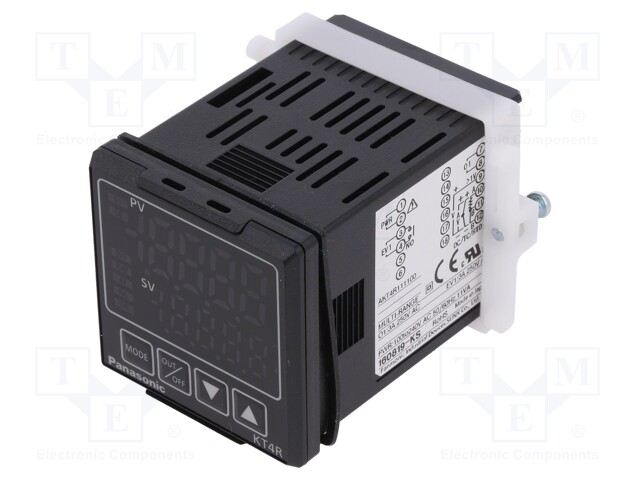

Module: regulator; temperature; SPST-NO; OUT 2: SPST-NO; on panel
Kordarv:
1.0
Minimum quantity:
1.0
Tootekood:
AKT4R1111001
Tootja: PANASONIC
Tootja tootekood: AKT4R1111001
Product downloads
Spetsifikatsioon tootele Module: regulator; temperature; SPST-NO; OUT 2: SPST-NO; on panel
| Mounting | on panel |
| Supply voltage | 100...240V AC |
| Operating temperature | -10...55°C |
| IP rating | IP66 (from the front) |
| Interface | RS485 |
| Mounting hole diameter | 45x45mm |
| Body dimensions | 48x48x73.4mm |
| Kind of display used | 2x LED |
| Additional functions | LED status indicator |
| Kind of input 1 | 0...10V, 0...1V, 0...20mA, 0...5V, 1...5V, 4...20mA |
| Kind of temperature sensor | JPt100, Pt100, thermocouple B, thermocouple E, thermocouple J, thermocouple K, thermocouple N, thermocouple PLII, thermocouple R, thermocouple S, thermocouple T, thermocouple W |
| Controlled parameter | temperature |
| Kind of output 1 | SPST-NO |
| The programming method | foil keypad |
| Kind of output 2 | SPST-NO |
| Input 1 properties | analogue voltage, current analog, RTD, thermocouple |
| Display height 1 | 12.4mm |
| Regulation for output 1 | ON-OFF, PD, PI, PID |
| Display 2 height | 8.8mm |
