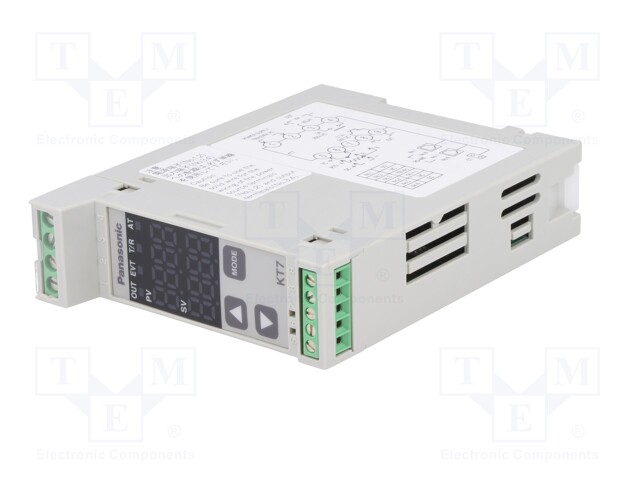

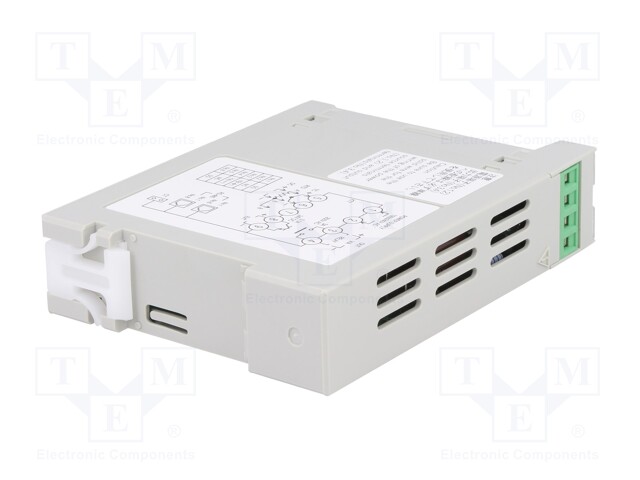

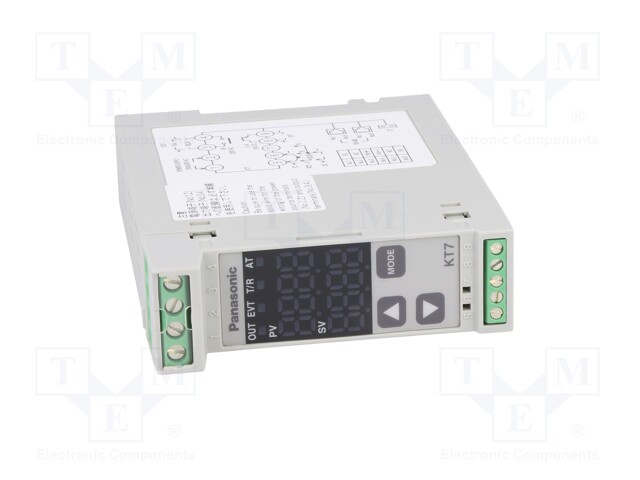

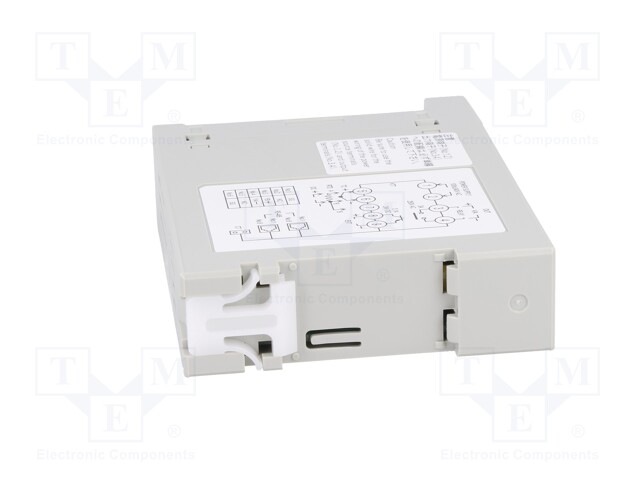

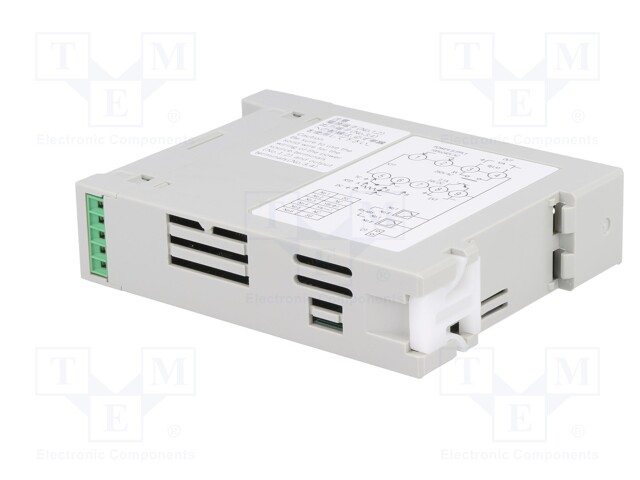

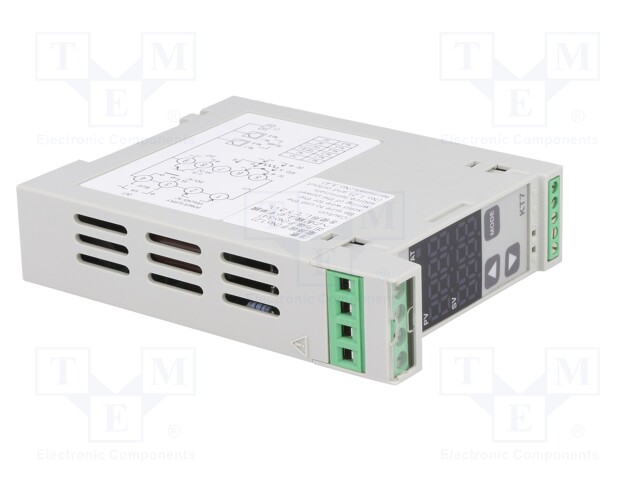

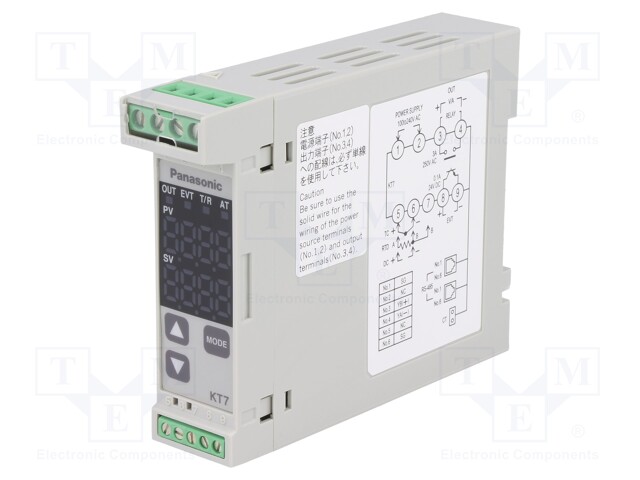

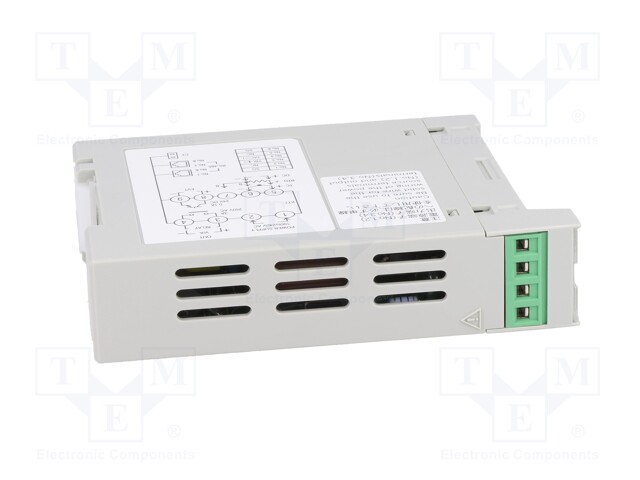

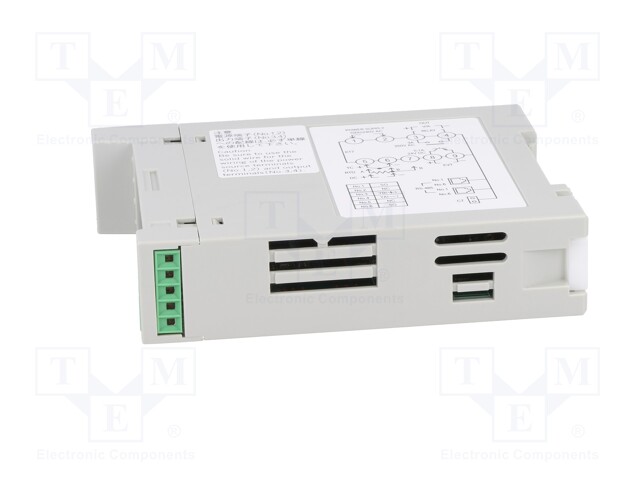

Module: regulator; temperature; SSR; OUT 2: OC; on panel; -10÷55°C
Kordarv:
1.0
Minimum quantity:
1.0
Tootekood:
AKT7112100J
Tootja: PANASONIC
Tootja tootekood: AKT7112100J
Product downloads
Spetsifikatsioon tootele Module: regulator; temperature; SSR; OUT 2: OC; on panel; -10÷55°C
| Mounting | on panel |
| Supply voltage | 100...240V AC |
| Operating temperature | -10...55°C |
| IP rating | IP66 (from the front) |
| Body dimensions | 22.5x75x100mm |
| Kind of display used | 2x LED |
| Additional functions | LED status indicator |
| Kind of input 1 | 0...10V, 0...1V, 0...20mA, 1...5V, 4...20mA |
| Kind of temperature sensor | JPt100, Pt100, thermocouple B, thermocouple E, thermocouple J, thermocouple K, thermocouple N, thermocouple PLII, thermocouple R, thermocouple S, thermocouple T, thermocouple W |
| Controlled parameter | temperature |
| Kind of output 1 | SSR |
| The programming method | foil keypad |
| Kind of output 2 | OC |
| Input 1 properties | analogue voltage, current analog, RTD, thermocouple |
| Display height 1 | 7.4mm |
| Regulation for output 1 | ON-OFF, PD, PI, PID |
| Display 2 height | 7.4mm |
