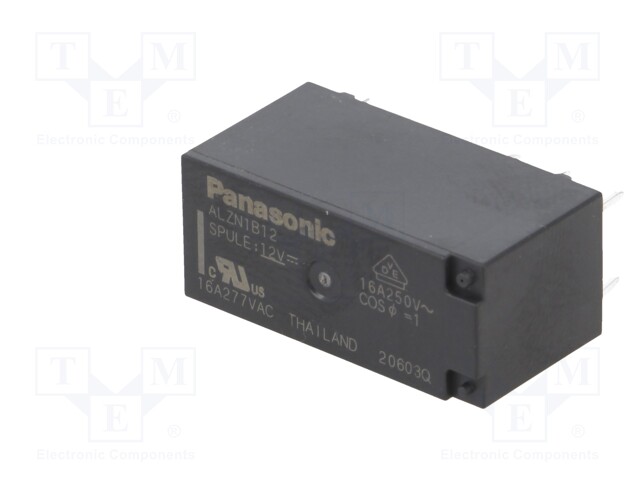

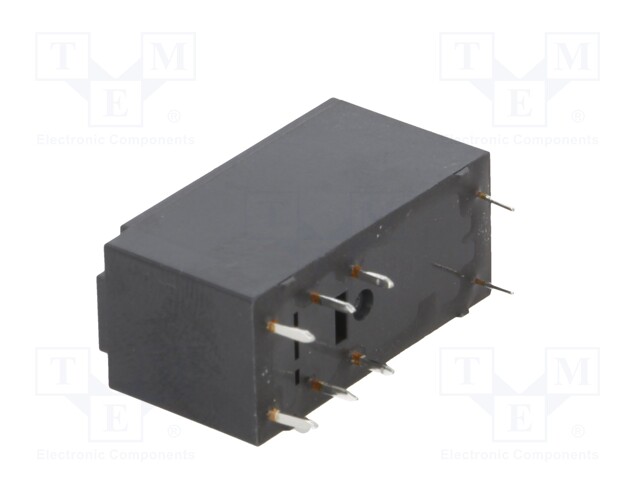

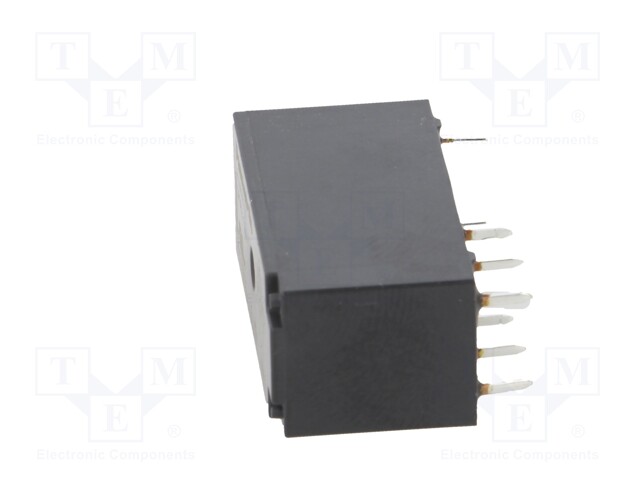

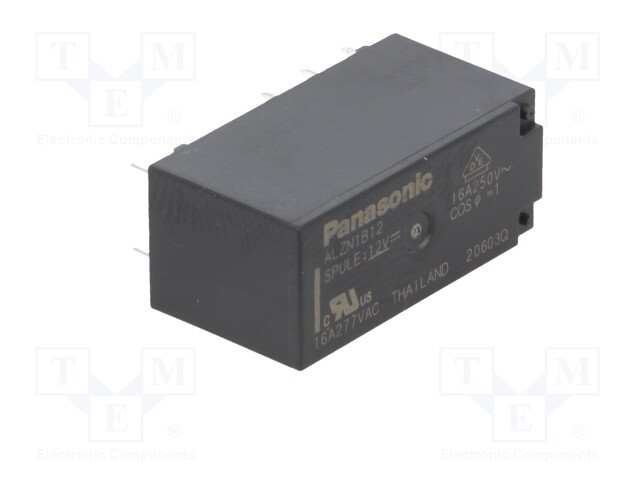

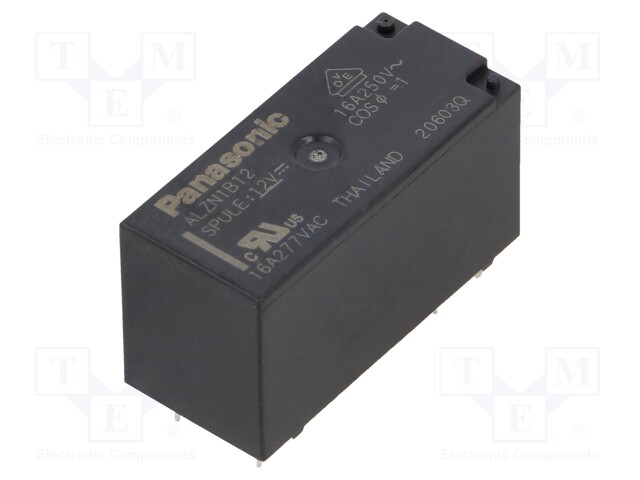

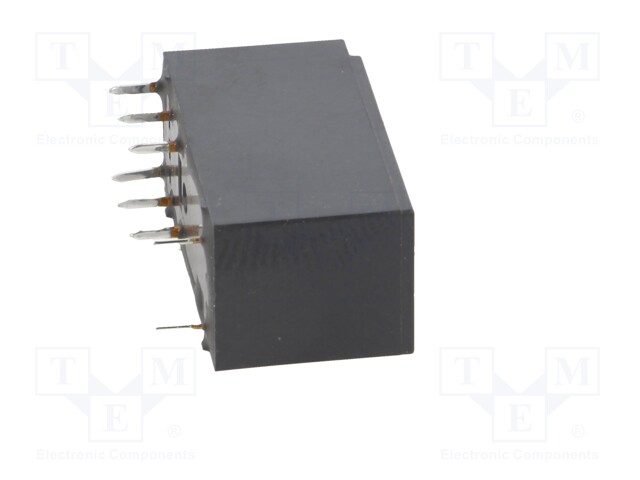

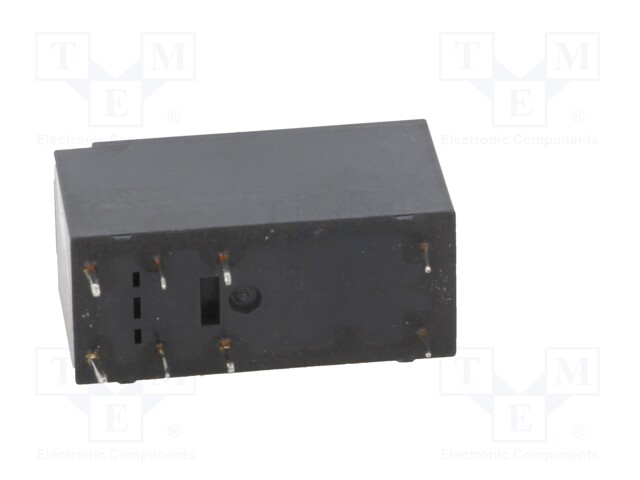

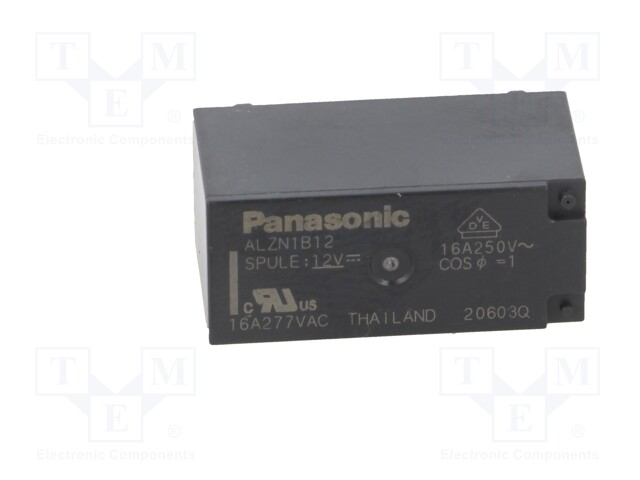

Power Relay, SPDT, 12 VDC, 16 A, ALZN Series, Through Hole, Non Latching

    Kordarv: 500.0
    Minimum quantity: 500.0
    Tootekood: ALZN1B12W
    Tootja: PANASONIC
    Tootja tootekood: ALZN1B12W
    • Mounting
    • Operating temperature
    • Contact material
    • Switched voltage
    • Coil resistance
    • Rated coil voltage
    • Contacts configuration
    • AC contacts rating @R
    • Contact current max.
    • Relay variant
    • Type of relay
    • Coil voltage min.
    • Coil power consumption
    • Coil current

    2,49 € 2,49 € (KM-TA) 2.49 EUR

    2,49 €

    Seda kombinatsiooni ei eksisteeri.

    Lisa ostukorvi

    Product downloads

    Spetsifikatsioon tootele Power Relay, SPDT, 12 VDC, 16 A, ALZN Series, Through Hole, Non Latching

    Mounting PCB
    Operating temperature -40...85°C
    Contact material AgSnO<sub>2</sub>
    Switched voltage ≤ 250V AC
    Coil resistance 360Ω
    Rated coil voltage 12V DC
    Contacts configuration SPDT
    AC contacts rating @R 16A / 250V AC
    Contact current max. 16A
    Relay variant miniature
    Type of relay electromagnetic
    Coil voltage min. 8.4V DC
    Coil power consumption 400mW
    Coil current 33.3mA
