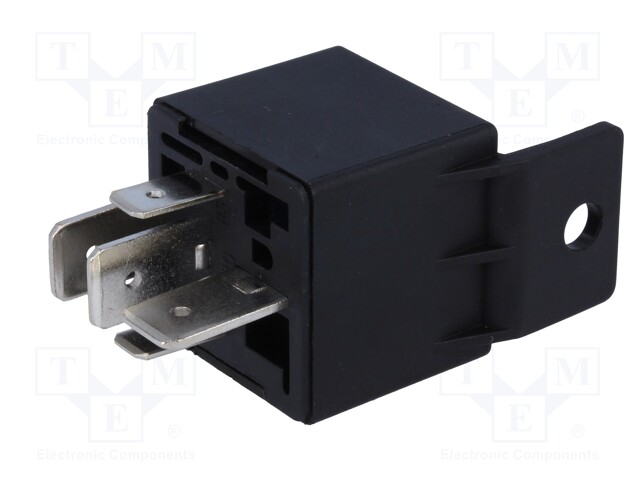

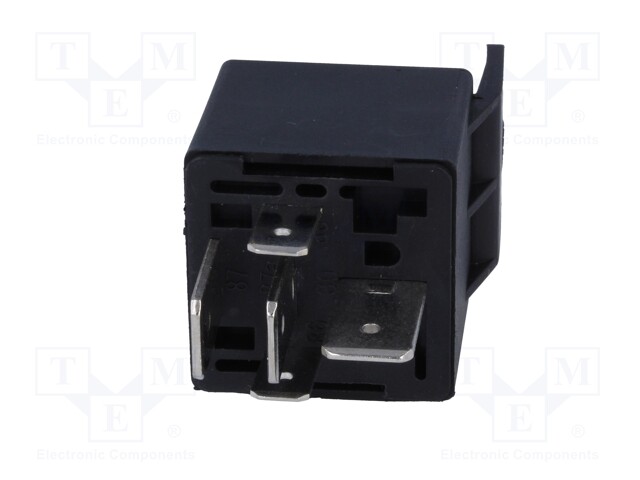

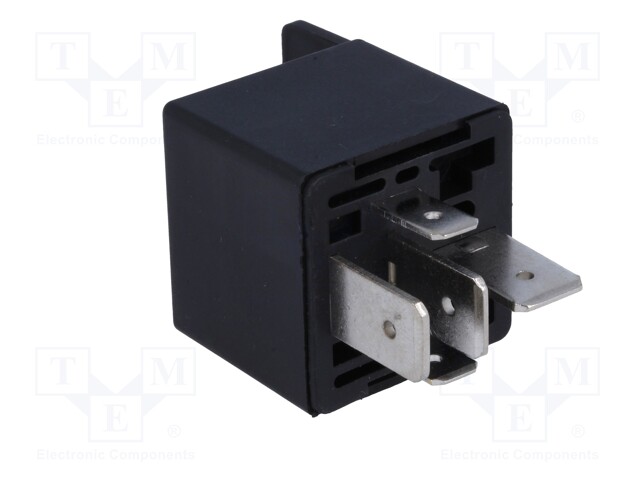

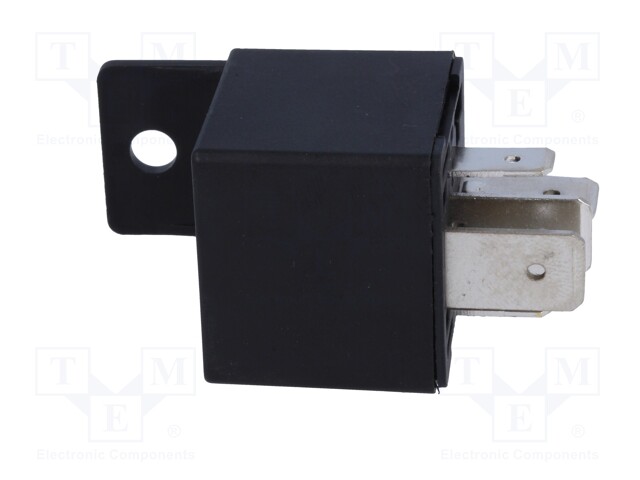

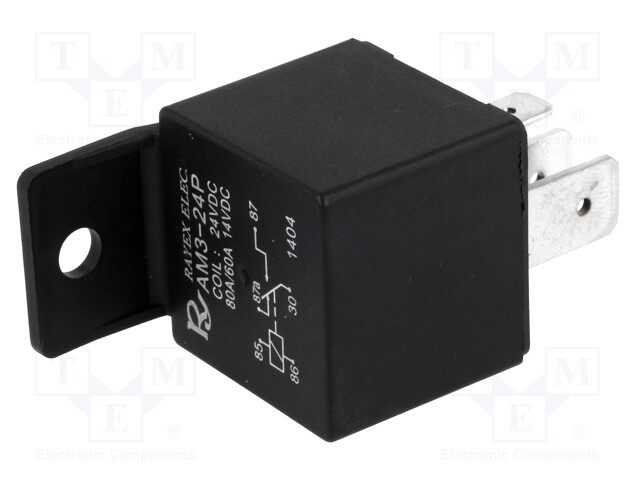

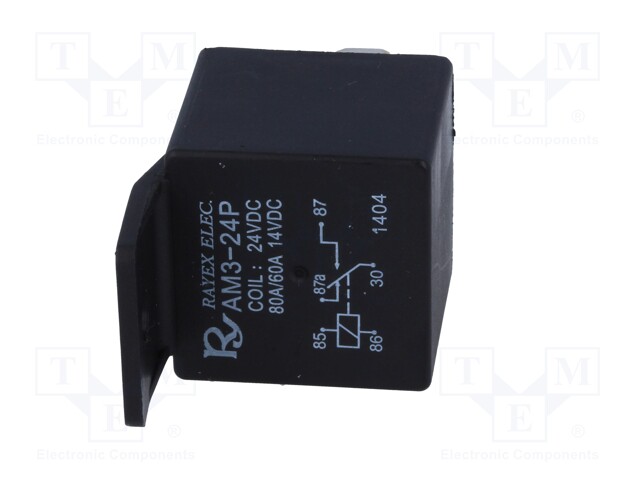

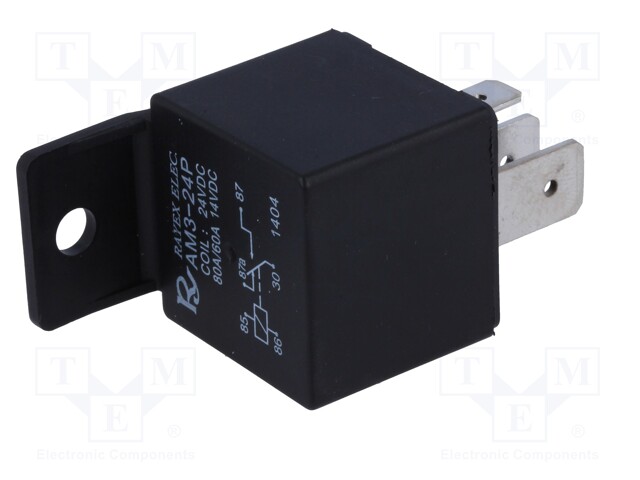

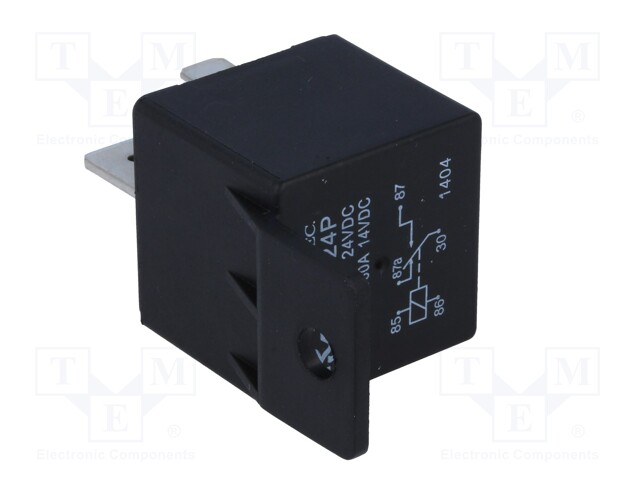

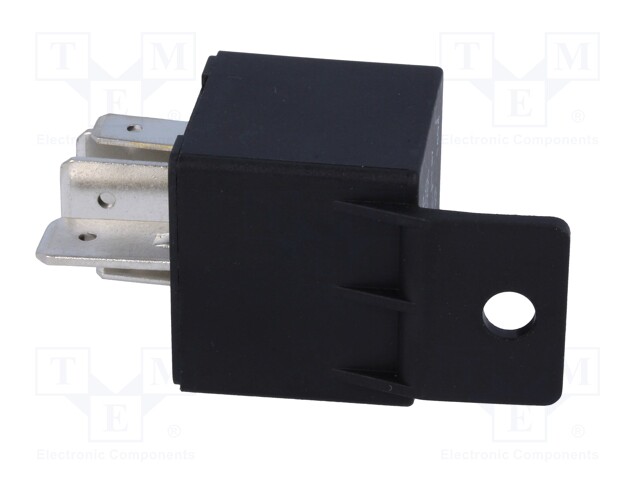

Relay: electromagnetic; SPDT; Ucoil: 24VDC; 80A; automotive; 1.8W

    Kordarv: 1.0
    Minimum quantity: 1.0
    Tootekood: AM3-24P
    Tootja: RAYEX ELECTRONICS
    Tootja tootekood: AM3-24P
    • Mounting
    • Operating temperature
    • Leads
    • Contact material
    • Body dimensions
    • Coil resistance
    • Rated coil voltage
    • Contacts configuration
    • DC contacts rating @R
    • Contact resistance
    • Contact current max.
    • Relay variant
    • Type of relay
    • Coil power consumption
    • Operate time
    • Release time
    • Coil current

    6,03 € 6,03 € (KM-TA) 6.03 EUR

    6,03 €

    Seda kombinatsiooni ei eksisteeri.

    Lisa ostukorvi

    Product downloads

    Spetsifikatsioon tootele Relay: electromagnetic; SPDT; Ucoil: 24VDC; 80A; automotive; 1.8W

    Mounting on panel
    Operating temperature -40...85°C
    Leads connectors
    Contact material AgCdO

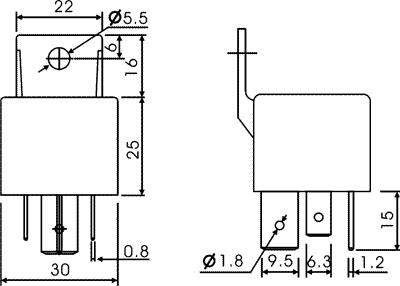

    Body dimensions 28x28x25mm
    Coil resistance 288Ω
    Rated coil voltage 24V DC
    Contacts configuration SPDT
    DC contacts rating @R 60A / 14V DC
    Contact resistance 50mΩ
    Contact current max. 80A
    Relay variant automotive
    Type of relay electromagnetic
    Coil power consumption 1.8W
    Operate time 7ms
    Release time 5ms
    Coil current 83mA
