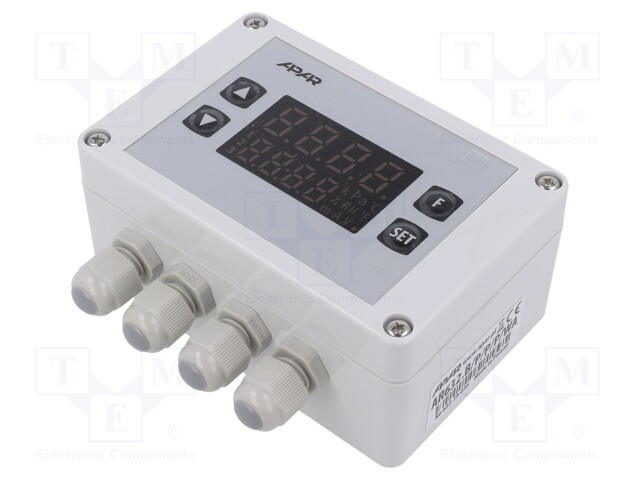

Module: regulator; pressure,speed,temperature,humidity; SPDT
Kordarv:
1.0
Minimum quantity:
1.0
Tootekood:
AR632BPPPWA
Tootja: APAR
Tootja tootekood: AR632.B/P/P/P/WA
Product downloads
Spetsifikatsioon tootele Module: regulator; pressure,speed,temperature,humidity; SPDT
| Mounting | for wall mounting |
| Operating temperature | 0...50°C |
| IP rating | IP65 (from the front) |
| Kind of display used | 2x LED |
| Additional functions | error messages on the LED display, temperature compensation of thermocouple cold ends |
| Kind of input 1 | 0...2,5kΩ, 0...10V DC, 0...20mA, 0...60mV, 4...20mA, universal |
| Kind of temperature sensor | Ni100, Pt100, Pt500, Pt1000, thermocouple B, thermocouple E, thermocouple J, thermocouple K, thermocouple N, thermocouple R, thermocouple S, thermocouple T |
| Controlled parameter | humidity, pressure, speed, temperature |
| Kind of output 1 | SPDT |
| The programming method | foil keypad |
| Kind of output 2 | SPST-NO |
| Kind of output 3 | SPST-NO |
| Kind of output 4 | 0/4...20mA, SPST-NO |
| Input 1 properties | RTD, thermocouple |
| Display height 1 | 14mm |
| Regulation for output 1 | AUTOTUNING, ON-OFF, ON-OFF with hysteresis, PID |
| Regulation for output 2 | ON-OFF, ON-OFF with hysteresis |
| Display 2 height | 10mm |
