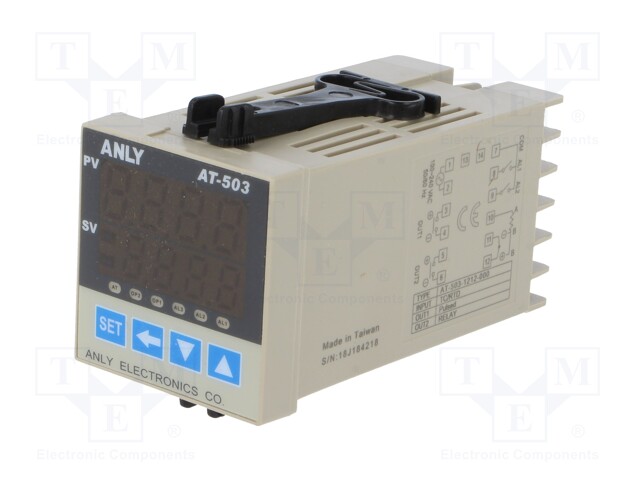

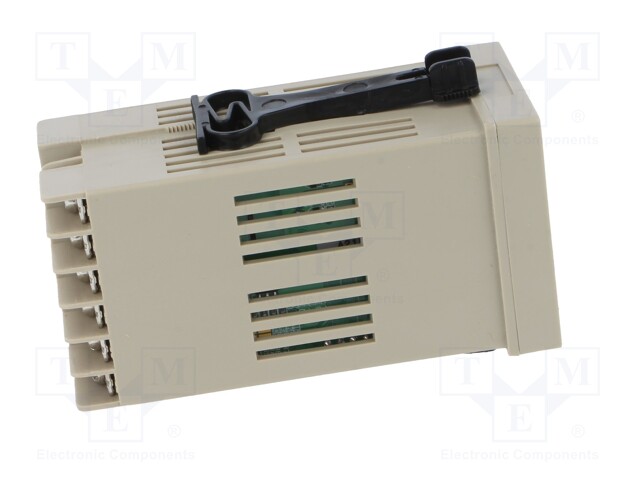

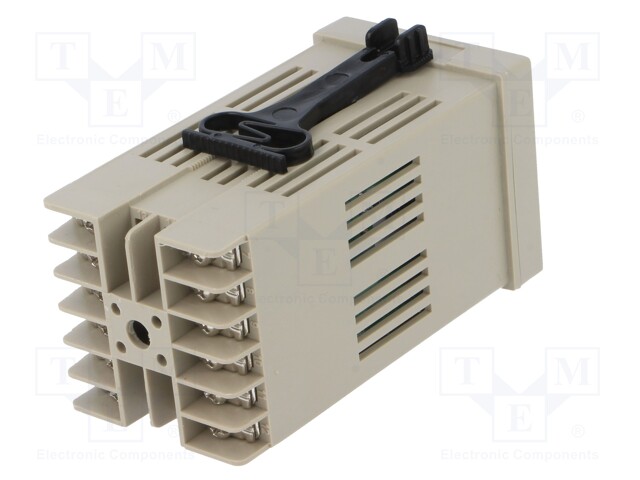

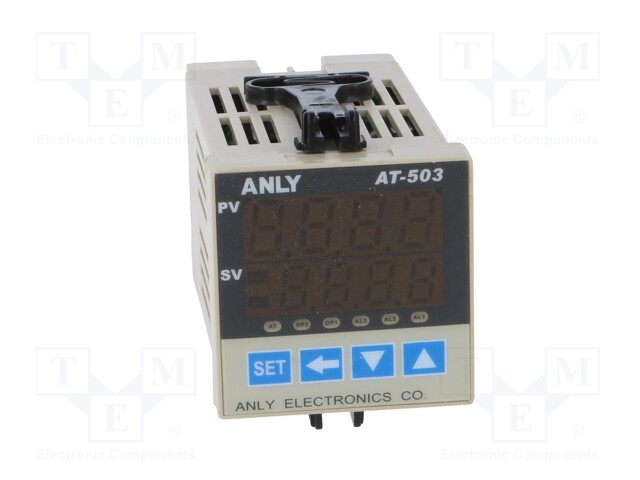

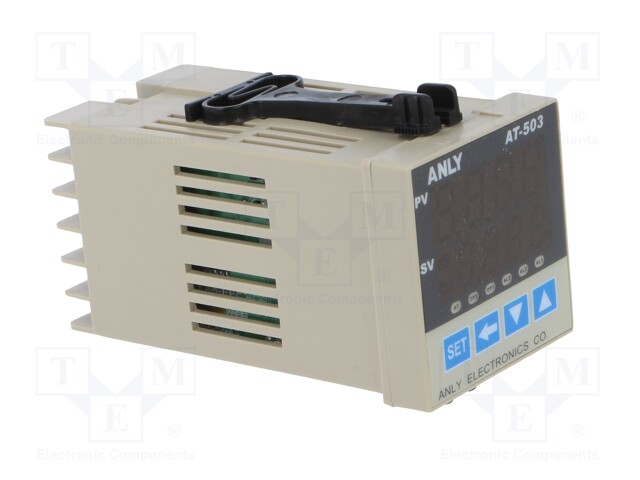

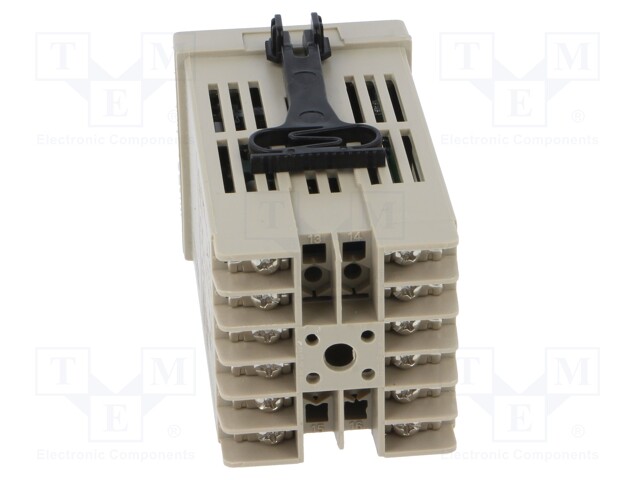

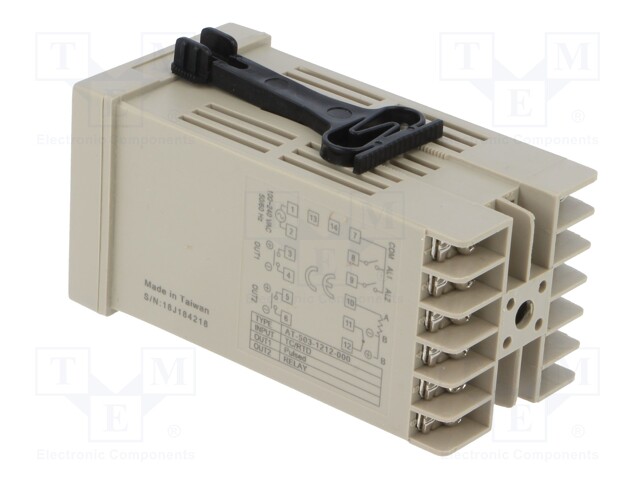

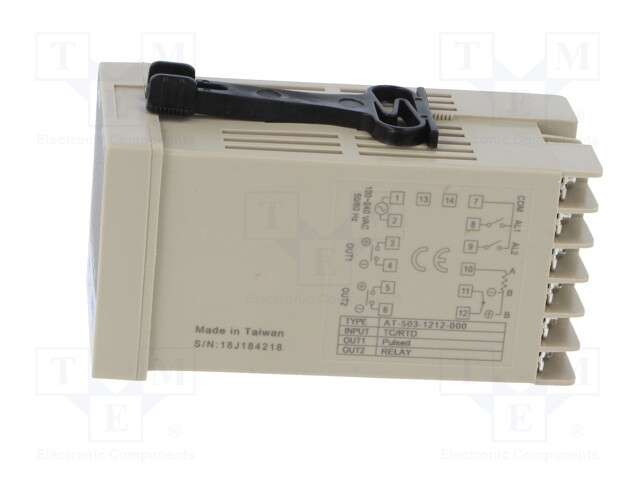

Module: regulator; temperature; OUT 2: SPST-NO; panel; 90÷260VAC

    Kordarv: 1.0
    Minimum quantity: 1.0
    Tootekood: AT-503-1212-000
    Tootja: ANLY ELECTRONICS
    Tootja tootekood: AT-503-1212-000
    • Mounting
    • Supply voltage
    • Operating temperature
    • IP rating
    • Mounting hole diameter
    • Body dimensions
    • Kind of display used
    • Additional functions
    • Additional functions
    • Additional functions
    • Additional functions
    • Kind of temperature sensor
    • Kind of temperature sensor
    • Kind of temperature sensor
    • Kind of temperature sensor
    • Kind of temperature sensor
    • Kind of temperature sensor
    • Kind of temperature sensor
    • Kind of temperature sensor
    • Kind of temperature sensor
    • Kind of temperature sensor
    • Controlled parameter
    • The programming method
    • Kind of output 2
    • Input 1 properties
    • Input 1 properties
    • Display height 1
    • Regulation for output 1
    • Regulation for output 1
    • Regulation for output 1
    • Regulation for output 1
    • Regulation for output 1
    • Regulation for output 1
    • Display 2 height

    0,00 € 0,00 € (KM-TA) 0.0 EUR

    0,00 €

    Seda kombinatsiooni ei eksisteeri.

    Lisa ostukorvi

    Spetsifikatsioon tootele Module: regulator; temperature; OUT 2: SPST-NO; panel; 90÷260VAC

    Mounting on panel
    Supply voltage 90...260V AC
    Operating temperature -10...50°C
    IP rating IP20
    Mounting hole diameter 46x46mm
    Body dimensions 48x48x83mm
    Kind of display used 2x LED
    Additional functions heating or cooling control, LED status indicator, non-volatile EEPROM memory, scroll menu
    Kind of temperature sensor JPt100, Pt100, thermocouple B, thermocouple E, thermocouple J, thermocouple K, thermocouple N, thermocouple R, thermocouple S, thermocouple T
    Controlled parameter temperature
    The programming method foil keypad
    Kind of output 2 SPST-NO
    Input 1 properties RTD, thermocouple
    Display height 1 10mm
    Regulation for output 1 AUTOTUNING, DEAD BAND, ON-OFF, P, PI, PID
    Display 2 height 7mm
