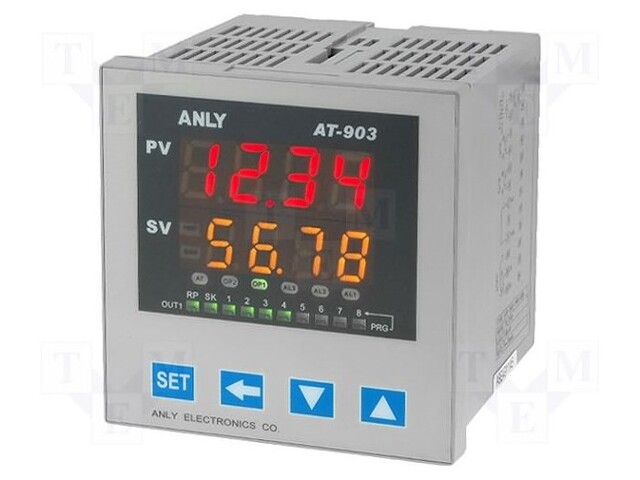

Module: regulator; temperature; SPST-NO; OUT 2: 0÷10V; SPST-NO
Kordarv:
1.0
Minimum quantity:
1.0
Tootekood:
AT-903-1161-000
Tootja: ANLY ELECTRONICS
Tootja tootekood: AT-903-1161-000
Product downloads
Spetsifikatsioon tootele Module: regulator; temperature; SPST-NO; OUT 2: 0÷10V; SPST-NO
| Mounting | on panel |
| Supply voltage | 90...260V AC |
| Operating temperature | -10...50°C |
| IP rating | IP20 |
| Mounting hole diameter | 91x91mm |
| Body dimensions | 96x96x83mm |
| Kind of display used | 2x LED |
| Additional functions | heating or cooling control, led bar, LED status indicator, non-volatile EEPROM memory, scroll menu |
| Kind of temperature sensor | JPt100, Pt100, thermocouple B, thermocouple E, thermocouple J, thermocouple K, thermocouple N, thermocouple R, thermocouple S, thermocouple T |
| Controlled parameter | temperature |
| Kind of output 1 | SPST-NO |
| The programming method | foil keypad |
| Kind of output 2 | 0...10V |
| Kind of output 3 | SPST-NO |
| Input 1 properties | RTD, thermocouple |
| Display height 1 | 14mm |
| Regulation for output 1 | AUTOTUNING, DEAD BAND, ON-OFF, P, PI, PID |
| Display 2 height | 13mm |
