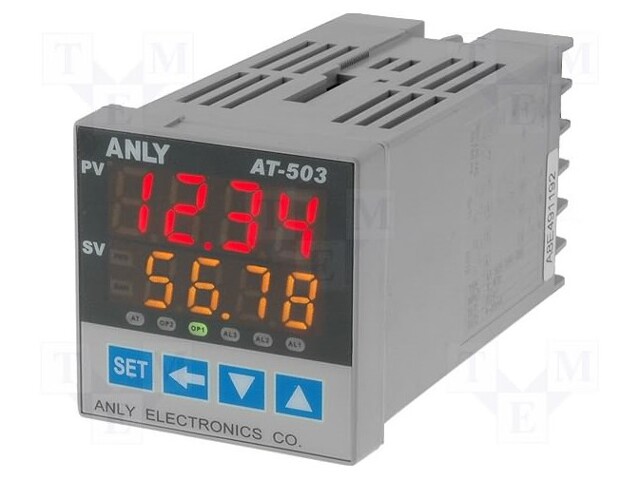

Module: regulator; temperature; SPST-NO; OUT 2: 4÷20mA; SPST-NO
Kordarv:
1.0
Minimum quantity:
1.0
Tootekood:
AT503-414-1000
Tootja: ANLY ELECTRONICS
Tootja tootekood: AT503-414-1000
Product downloads
Spetsifikatsioon tootele Module: regulator; temperature; SPST-NO; OUT 2: 4÷20mA; SPST-NO
| Mounting | on panel |
| Supply voltage | 90...260V AC |
| Operating temperature | -10...50°C |
| IP rating | IP20 |
| Mounting hole diameter | 46x46mm |
| Body dimensions | 48x48x83mm |
| Kind of display used | 2x LED |
| Additional functions | heating or cooling control, LED status indicator, non-volatile EEPROM memory, scroll menu |
| Kind of input 1 | 4...20mA |
| Controlled parameter | temperature |
| Kind of output 1 | SPST-NO |
| The programming method | foil keypad |
| Kind of output 2 | 4...20mA |
| Kind of output 3 | SPST-NO |
| Input 1 properties | current analog |
| Display height 1 | 10mm |
| Regulation for output 1 | AUTOTUNING, DEAD BAND, ON-OFF, P, PI, PID |
| Display 2 height | 7mm |
