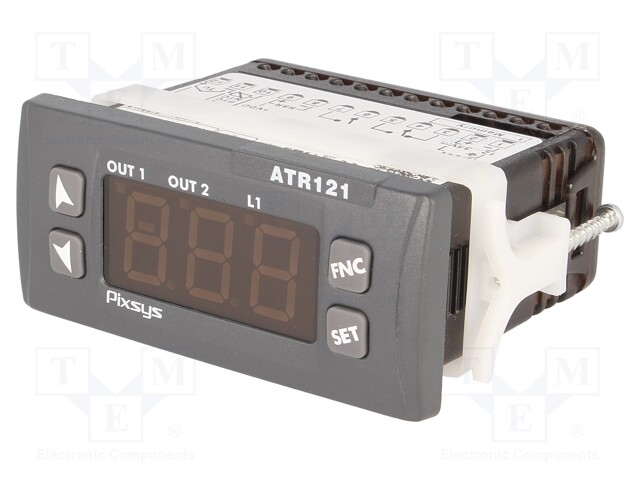

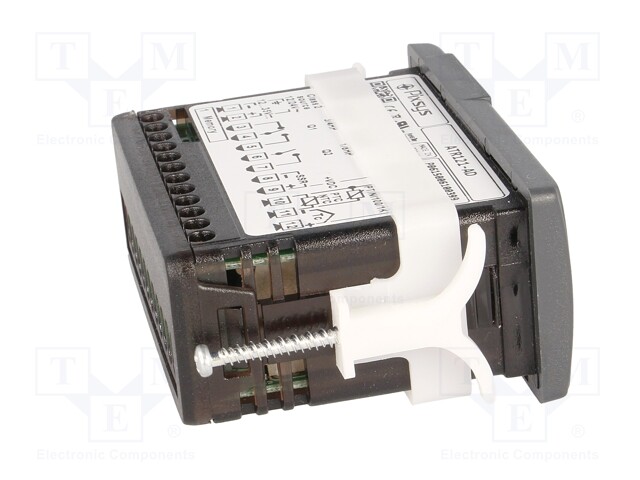

Module: regulator; temperature; SPDT; OUT 2: SPST-NO; SSR; panel
Kordarv:
1.0
Minimum quantity:
1.0
Tootekood:
ATR121-AD
Tootja: PIXSYS
Tootja tootekood: ATR121-AD
Product downloads
Spetsifikatsioon tootele Module: regulator; temperature; SPDT; OUT 2: SPST-NO; SSR; panel
| Mounting | on panel |
| Supply voltage | 12...24V AC, 12...35V DC |
| Operating temperature | 0...40°C |
| IP rating | IP54 |
| Mounting hole diameter | 70.5x28.5mm |
| Body dimensions | 77x35x53mm |
| Kind of display used | LED |
| Additional functions | one control input and one alarm input can be used simultaneously |
| Kind of input 1 | 0...10V DC, 0...150kΩ, 0...20mA, 0...6kΩ, 4...20mA, universal |
| Kind of temperature sensor | Ni100, NTC, Pt100, Pt1000, Pt500, PTC, thermocouple J, thermocouple K, thermocouple R, thermocouple S |
| Controlled parameter | temperature |
| Kind of output 1 | SPDT |
| The programming method | foil keypad |
| Kind of output 2 | SPST-NO |
| Kind of output 3 | SSR |
| Input 1 properties | analogue voltage, current analog, potentiometric, RTD, thermocouple |
| Display height 1 | 14mm |
| Regulation for output 1 | AUTOTUNING, ON-OFF, ON-OFF with hysteresis, PID |
