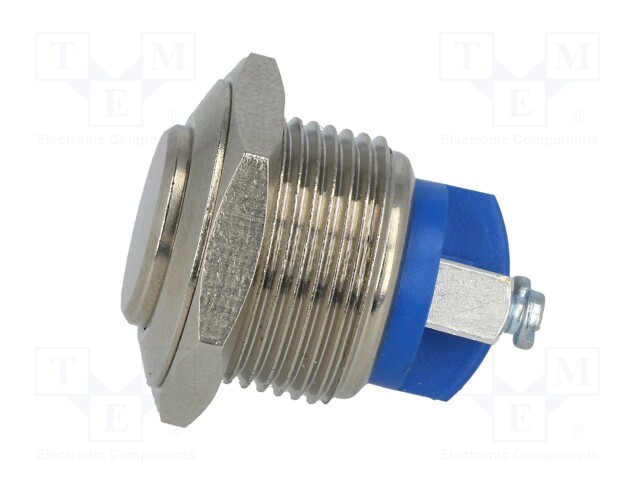

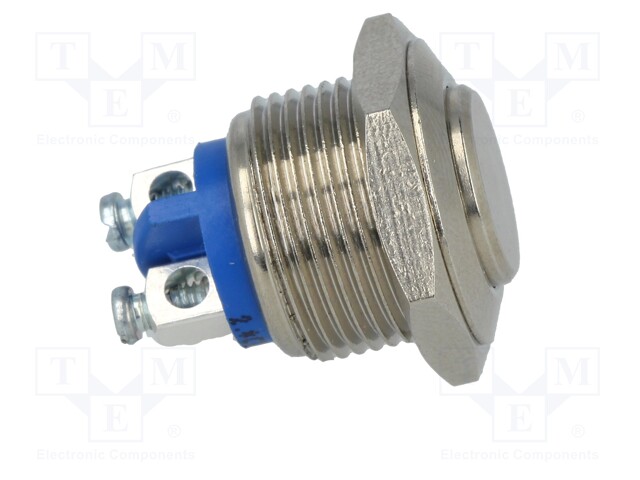

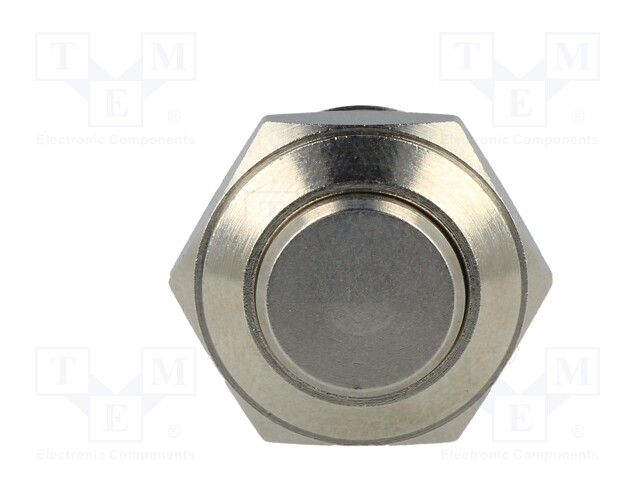

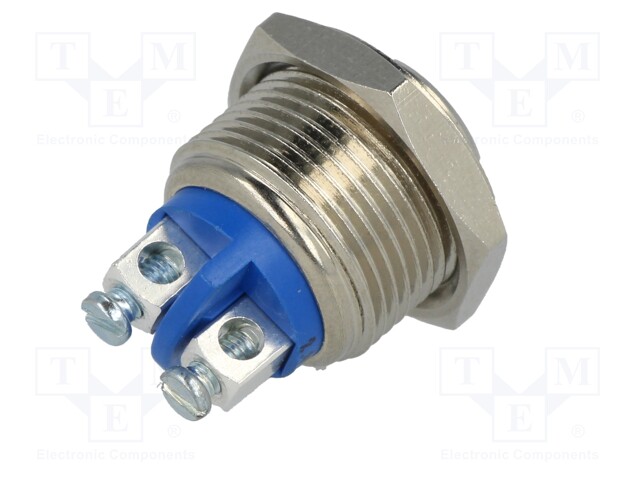

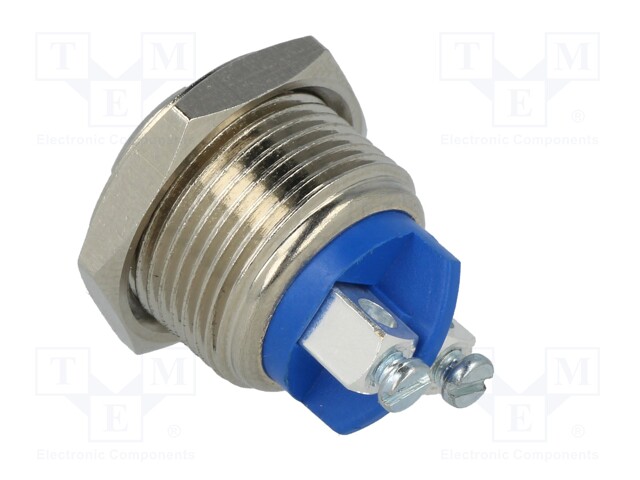

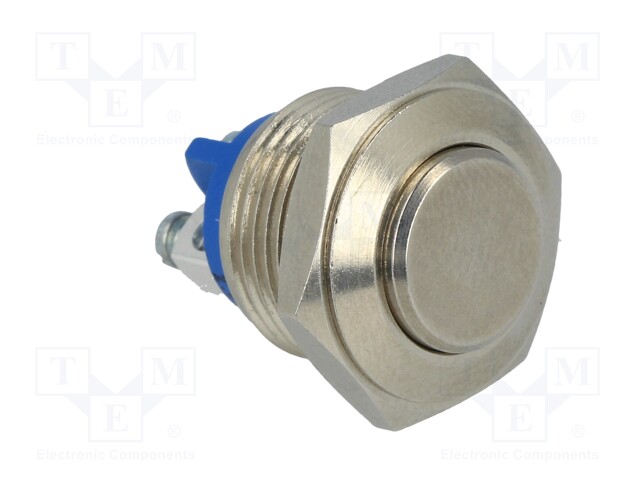

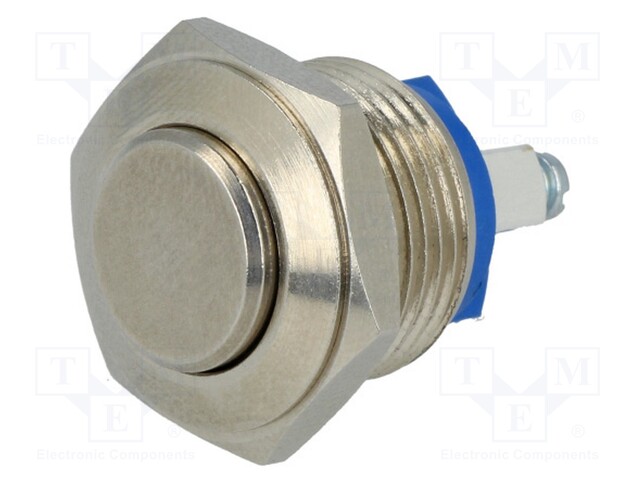

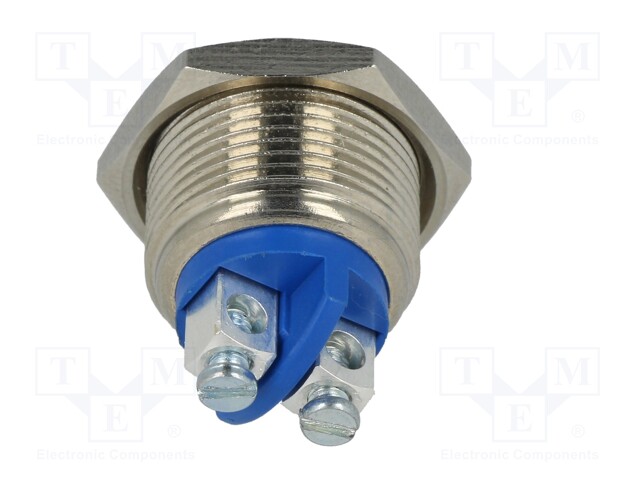

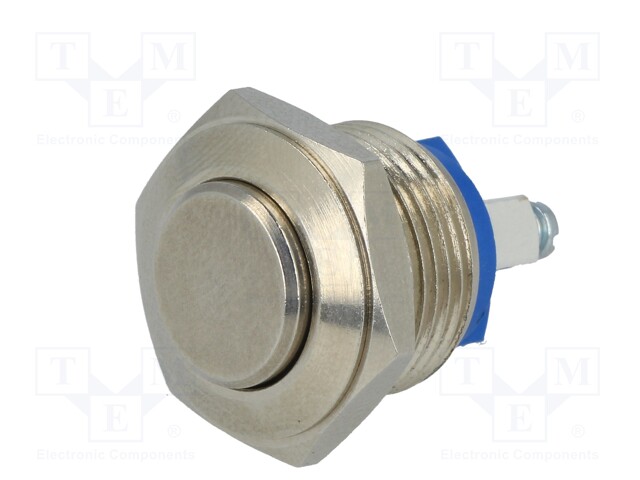

Switch: vandal resistant; Pos: 2; SPST-NO; 0.2A/48VAC; 0.1A/48VDC

    Kordarv: 1.0
    Minimum quantity: 1.0
    Tootekood: AV0630C900
    Tootja: APEM
    Tootja tootekood: AV0630C900
    • Operating temperature
    • IP rating
    • Type of switch
    • Contact plating
    • Number of positions
    • Leads
    • Contact material
    • Max. contact resistance
    • Body material
    • Mounting hole diameter
    • Body colour
    • Mechanical durability
    • Panel thickness
    • Plating material
    • Min. insulation resistance
    • Electrical life
    • Test voltage
    • Contacts configuration
    • DC contacts rating @R
    • AC contacts rating @R
    • Switching method
    • Stable positions number
    • Button shape

    15,64 € 15,64 € (KM-TA) 15.64 EUR

    15,64 €

    Seda kombinatsiooni ei eksisteeri.

    Lisa ostukorvi

    Product downloads

    Spetsifikatsioon tootele Switch: vandal resistant; Pos: 2; SPST-NO; 0.2A/48VAC; 0.1A/48VDC

    Operating temperature -20...55°C
    IP rating IP65
    Type of switch vandal resistant
    Contact plating silver plated
    Number of positions 2
    Leads screw terminals
    Contact material brass
    Max. contact resistance 50mΩ
    Body material brass

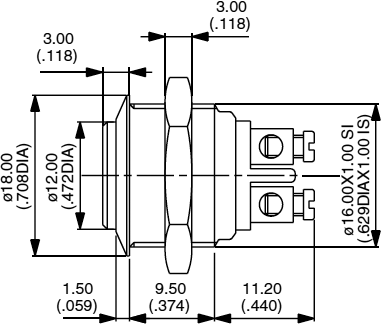

    Mounting hole diameter Ø16mm
    Body colour silver
    Mechanical durability 1000000cycles
    Panel thickness ≤ 11mm
    Plating material nickel
    Min. insulation resistance 1GΩ
    Electrical life 100000cycles
    Test voltage 2kV
    Contacts configuration SPST-NO
    DC contacts rating @R 100mA / 48V DC
    AC contacts rating @R 200mA / 48V AC
    Switching method OFF-(ON)
    Stable positions number 1
    Button shape prominent
