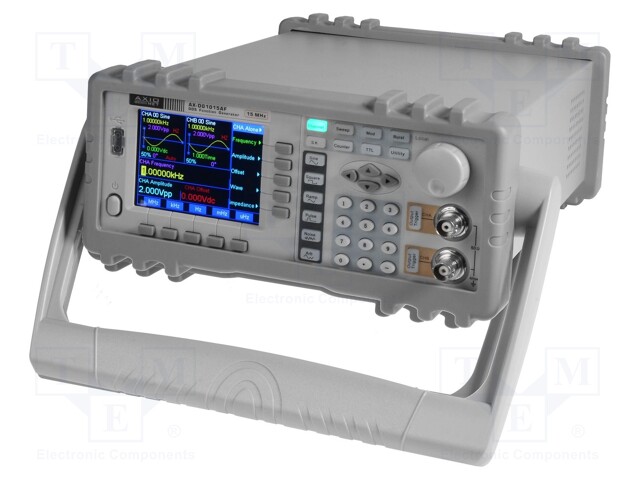

Generator: function; Band: ≤15MHz; LCD TFT 3,5"; Channels: 2
Kordarv:
1.0
Minimum quantity:
1.0
Tootekood:
AX-DG1015AF
Tootja: AXIOMET
Tootja tootekood: AX-DG1015AF
Product downloads
Spetsifikatsioon tootele Generator: function; Band: ≤15MHz; LCD TFT 3,5"; Channels: 2
| Supply voltage | 100...240V AC |
| Number of channels | 2 |
| Protection | against reverse polarity, anti-overload, anti-overvoltage, short circuit protection |
| Interface | RS232 |
| Dimensions | 415x295x195mm |
| Kind of display used | LCD TFT 3,5" |
| Kind of modulation | ASK, FM, FSK, PSK |
| Measuring instrument features | 32 built-in waveforms |
| Standard equipment | BNC cable, mains cable, RS232 cable, test lead |
| Output parameters | impedance: 50Ω |
| Sampling | 100Msps |
| Vertical resolution | 8bit |
| Waveform frequency range | 1µHz...15MHz (sinus waveform), 1µHz...1MHz (other waveforms), 1µHz...5MHz (rectangular waveform) |
| Waveforms | arbitrary, ramp, rectangular, sinus, triangle |
| Amplitude | value of amplitude Vpp<0,2V - actual offset value is 1% of set value, value of amplitude Vpp>2V - actual offset value is set value, value of amplitude Vpp 0,2...2V - actual offset value is 10 % of set value |
| Sweep mode | period: 100m...900s |
