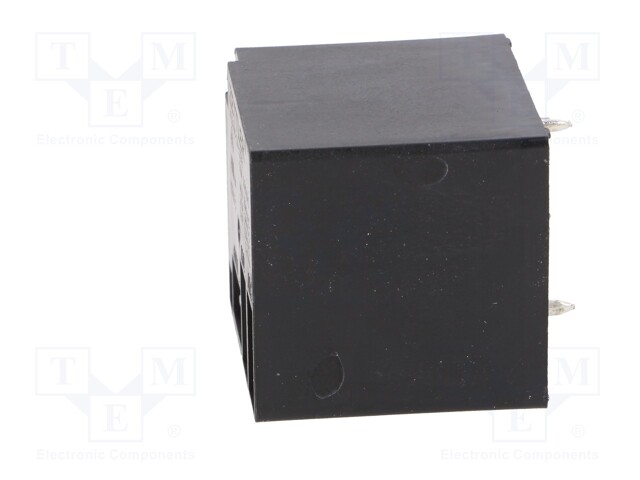

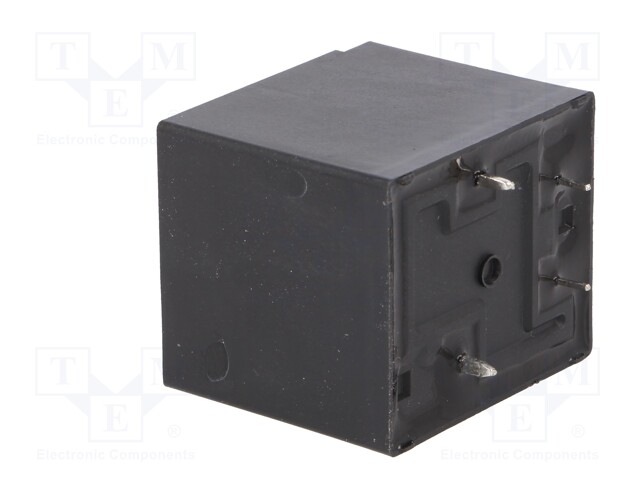

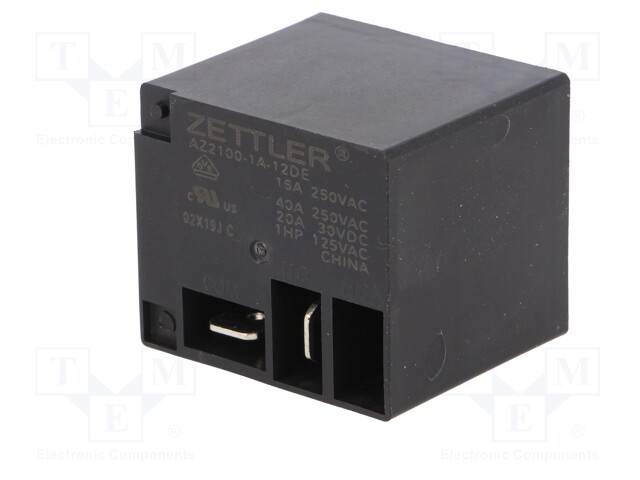

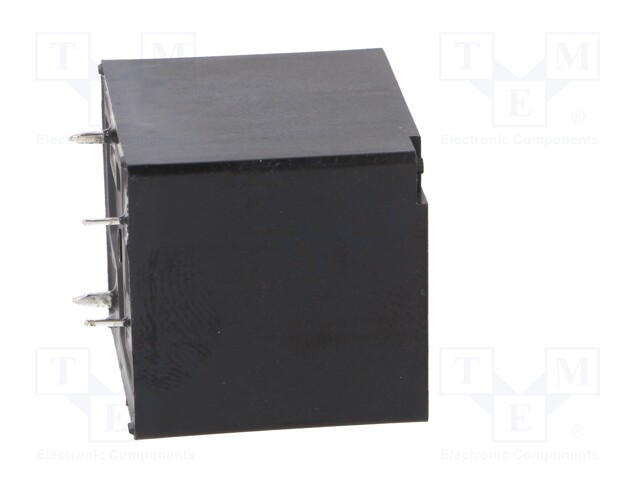

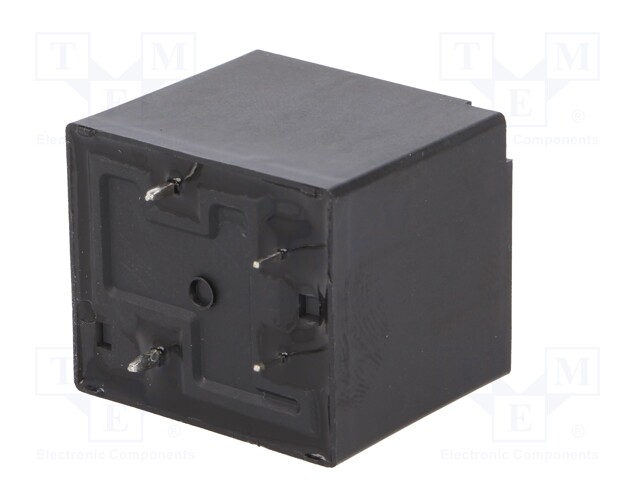

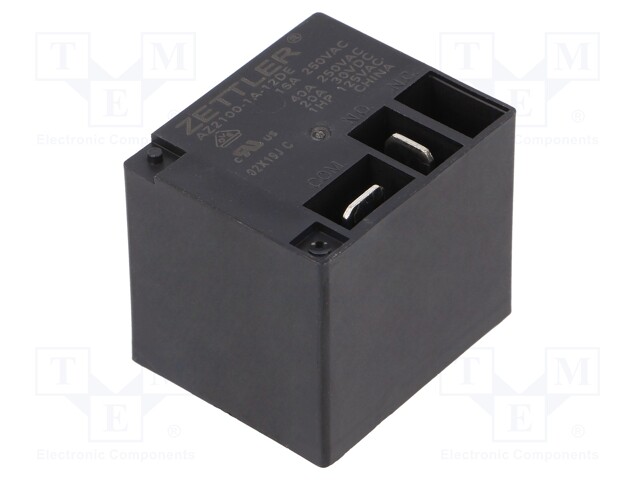

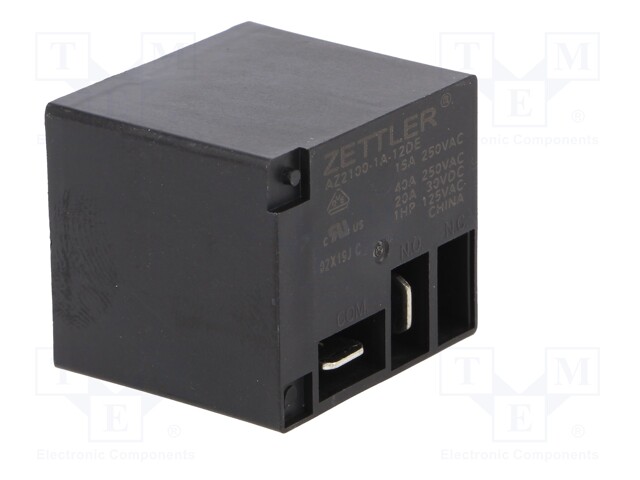

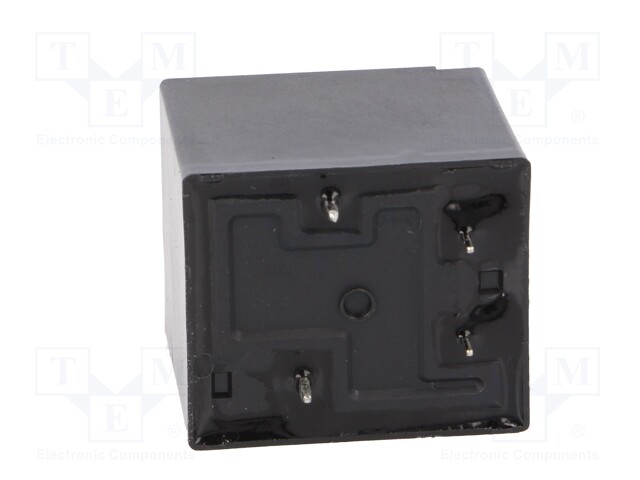

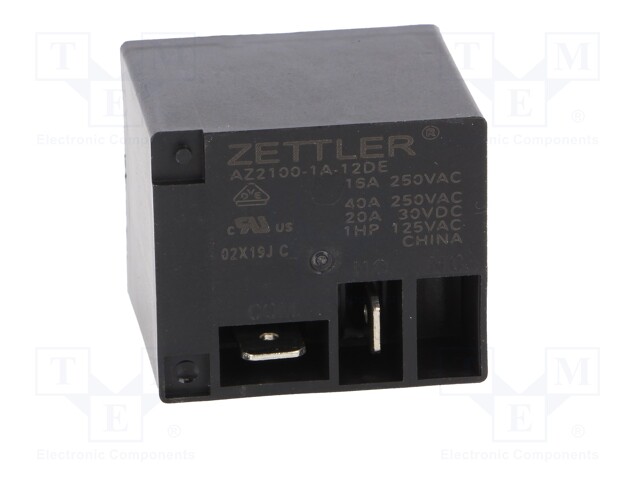

Relay: electromagnetic; SPST-NO; Ucoil: 12VDC; 40A; Series: AZ2100

    Kordarv: 1.0
    Minimum quantity: 1.0
    Tootekood: AZ2100-1A-12DE
    Tootja: ZETTLER
    Tootja tootekood: AZ2100-1A-12DE
    • Mounting
    • Mounting
    • Operating temperature
    • Contact material
    • Body dimensions
    • Switched voltage
    • Switched voltage
    • Coil resistance
    • Rated coil voltage
    • Contacts configuration
    • DC contacts rating @R
    • Contact resistance
    • AC contacts rating @R
    • Contact current max.
    • Relay variant
    • Type of relay
    • Coil power consumption

    2,40 € 2,40 € (KM-TA) 2.4 EUR

    2,40 €

    Seda kombinatsiooni ei eksisteeri.

    Lisa ostukorvi

    Product downloads

    Spetsifikatsioon tootele Relay: electromagnetic; SPST-NO; Ucoil: 12VDC; 40A; Series: AZ2100

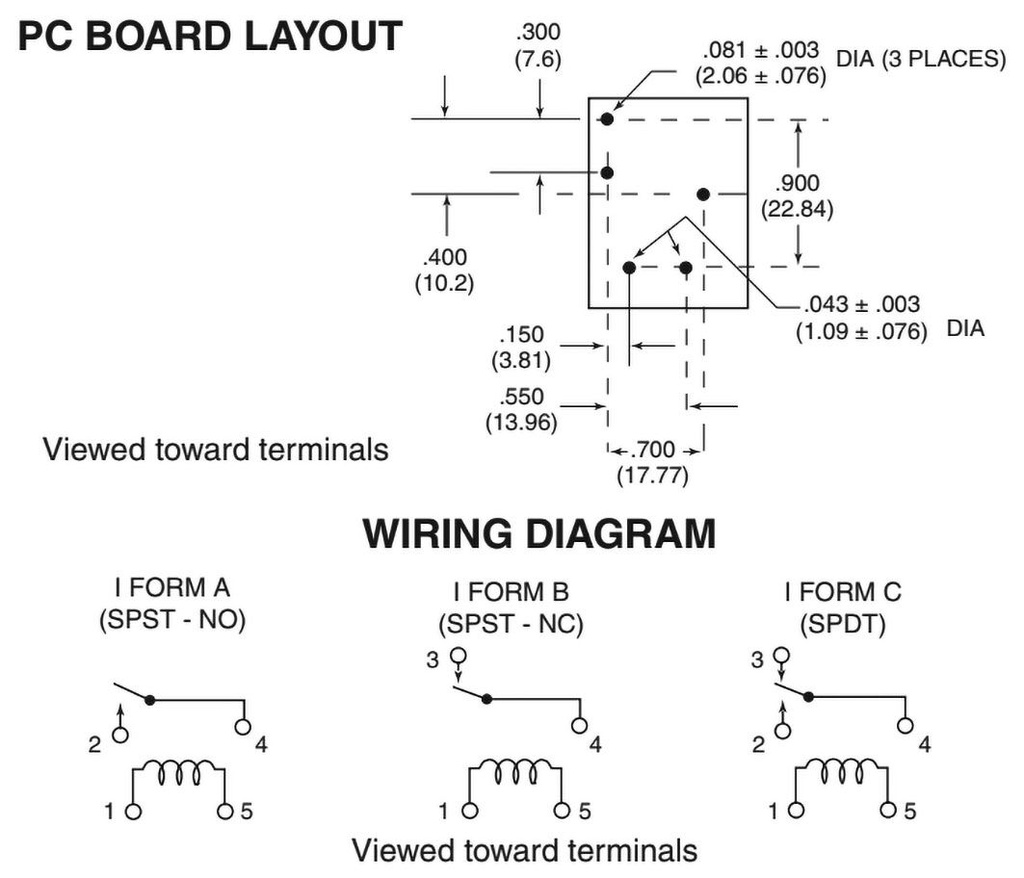

    Mounting cables, PCB
    Operating temperature -55...85°C
    Contact material AgCdO

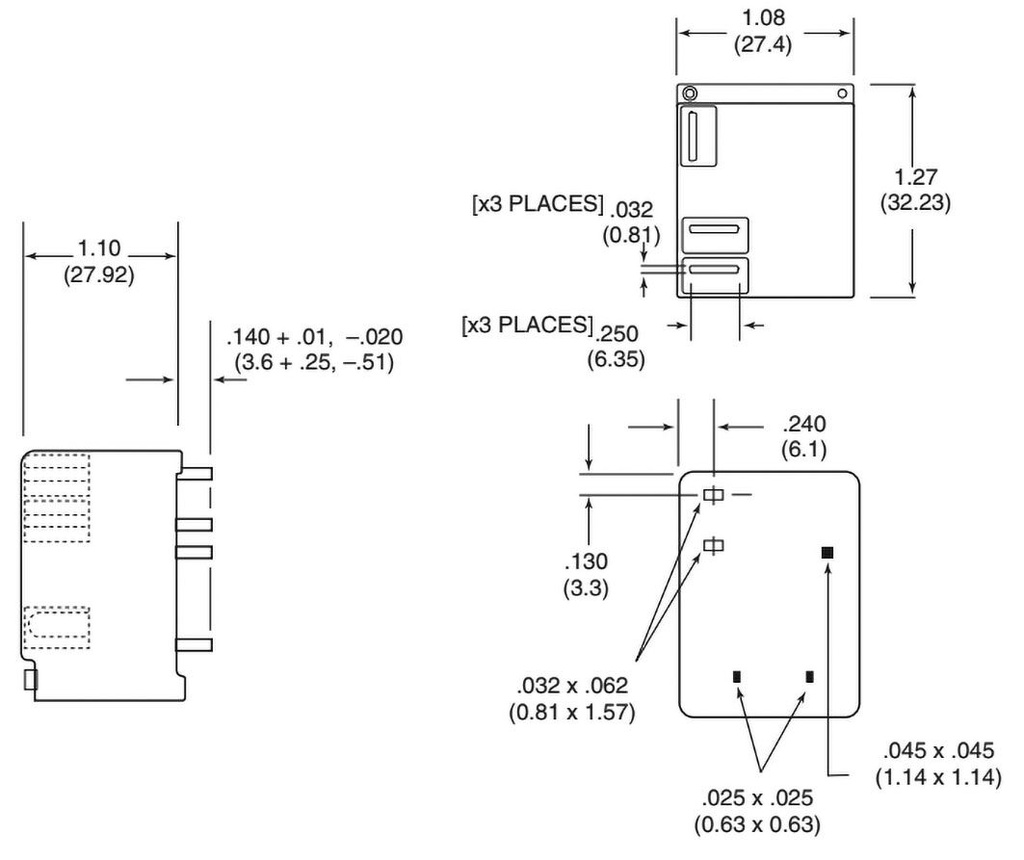

    Body dimensions 32.23x27.4x27.92mm
    Switched voltage ≤ 30V DC, ≤ 277V AC
    Coil resistance 155Ω
    Rated coil voltage 12V DC
    Contacts configuration SPST-NO
    DC contacts rating @R 20A / 30V DC
    Contact resistance 50mΩ
    AC contacts rating @R 40A / 250V AC
    Contact current max. 40A
    Relay variant power
    Type of relay electromagnetic
    Coil power consumption 0.5W
