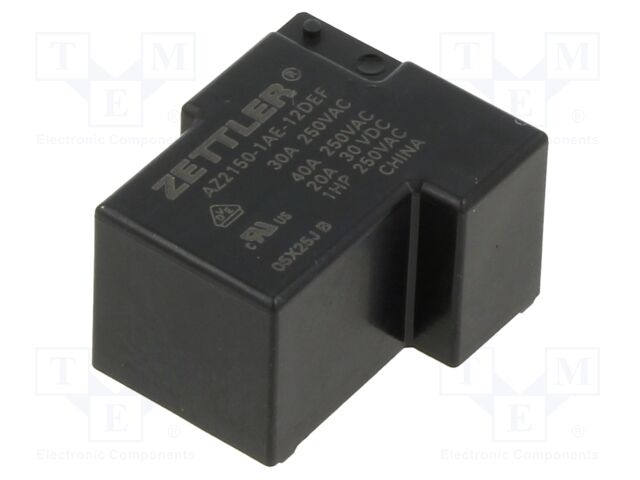

Relay: electromagnetic; SPST-NO; Ucoil: 12VDC; 40A; max.300VAC

    Kordarv: 1.0
    Minimum quantity: 1.0
    Tootekood: AZ2150-1AE-12DEF
    Tootja: ZETTLER
    Tootja tootekood: AZ2150-1AE-12DEF
    • Mounting
    • Operating temperature
    • Contact material
    • Body dimensions
    • Switched voltage
    • Switched voltage
    • Coil resistance
    • Rated coil voltage
    • Contacts configuration
    • AC contacts rating @R
    • Contact current max.
    • Relay variant
    • Type of relay
    • Coil power consumption

    0,00 € 0,00 € (KM-TA) 0.0 EUR

    0,00 €

    Seda kombinatsiooni ei eksisteeri.

    Lisa ostukorvi

    Product downloads

    Spetsifikatsioon tootele Relay: electromagnetic; SPST-NO; Ucoil: 12VDC; 40A; max.300VAC

    Mounting PCB
    Operating temperature -55...105°C
    Contact material AgSnO<sub>2</sub>

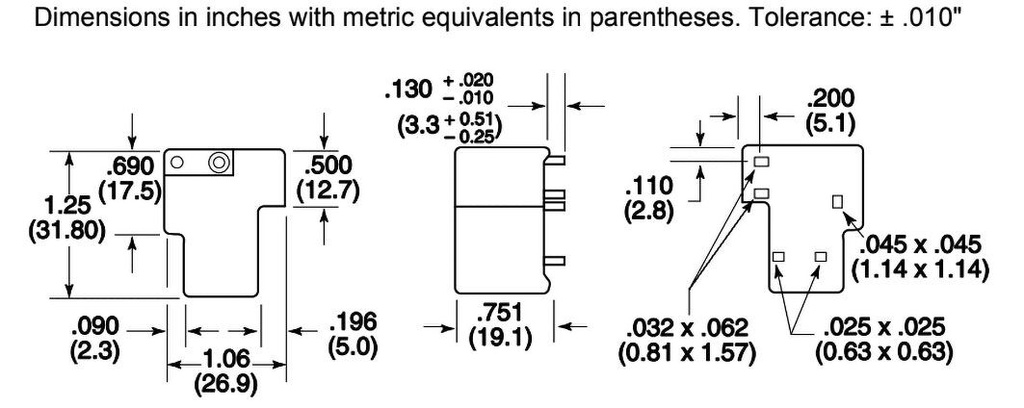

    Body dimensions 31.8x26.9x19.1mm
    Switched voltage ≤ 30V DC, ≤ 300V AC
    Coil resistance 155Ω
    Rated coil voltage 12V DC
    Contacts configuration SPST-NO
    AC contacts rating @R 40A / 250V AC
    Contact current max. 40A
    Relay variant power
    Type of relay electromagnetic
    Coil power consumption 0.9W
