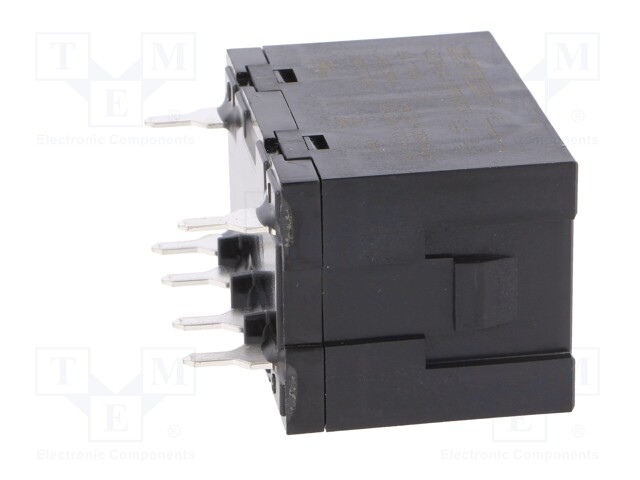

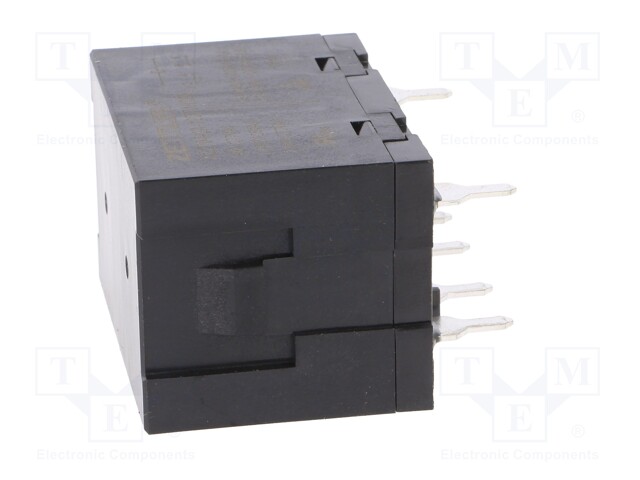

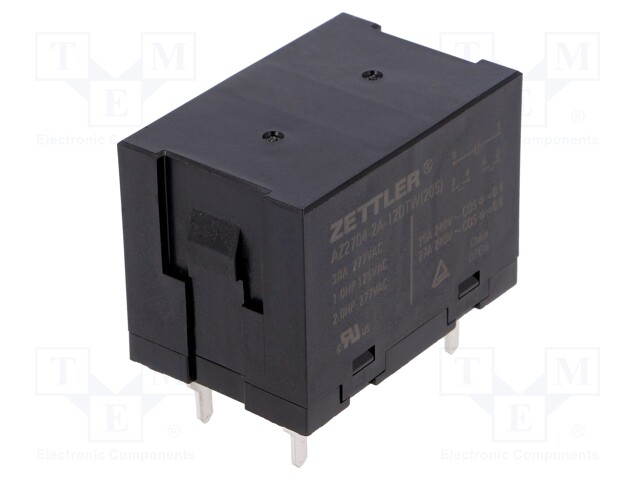

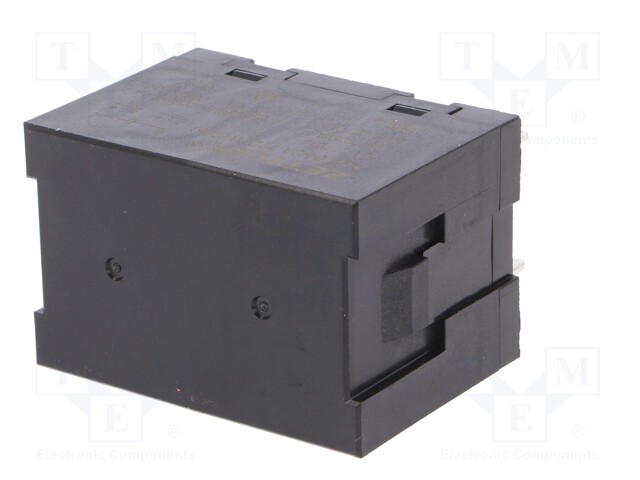

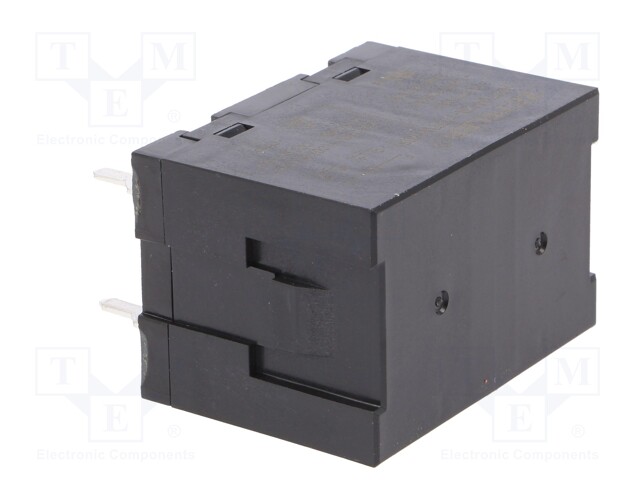

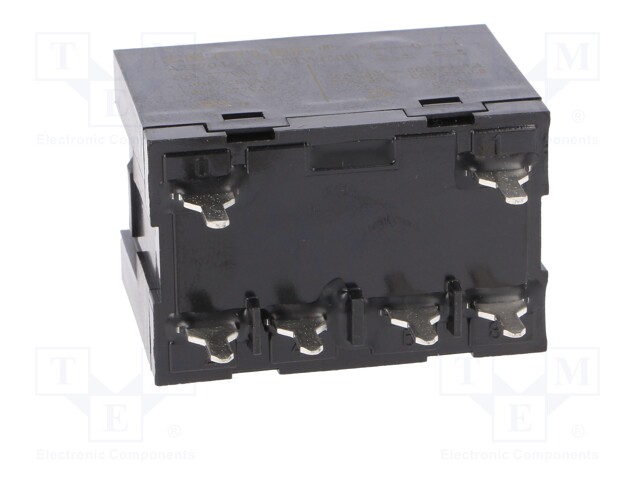

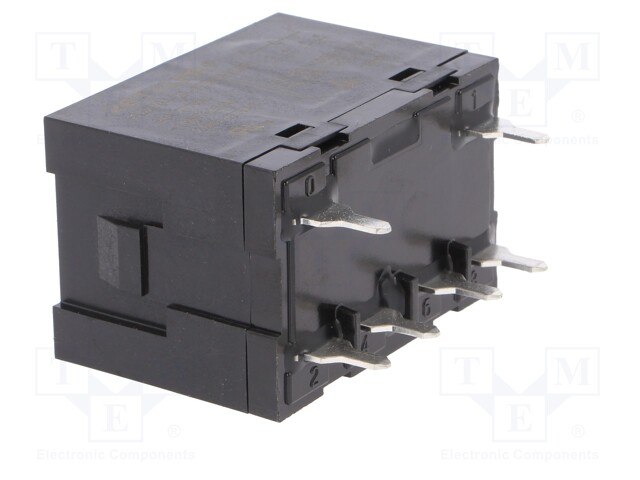

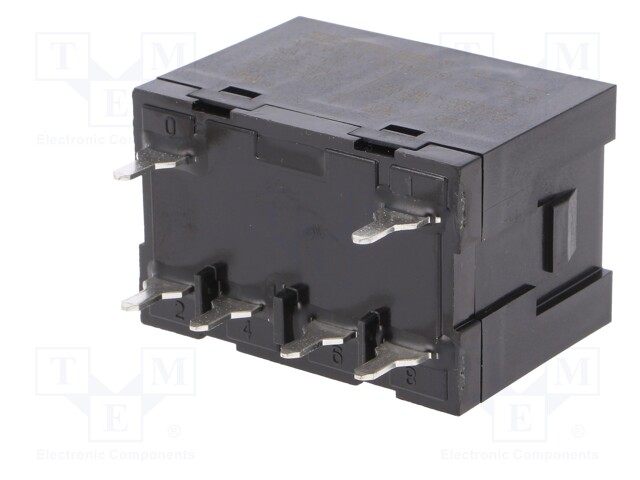

Relay: electromagnetic; DPST-NO; Ucoil: 12VDC; 30A; Series: AZ2704

    Kordarv: 1.0
    Minimum quantity: 1.0
    Tootekood: AZ2704-2A-12DTW
    Tootja: ZETTLER
    Tootja tootekood: AZ2704-2A-12DTW
    • Mounting
    • Operating temperature
    • Contact material
    • Body dimensions
    • Switched voltage
    • Switched voltage
    • Coil resistance
    • Rated coil voltage
    • Contacts configuration
    • AC contacts rating @R
    • Contact current max.
    • Relay variant
    • Type of relay
    • Coil power consumption

    10,38 € 10,38 € (KM-TA) 10.38 EUR

    10,38 €

    Seda kombinatsiooni ei eksisteeri.

    Lisa ostukorvi

    Spetsifikatsioon tootele Relay: electromagnetic; DPST-NO; Ucoil: 12VDC; 30A; Series: AZ2704

    Mounting PCB
    Operating temperature -40...85°C
    Contact material AgSnO<sub>2</sub>

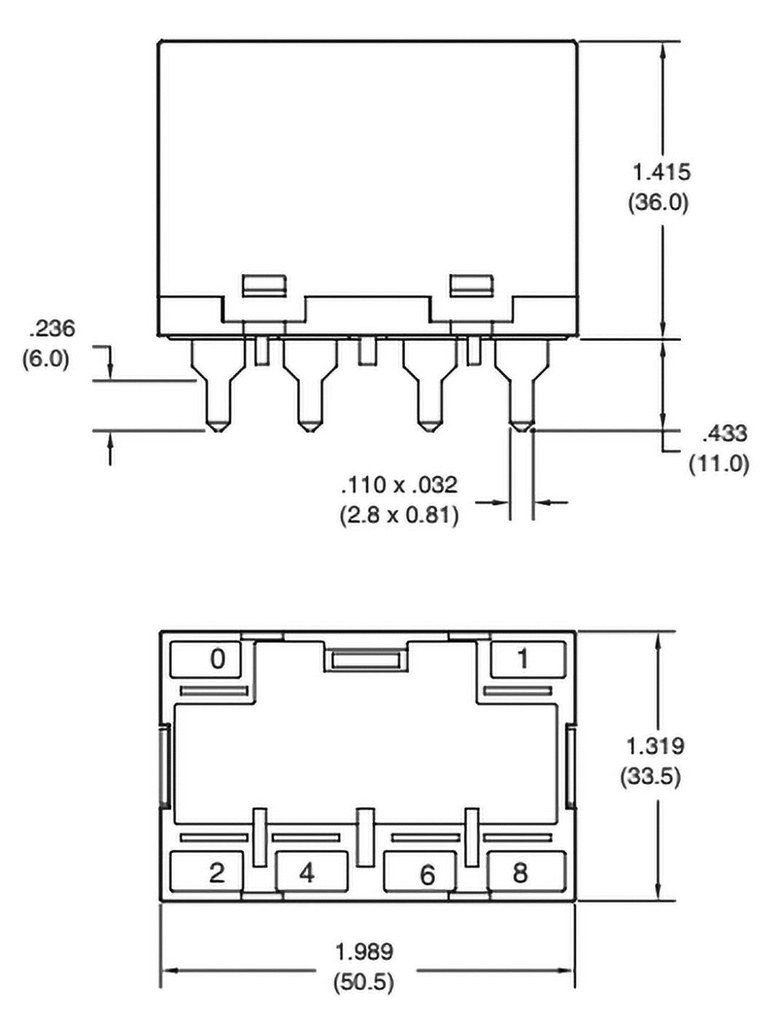

    Body dimensions 50.5x33.5x36mm
    Switched voltage ≤ 150V DC, ≤ 400V AC
    Coil resistance 75Ω
    Rated coil voltage 12V DC

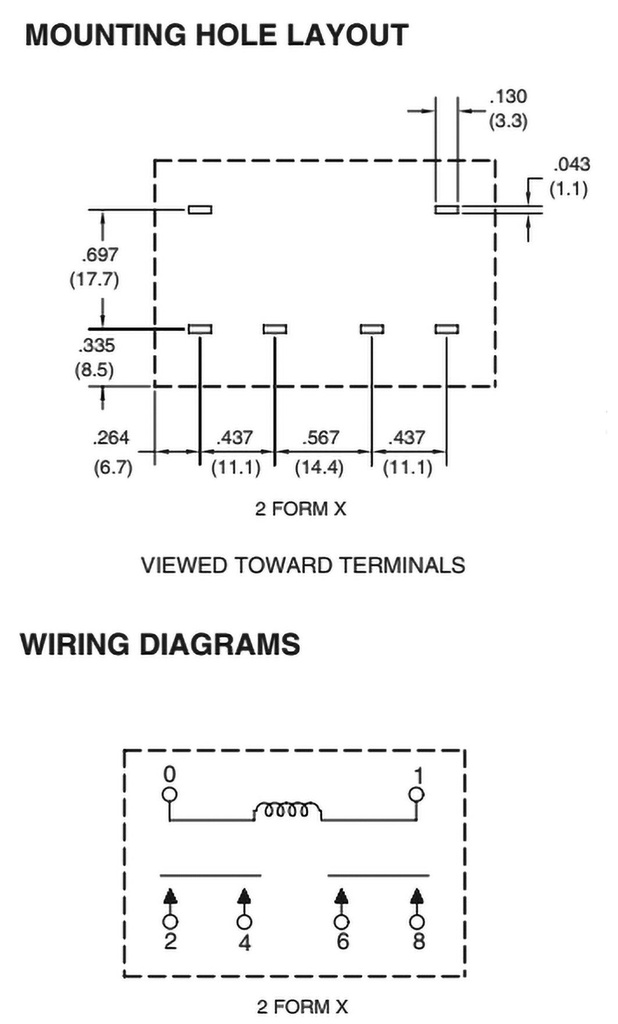

    Contacts configuration DPST-NO
    AC contacts rating @R 30A / 277V AC
    Contact current max. 30A
    Relay variant power
    Type of relay electromagnetic
    Coil power consumption 1.08W
