Relay: electromagnetic; DPST-NO; Ucoil: 12VDC; 40A; Series: AZ2850

    Kordarv: 400.0
    Minimum quantity: 400.0
    Tootekood: AZ2850-2AE-12DE
    Tootja: ZETTLER
    Tootja tootekood: AZ2850-2AE-12DE
    • Mounting
    • Operating temperature
    • Contact material
    • Body dimensions
    • Switched voltage
    • Switched voltage
    • Coil resistance
    • Rated coil voltage
    • Contacts configuration
    • DC contacts rating @R
    • AC contacts rating @R
    • Contact current max.
    • Relay variant
    • Type of relay

    7,97 € 7,97 € (KM-TA) 7.97 EUR

    7,97 €

    Seda kombinatsiooni ei eksisteeri.

    Lisa ostukorvi

    Product downloads

    Spetsifikatsioon tootele Relay: electromagnetic; DPST-NO; Ucoil: 12VDC; 40A; Series: AZ2850

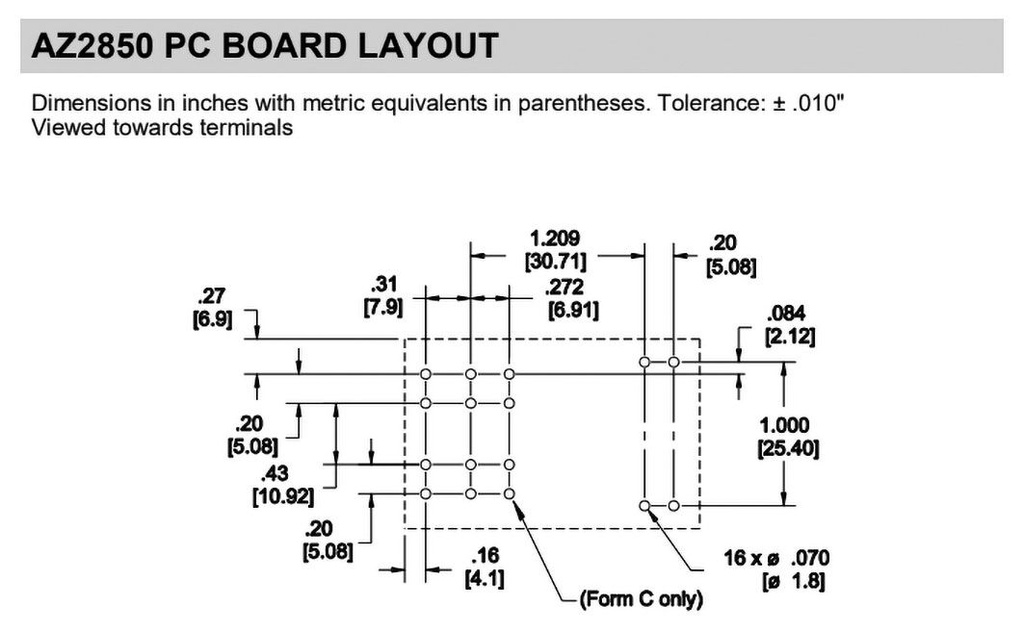

    Mounting PCB
    Operating temperature -40...85°C
    Contact material AgSnO<sub>2</sub>

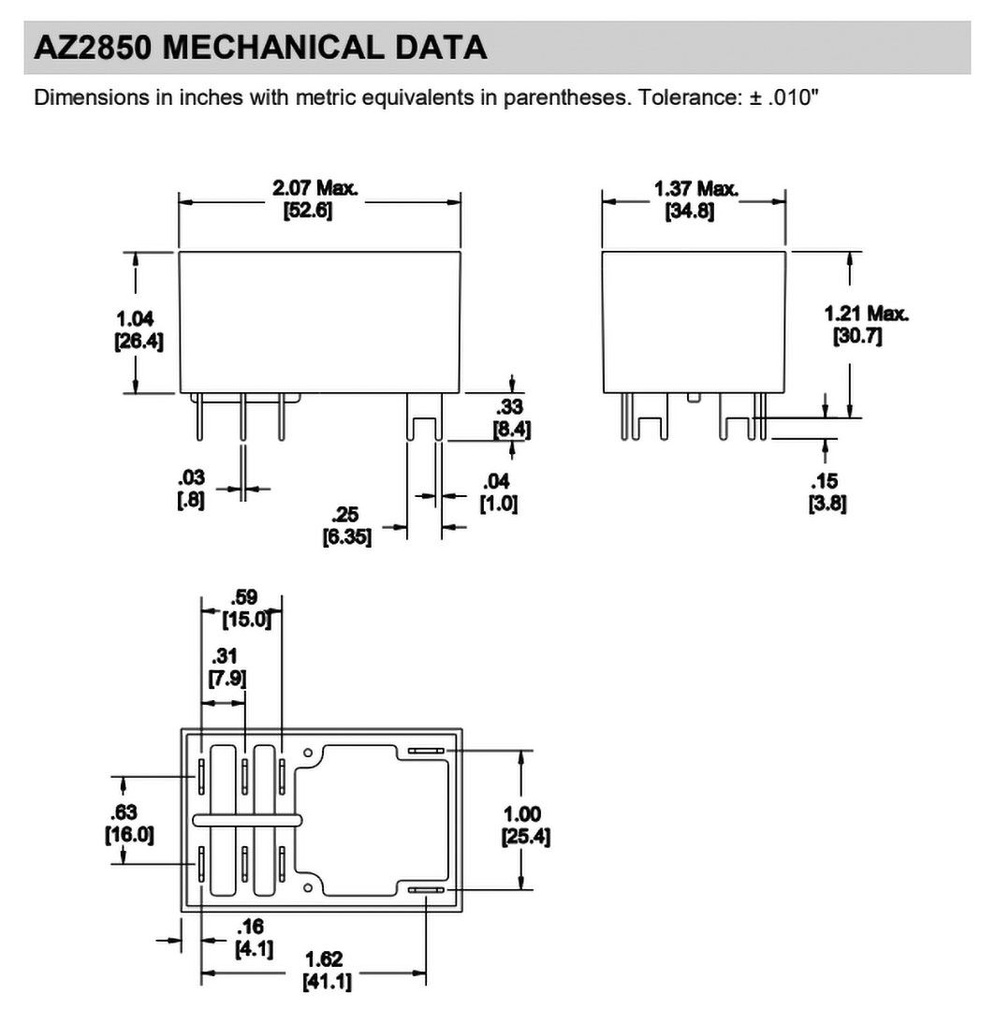

    Body dimensions 52.6x34.8x26.4mm
    Switched voltage ≤ 30V DC, ≤ 600V AC
    Coil resistance 86Ω
    Rated coil voltage 12V DC
    Contacts configuration DPST-NO
    DC contacts rating @R 40A / 30V DC
    AC contacts rating @R 40A / 277V AC
    Contact current max. 40A
    Relay variant power
    Type of relay electromagnetic
