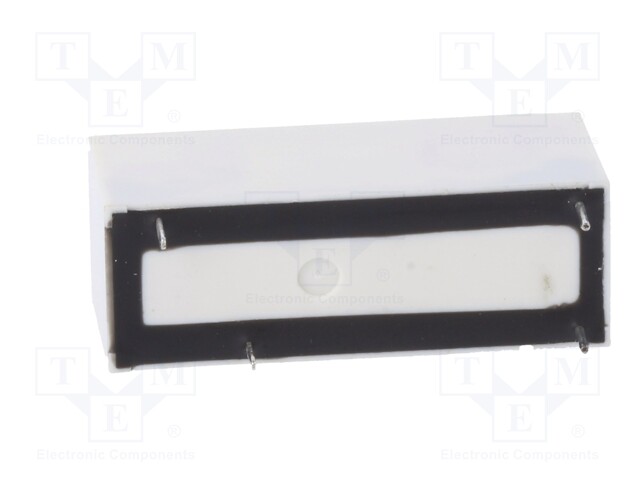

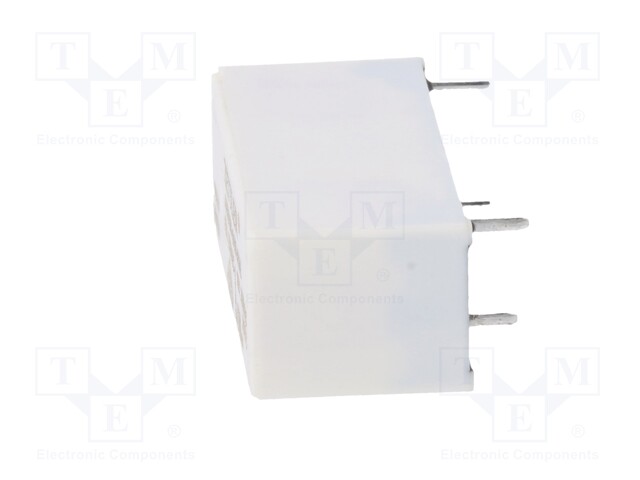

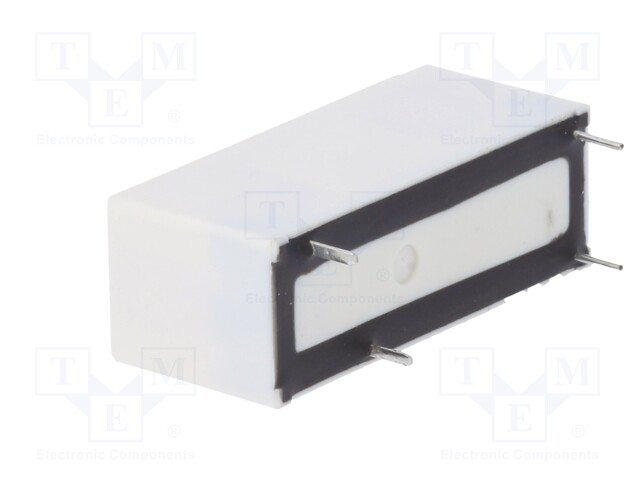

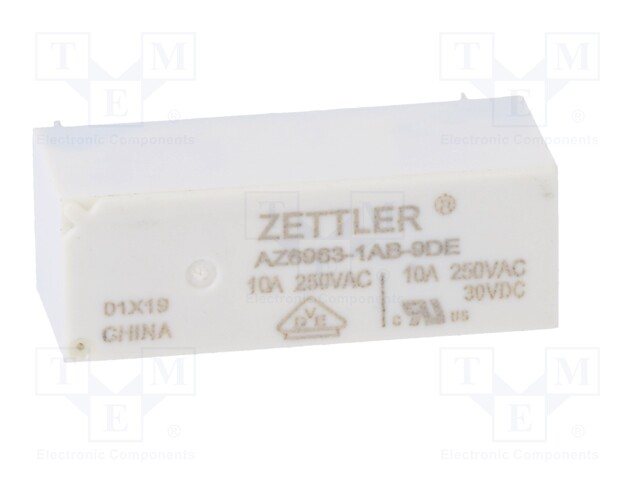

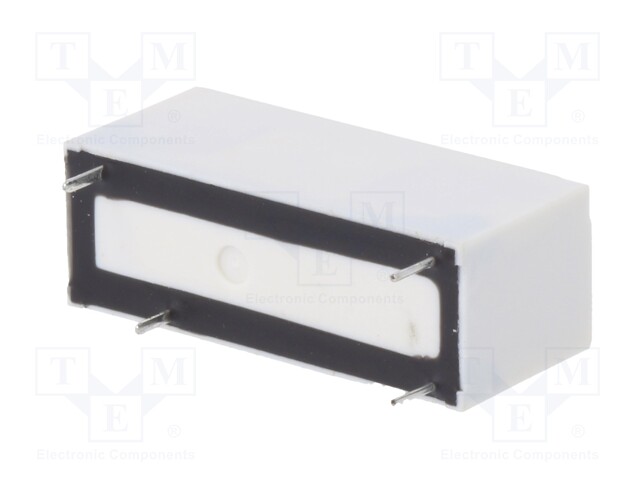

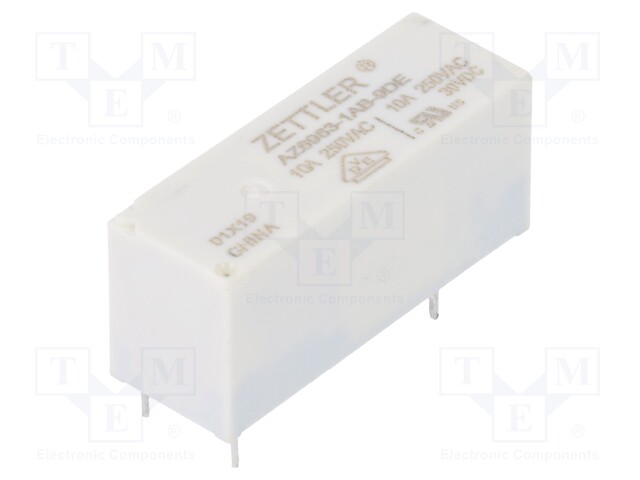

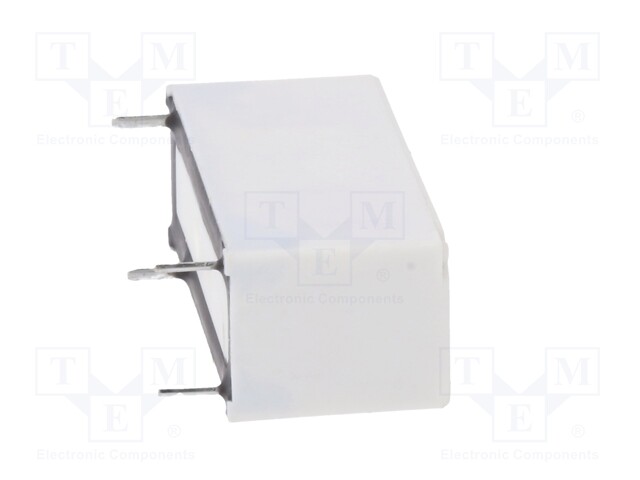

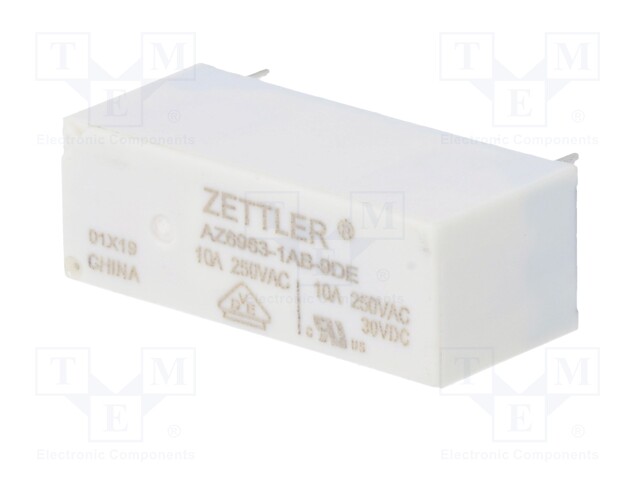

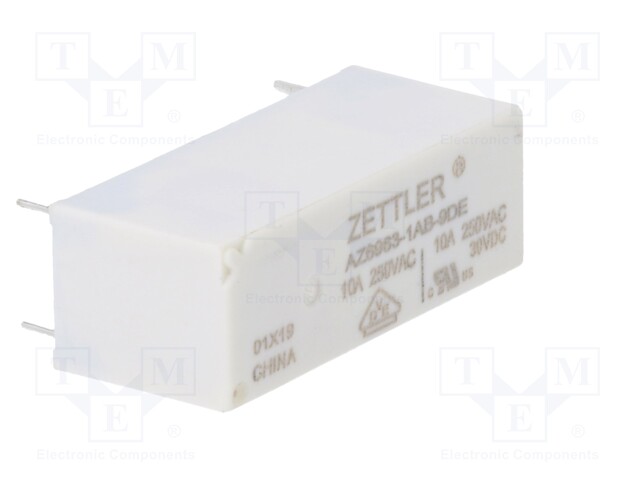

Relay: electromagnetic; SPST-NO; Ucoil: 9VDC; 10A/250VAC; 10A

    Kordarv: 1.0
    Minimum quantity: 1.0
    Tootekood: AZ6963-1AB-9DE
    Tootja: ZETTLER
    Tootja tootekood: AZ6963-1AB-9DE
    • Mounting
    • Operating temperature
    • Body dimensions
    • Switched voltage
    • Switched voltage
    • Coil resistance
    • Rated coil voltage
    • Contacts configuration
    • DC contacts rating @R
    • Contact resistance
    • AC contacts rating @R
    • Contact current max.
    • Relay variant
    • Coil voltage max.
    • Type of relay
    • Coil voltage min.
    • Operate time
    • Release time

    1,77 € 1,77 € (KM-TA) 1.77 EUR

    1,77 €

    Seda kombinatsiooni ei eksisteeri.

    Lisa ostukorvi

    Product downloads

    Spetsifikatsioon tootele Relay: electromagnetic; SPST-NO; Ucoil: 9VDC; 10A/250VAC; 10A

    Mounting PCB
    Operating temperature -40...85°C

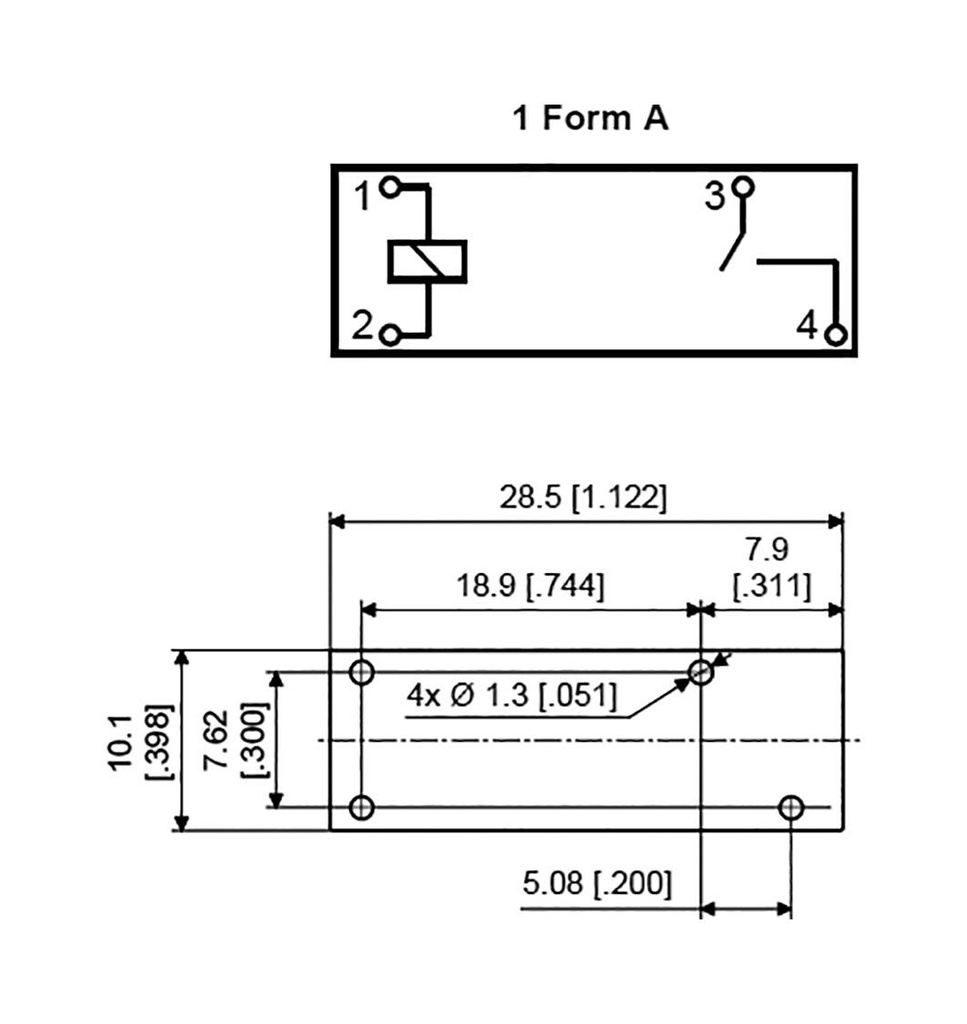

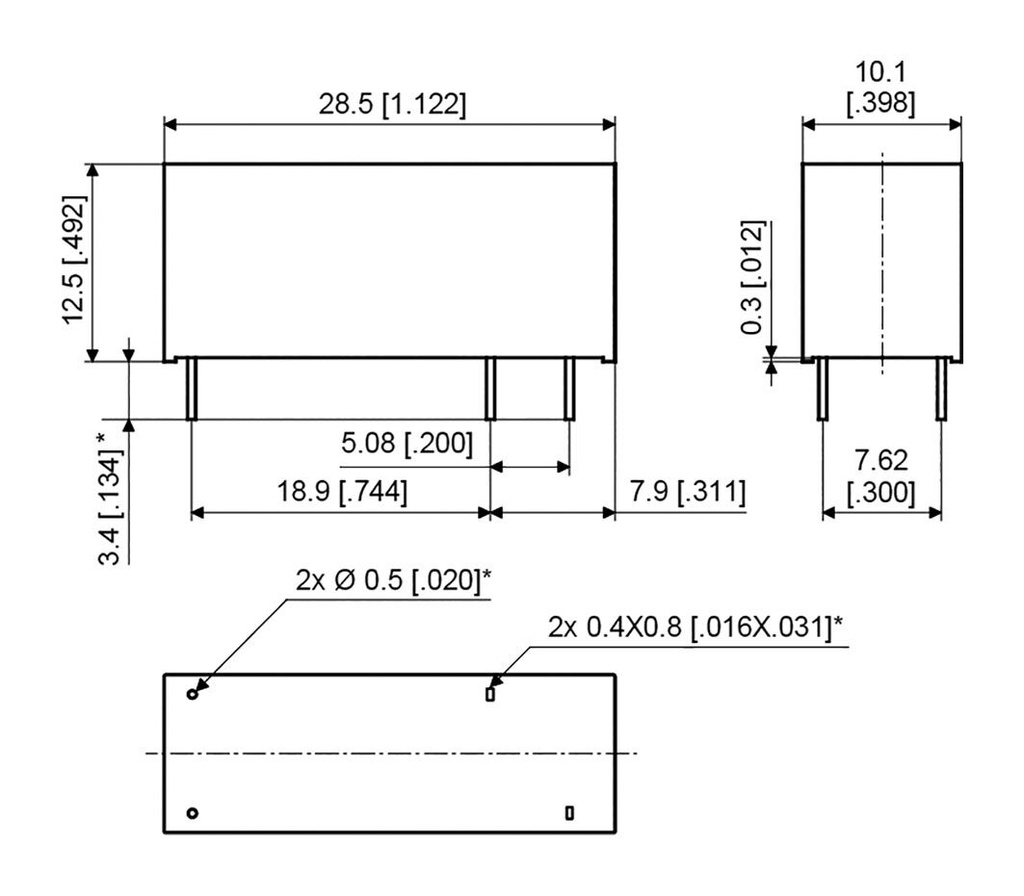

    Body dimensions 28.8x10.1x12.5mm
    Switched voltage ≤ 240V DC, ≤ 440V AC
    Coil resistance 360Ω
    Rated coil voltage 9V DC
    Contacts configuration SPST-NO
    DC contacts rating @R 10A / 30V DC
    Contact resistance 100MΩ
    AC contacts rating @R 10A / 250V AC
    Contact current max. 10A
    Relay variant miniature
    Coil voltage max. 20.8V DC
    Type of relay electromagnetic
    Coil voltage min. 6.3V DC
    Operate time 7ms
    Release time 3ms
