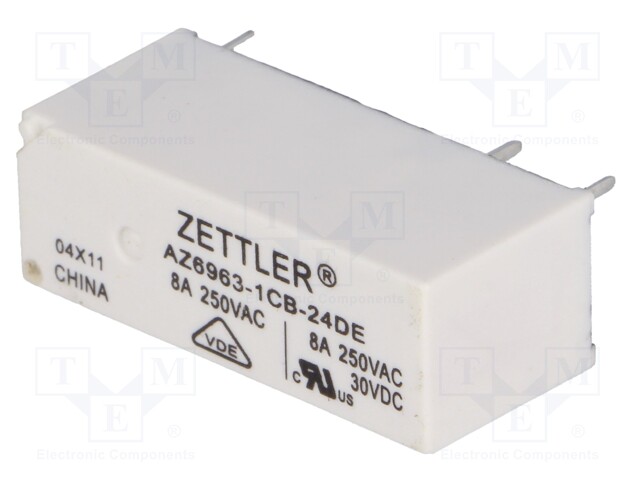

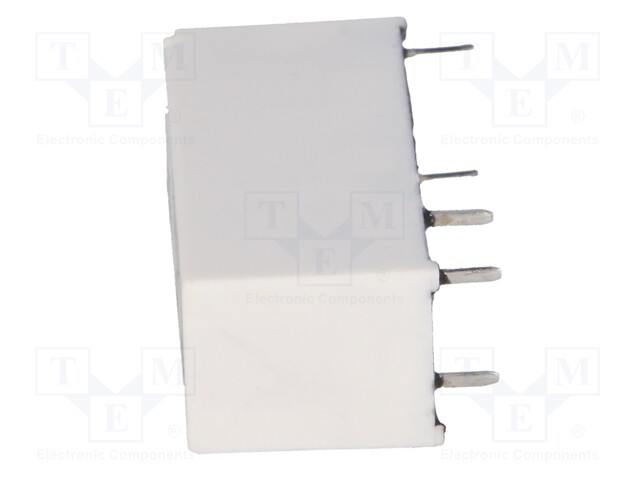

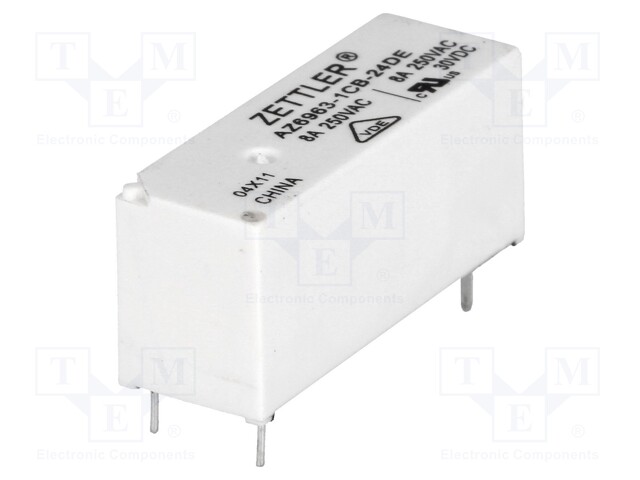

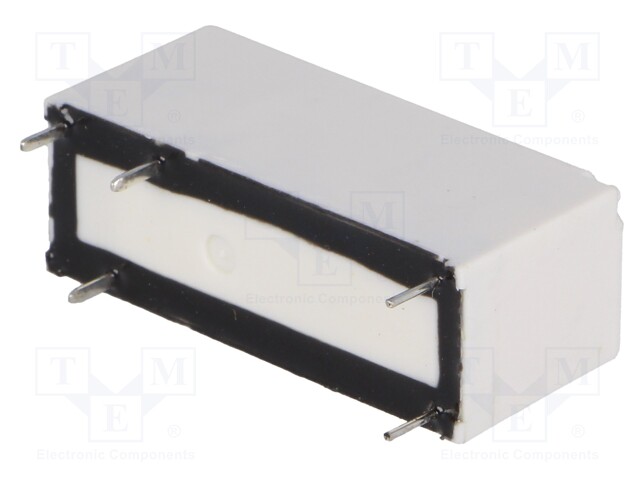

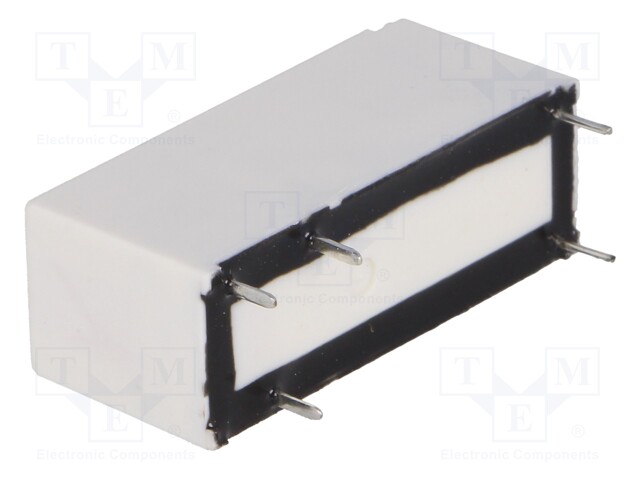

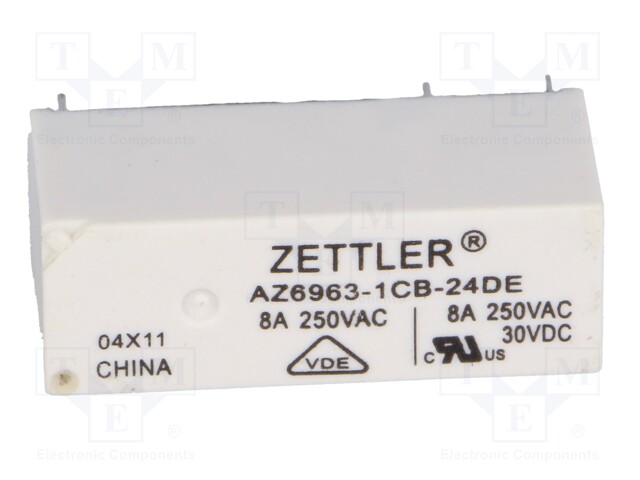

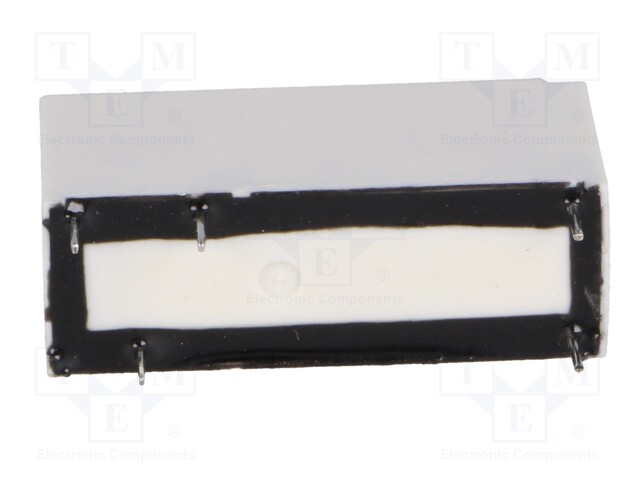

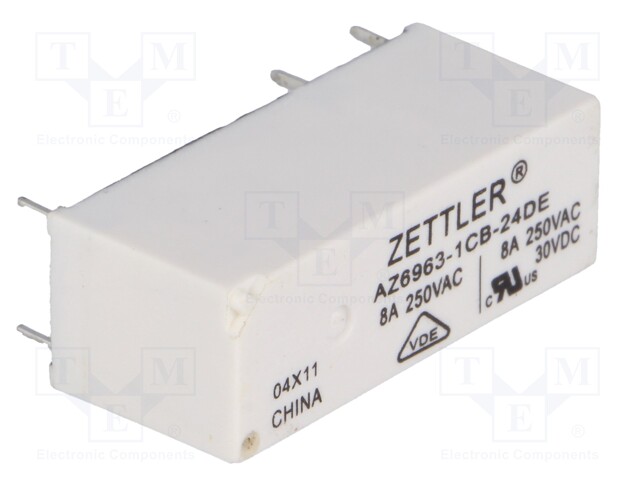

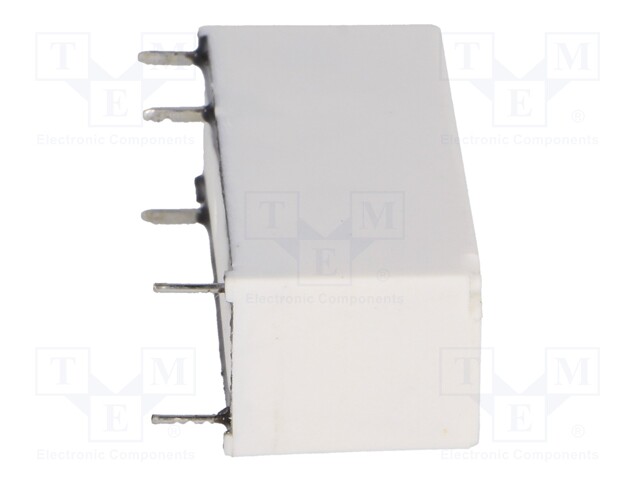

Relay: electromagnetic; SPDT; Ucoil: 24VDC; 8A/250VAC; 8A/30VDC; 8A

    Kordarv: 1.0
    Minimum quantity: 1.0
    Tootekood: AZ6963-1CB-24DE
    Tootja: ZETTLER
    Tootja tootekood: AZ6963-1CB-24DE
    • Mounting
    • Operating temperature
    • Body dimensions
    • Switched voltage
    • Switched voltage
    • Coil resistance
    • Rated coil voltage
    • Contacts configuration
    • DC contacts rating @R
    • Contact resistance
    • AC contacts rating @R
    • Contact current max.
    • Relay variant
    • Coil voltage max.
    • Type of relay
    • Coil voltage min.
    • Coil power consumption
    • Operate time
    • Release time

    2,78 € 2,78 € (KM-TA) 2.7800000000000002 EUR

    2,78 €

    Seda kombinatsiooni ei eksisteeri.

    Lisa ostukorvi

    Product downloads

    Spetsifikatsioon tootele Relay: electromagnetic; SPDT; Ucoil: 24VDC; 8A/250VAC; 8A/30VDC; 8A

    Mounting PCB
    Operating temperature -40...85°C
    Body dimensions 28.8x10.1x12.5mm
    Switched voltage ≤ 240V DC, ≤ 440V AC
    Coil resistance 2.35kΩ
    Rated coil voltage 24V DC
    Contacts configuration SPDT
    DC contacts rating @R 8A / 30V DC
    Contact resistance 100MΩ
    AC contacts rating @R 8A / 250V AC
    Contact current max. 8A
    Relay variant miniature
    Coil voltage max. 53.1V DC
    Type of relay electromagnetic
    Coil voltage min. 16.8V DC
    Coil power consumption 245mW
    Operate time 7ms
    Release time 3ms
