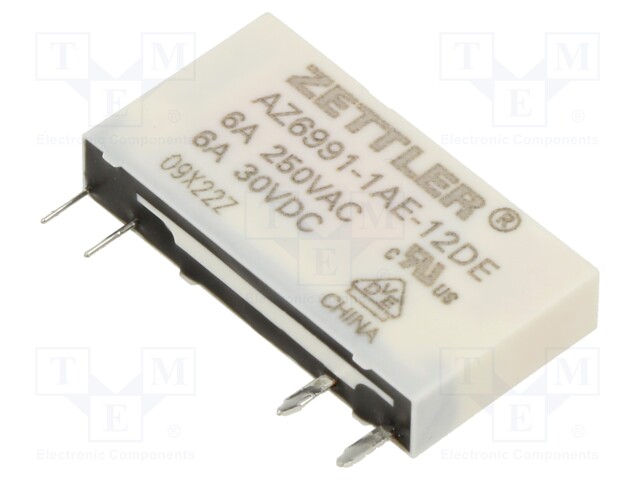

Relay: electromagnetic; SPST-NO; Ucoil: 12VDC; 8A/277VAC; 6A/30VDC

    Kordarv: 1.0
    Minimum quantity: 1.0
    Tootekood: AZ6991-1AE-12DE
    Tootja: ZETTLER
    Tootja tootekood: AZ6991-1AE-12DE
    • Mounting
    • Operating temperature
    • Contact material
    • Body dimensions
    • Switched voltage
    • Switched voltage
    • Coil resistance
    • Rated coil voltage
    • Contacts configuration
    • DC contacts rating @R
    • Contact resistance
    • Contact current max.
    • Relay variant
    • Type of relay
    • Coil power consumption
    • Operate time
    • Release time

    2,36 € 2,36 € (KM-TA) 2.36 EUR

    2,36 €

    Seda kombinatsiooni ei eksisteeri.

    Lisa ostukorvi

    Product downloads

    Spetsifikatsioon tootele Relay: electromagnetic; SPST-NO; Ucoil: 12VDC; 8A/277VAC; 6A/30VDC

    Mounting PCB
    Operating temperature -40...85°C
    Contact material AgSnO<sub>2</sub>
    Body dimensions 28x5x15mm
    Switched voltage ≤ 30V DC, ≤ 277V AC
    Coil resistance 848Ω
    Rated coil voltage 12V DC

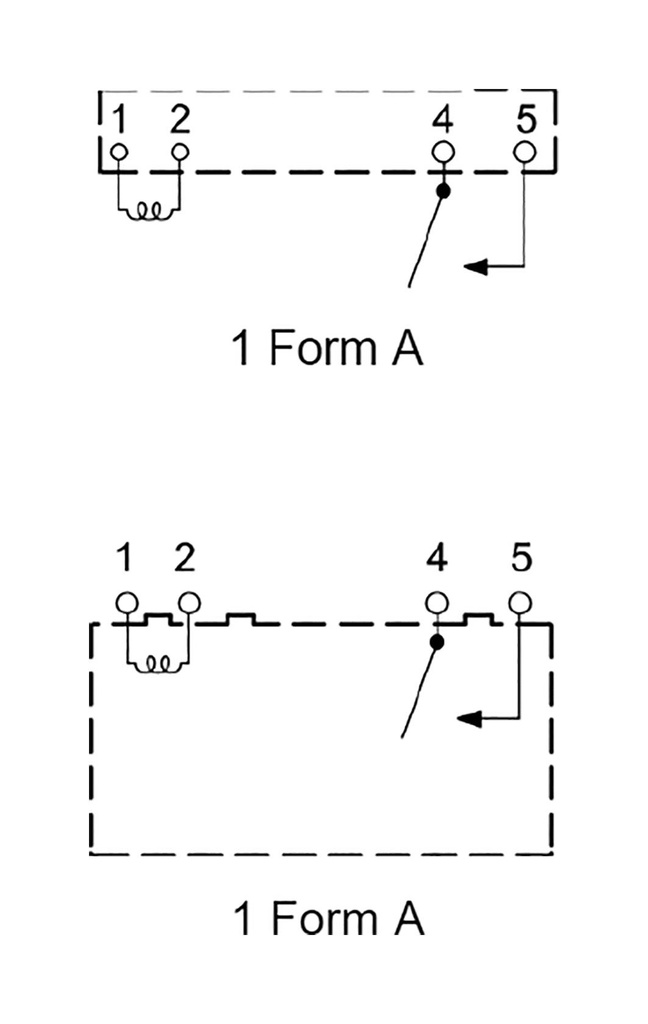

    Contacts configuration SPST-NO
    DC contacts rating @R 6A / 30V DC
    Contact resistance 100MΩ
    Contact current max. 8A
    Relay variant miniature
    Type of relay electromagnetic
    Coil power consumption 170mW
    Operate time 8ms
    Release time 4ms
