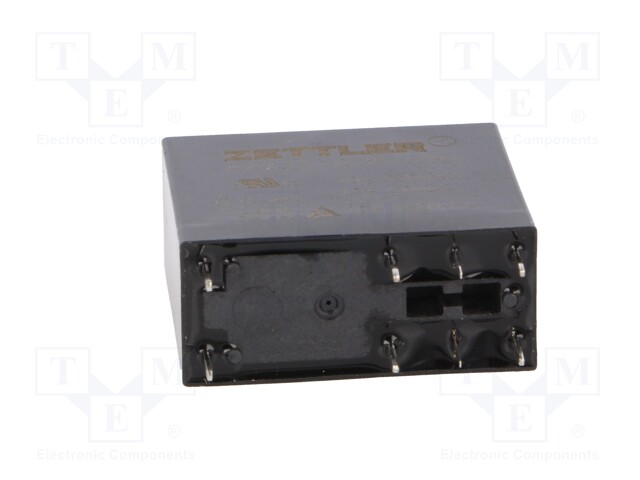

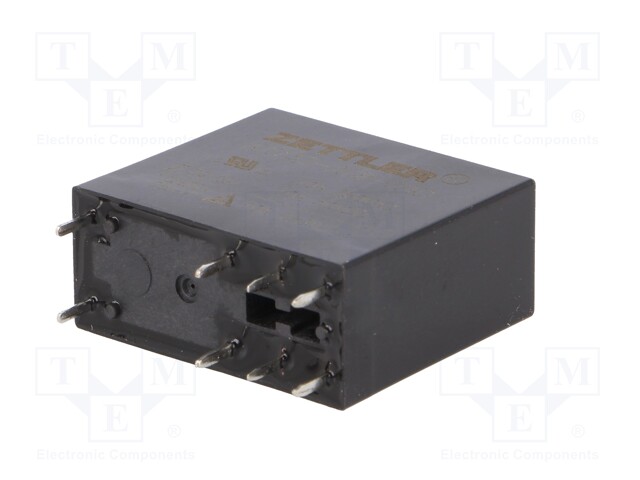

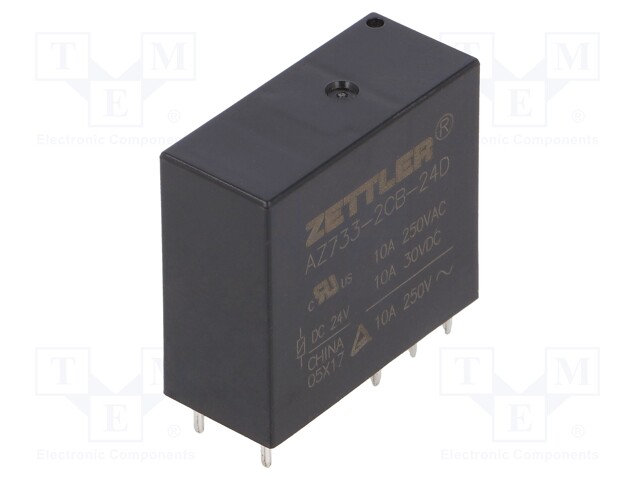

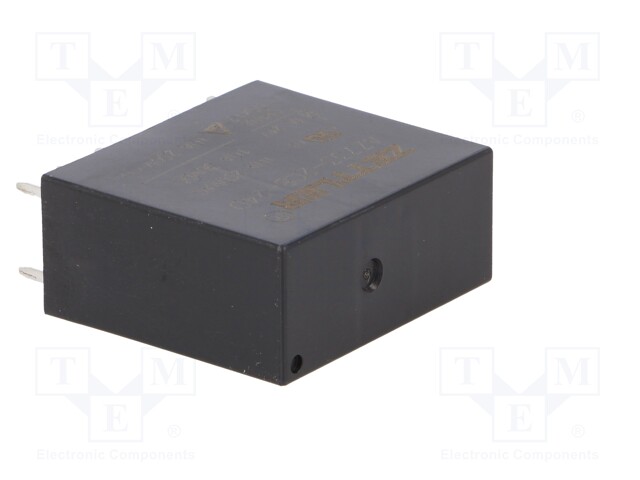

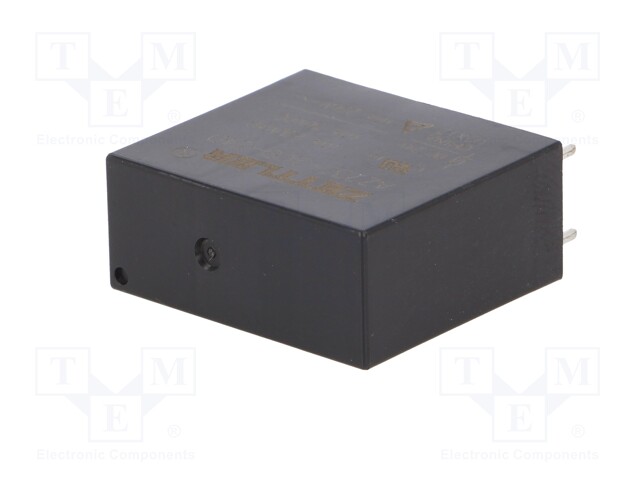

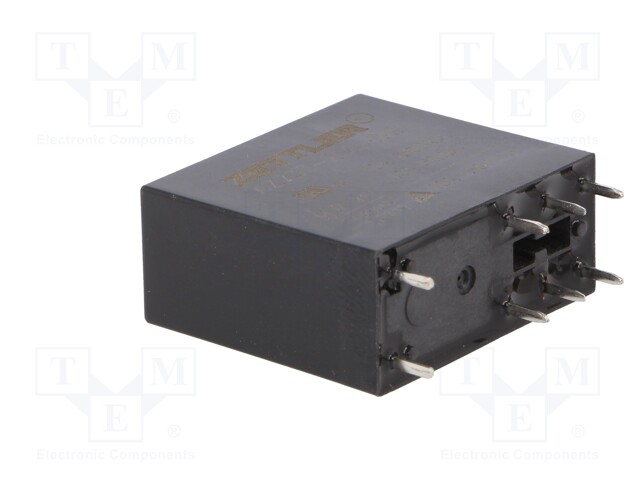

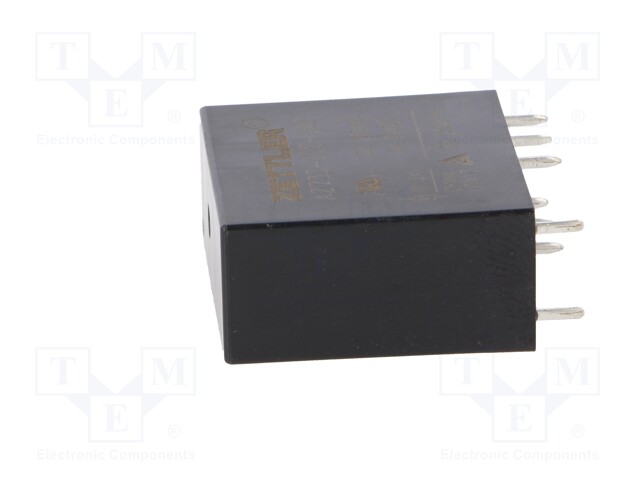

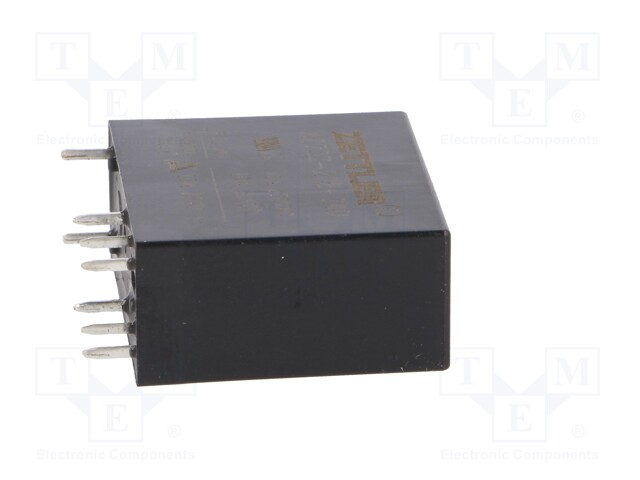

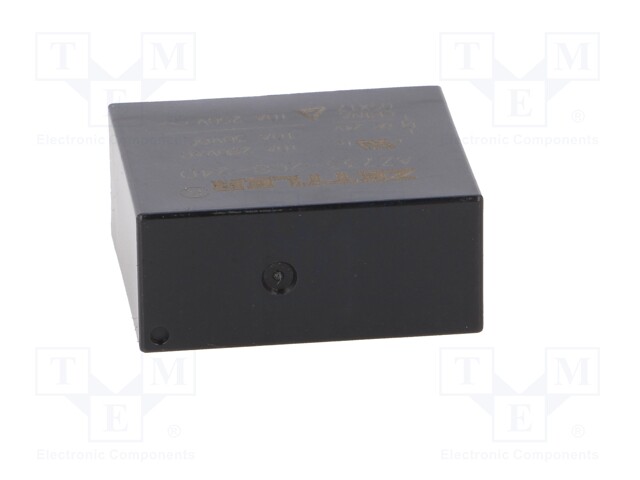

Relay: electromagnetic; DPDT; Ucoil: 24VDC; 10A/250VAC; 10A/30VDC

    Kordarv: 1.0
    Minimum quantity: 1.0
    Tootekood: AZ733-2CB-24D
    Tootja: ZETTLER
    Tootja tootekood: AZ733-2CB-24D
    • Mounting
    • Operating temperature
    • Contact material
    • Terminal pitch
    • Switched voltage
    • Switched voltage
    • Coil resistance
    • Rated coil voltage
    • Contacts configuration
    • DC contacts rating @R
    • AC contacts rating @R
    • Contact current max.
    • Relay variant
    • Type of relay
    • Operate time
    • Release time

    3,60 € 3,60 € (KM-TA) 3.6 EUR

    3,60 €

    Seda kombinatsiooni ei eksisteeri.

    Lisa ostukorvi

    Product downloads

    Spetsifikatsioon tootele Relay: electromagnetic; DPDT; Ucoil: 24VDC; 10A/250VAC; 10A/30VDC

    Mounting PCB
    Operating temperature -40...85°C
    Contact material AgNi

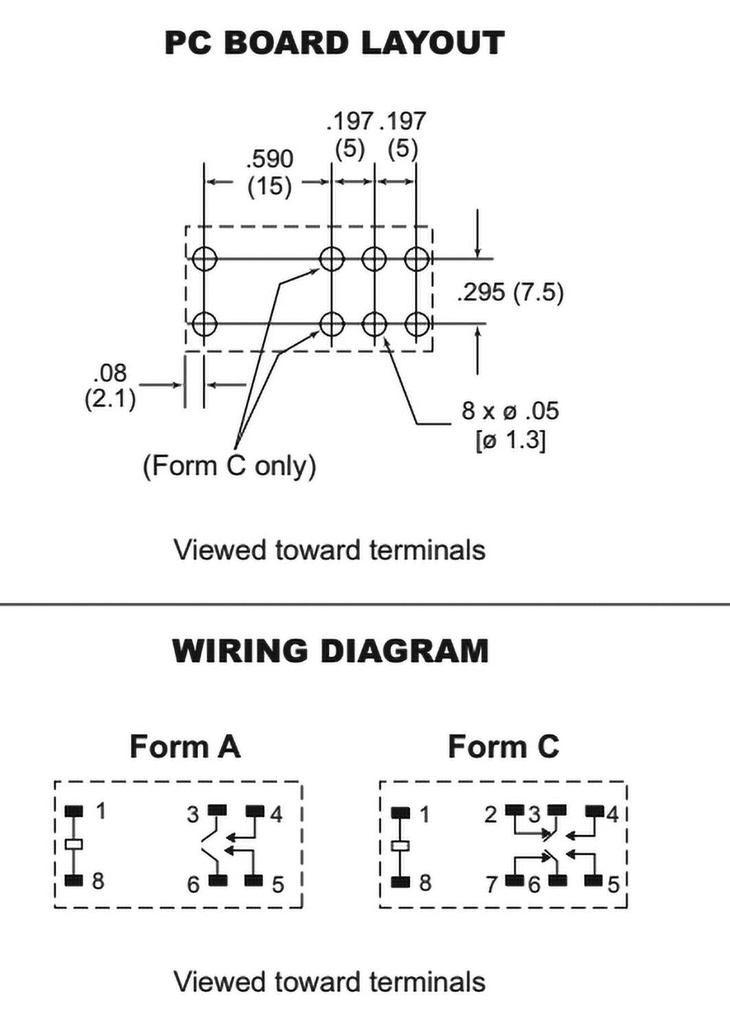

    Terminal pitch 5mm
    Switched voltage ≤ 250V DC, ≤ 400V AC
    Coil resistance 1.1kΩ
    Rated coil voltage 24V DC
    Contacts configuration DPDT
    DC contacts rating @R 10A / 30V DC
    AC contacts rating @R 10A / 250V AC
    Contact current max. 12A
    Relay variant miniature
    Type of relay electromagnetic
    Operate time 8ms
    Release time 5ms
