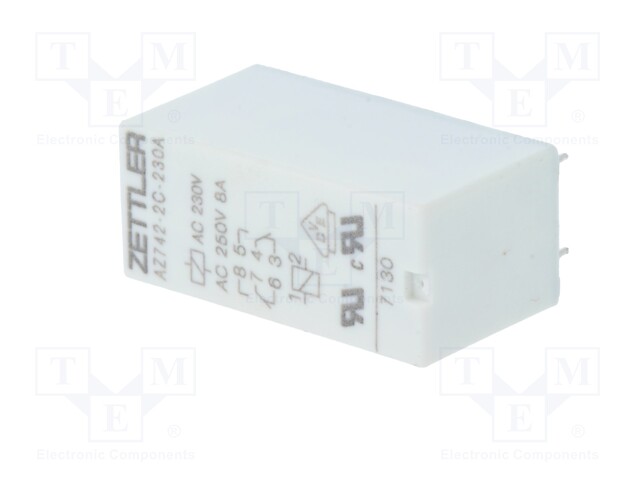

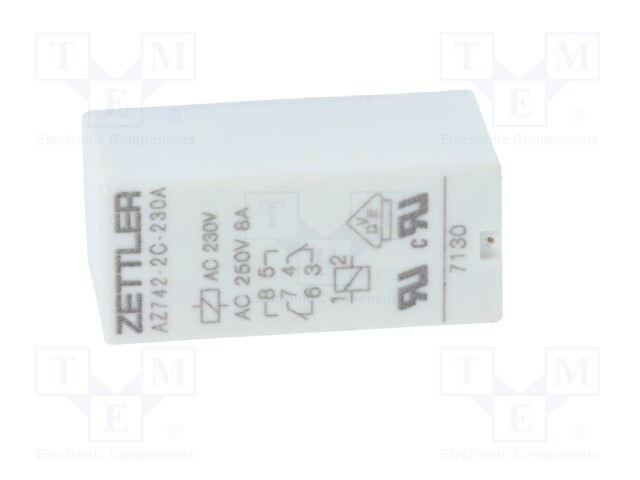

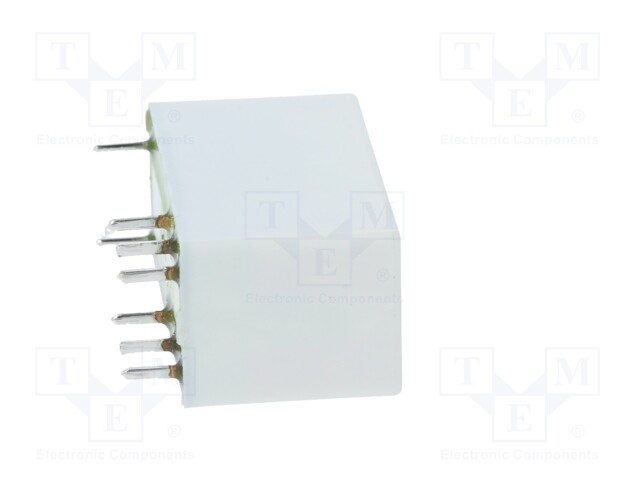

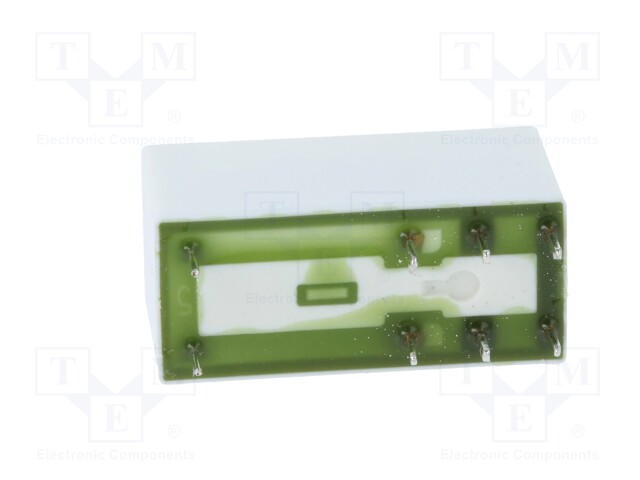

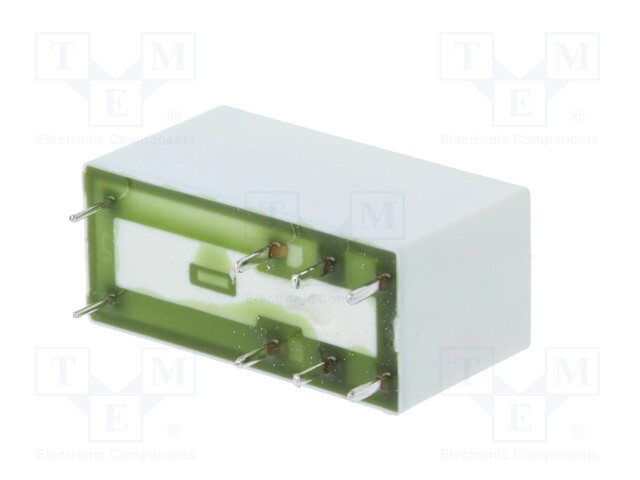

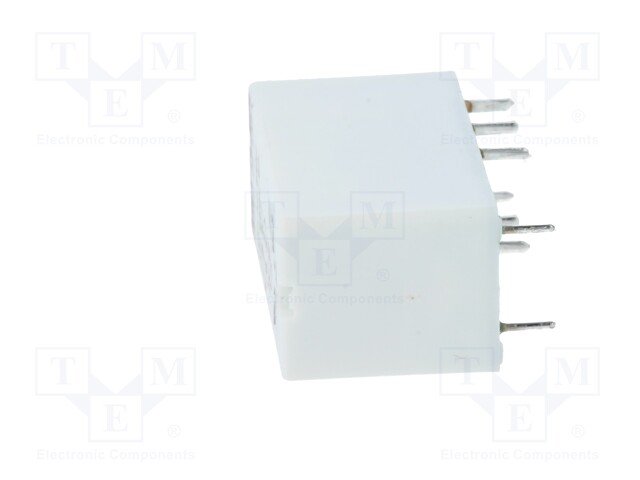

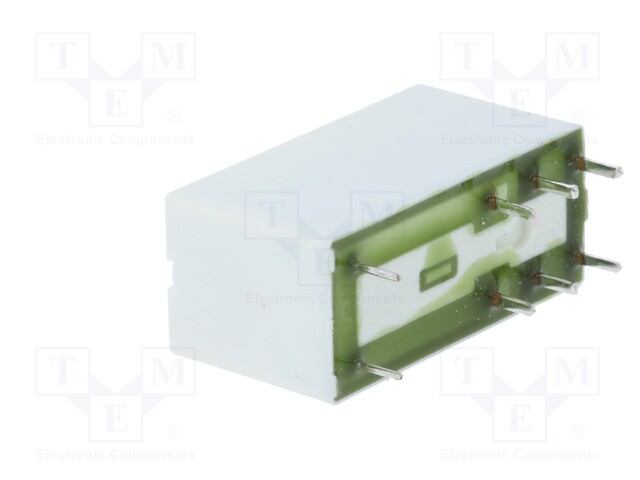

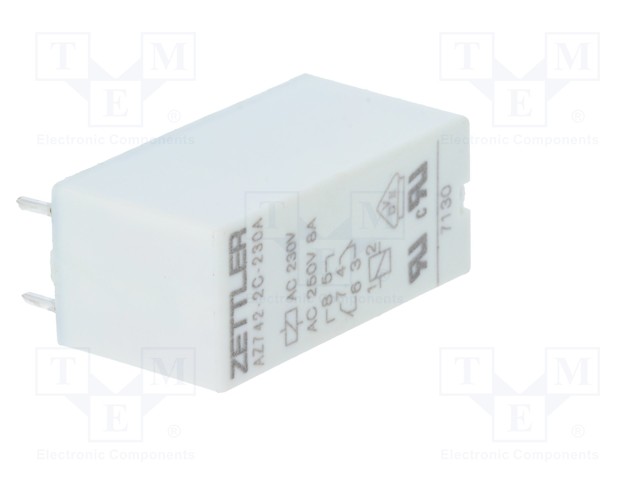

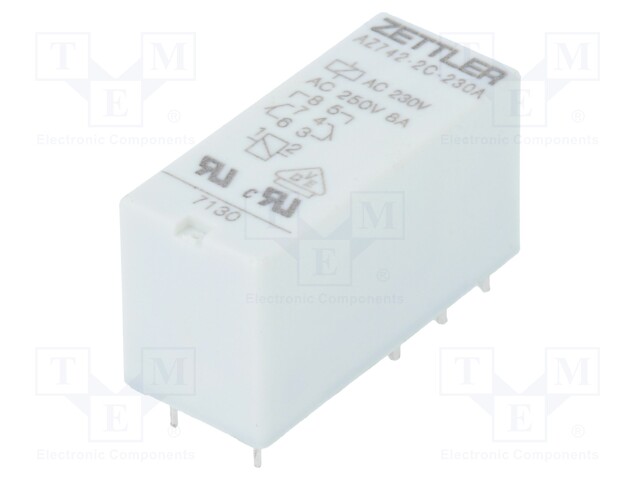

Relay: electromagnetic; DPDT; Ucoil: 230VAC; 8A/250VAC; 8A/30VDC

    Kordarv: 1.0
    Minimum quantity: 1.0
    Tootekood: AZ742-2C-230A
    Tootja: ZETTLER
    Tootja tootekood: AZ742-2C-230A
    • Mounting
    • Mounting
    • Operating temperature
    • Contact material
    • Terminal pitch
    • Body dimensions
    • Switched voltage
    • Switched voltage
    • Coil resistance
    • Contacts configuration
    • DC contacts rating @R
    • AC contacts rating @R
    • Contact current max.
    • Relay variant
    • Type of relay
    • Operate time
    • Release time

    5,74 € 5,74 € (KM-TA) 5.74 EUR

    5,74 €

    Seda kombinatsiooni ei eksisteeri.

    Lisa ostukorvi

    Product downloads

    Spetsifikatsioon tootele Relay: electromagnetic; DPDT; Ucoil: 230VAC; 8A/250VAC; 8A/30VDC

    Mounting PCB, socket
    Operating temperature -40...70°C
    Contact material AgNi
    Terminal pitch 5mm

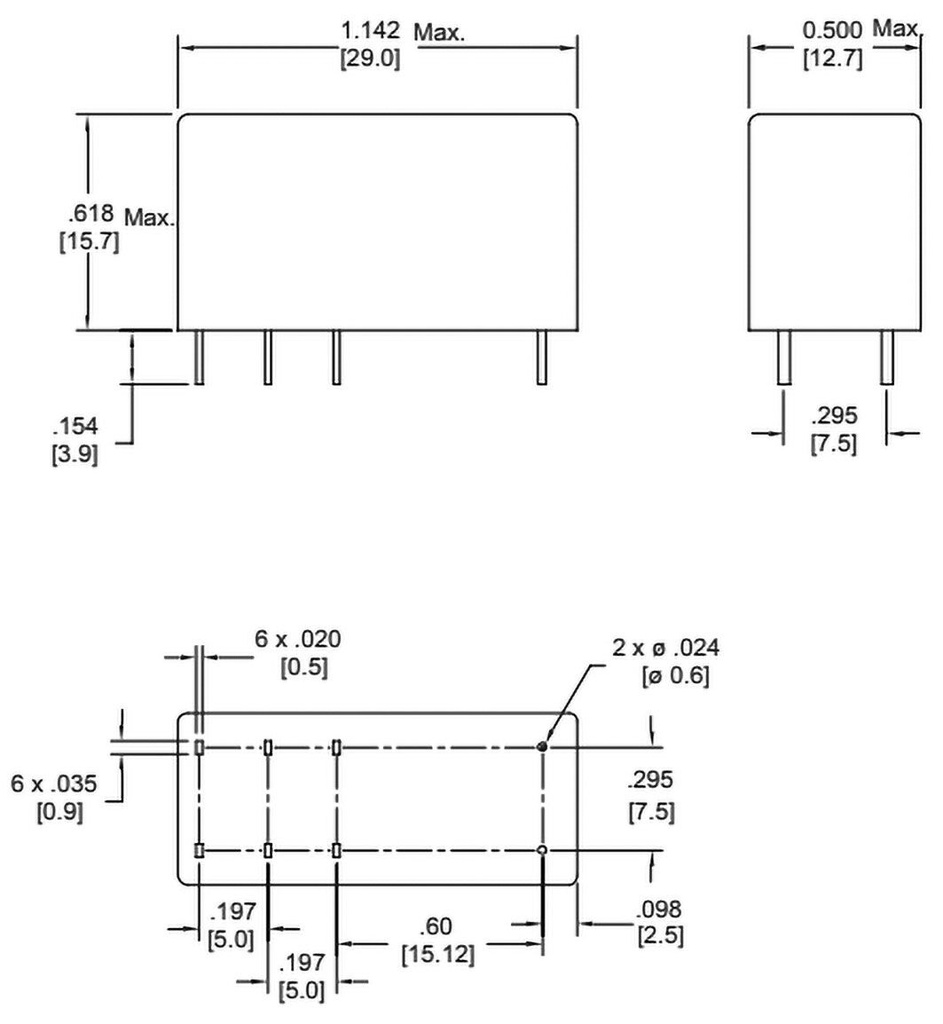

    Body dimensions 29x12.7x15.7mm
    Switched voltage ≤ 300V DC, ≤ 400V AC
    Coil resistance 38.5kΩ
    Contacts configuration DPDT
    DC contacts rating @R 8A / 30V DC
    AC contacts rating @R 8A / 250V AC
    Contact current max. 10A
    Relay variant miniature
    Type of relay electromagnetic
    Operate time 7ms
    Release time 3ms
