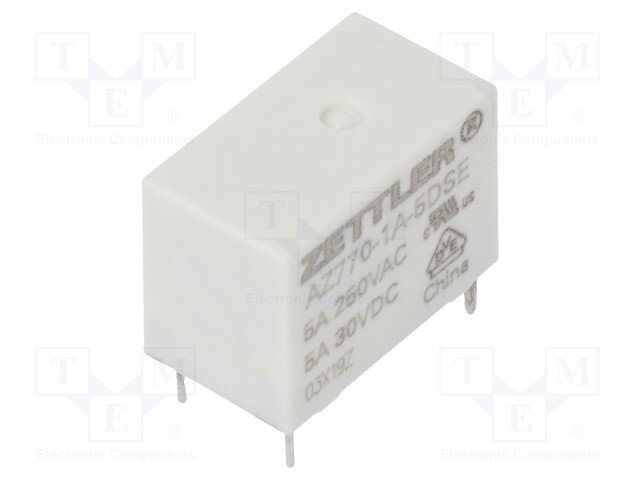

Relay: electromagnetic; SPST-NO; Ucoil: 5VDC; 5A/250VAC; 5A/30VDC

    Kordarv: 1.0
    Minimum quantity: 1.0
    Tootekood: AZ770-1A-5DSE
    Tootja: ZETTLER
    Tootja tootekood: AZ770-1A-5DSE
    • Mounting
    • Operating temperature
    • Contact material
    • Body dimensions
    • Switched voltage
    • Switched voltage
    • Coil resistance
    • Rated coil voltage
    • Contacts configuration
    • DC contacts rating @R
    • Contact resistance
    • AC contacts rating @R
    • Contact current max.
    • Relay variant
    • Type of relay
    • Coil power consumption

    1,68 € 1,68 € (KM-TA) 1.68 EUR

    1,68 €

    Seda kombinatsiooni ei eksisteeri.

    Lisa ostukorvi

    Product downloads

    Spetsifikatsioon tootele Relay: electromagnetic; SPST-NO; Ucoil: 5VDC; 5A/250VAC; 5A/30VDC

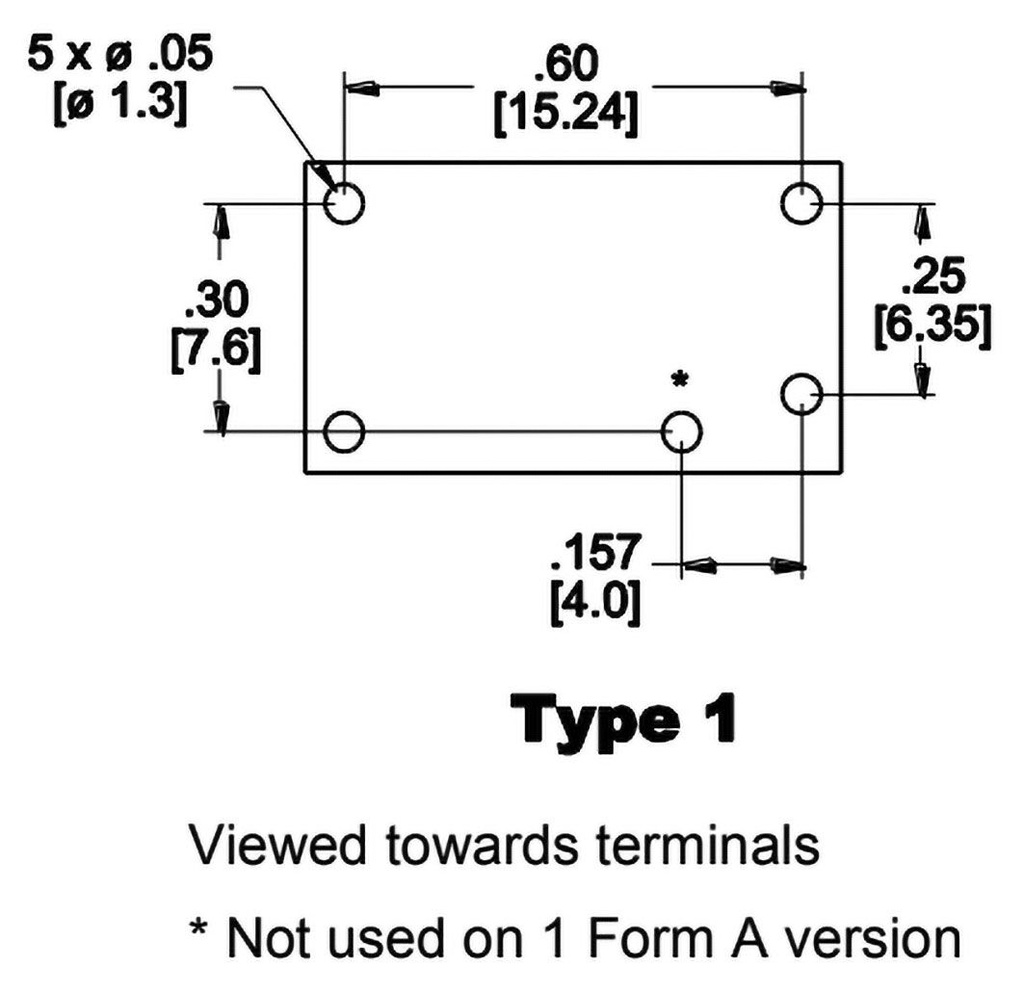

    Mounting PCB
    Operating temperature -40...85°C
    Contact material AgNi

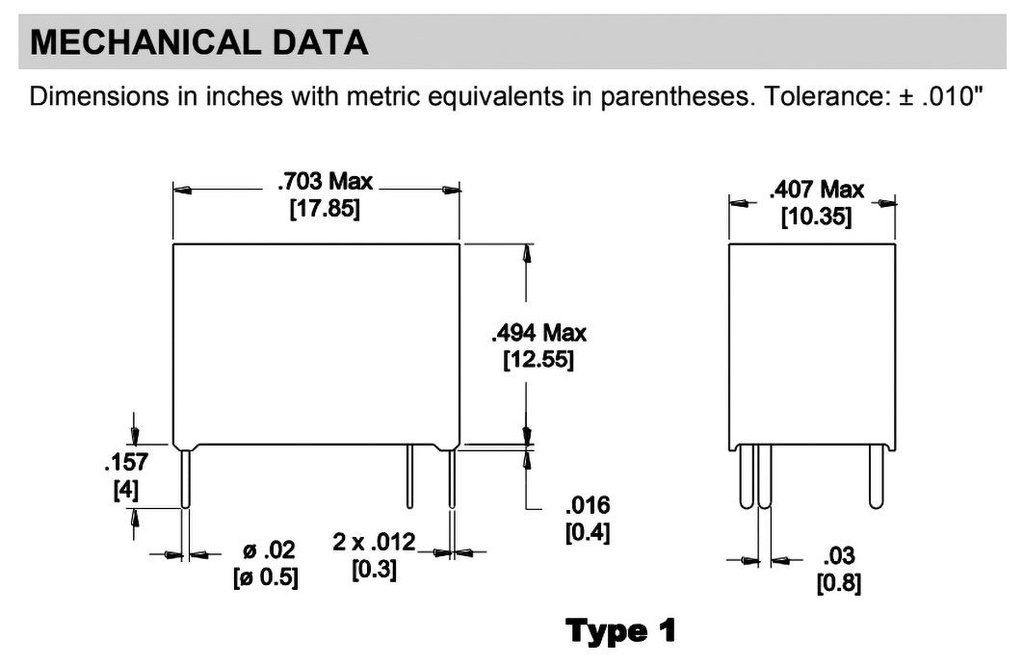

    Body dimensions 17.85x10.35x12.55mm
    Switched voltage ≤ 30V DC, ≤ 400V AC
    Coil resistance 125Ω
    Rated coil voltage 5V DC
    Contacts configuration SPST-NO
    DC contacts rating @R 5A / 30V DC
    Contact resistance 100MΩ
    AC contacts rating @R 5A / 250V AC
    Contact current max. 5A
    Relay variant miniature
    Type of relay electromagnetic
    Coil power consumption 200mW
