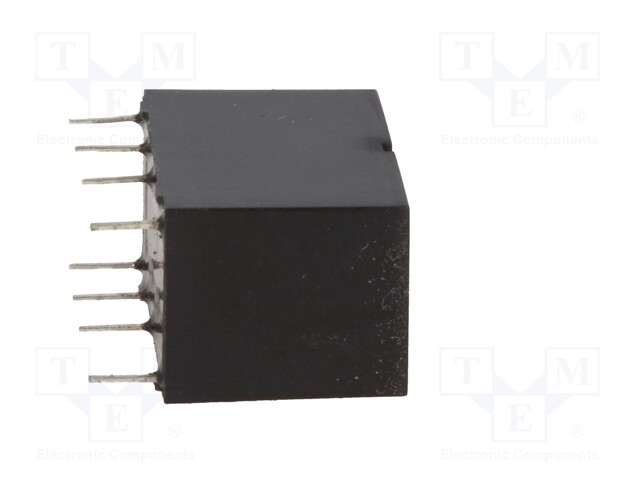

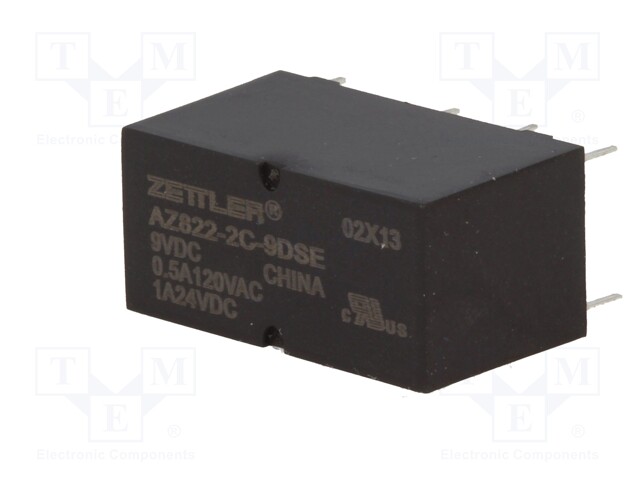

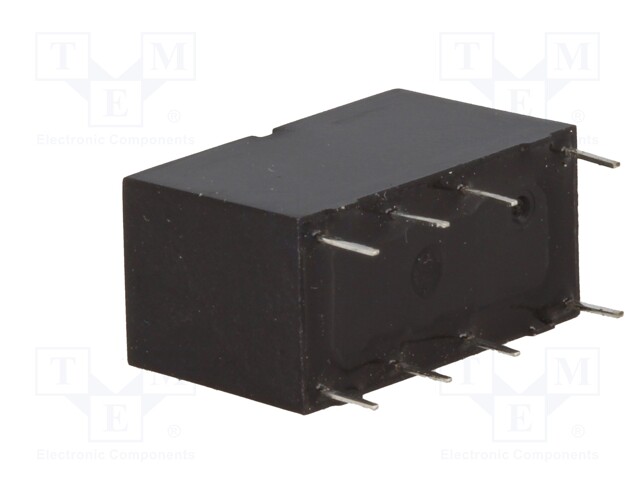

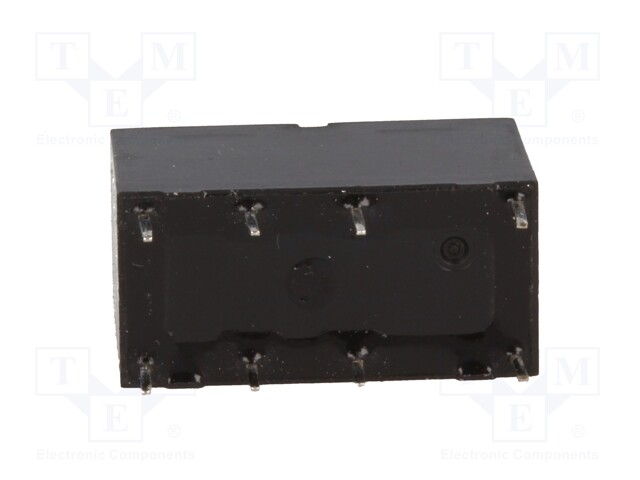

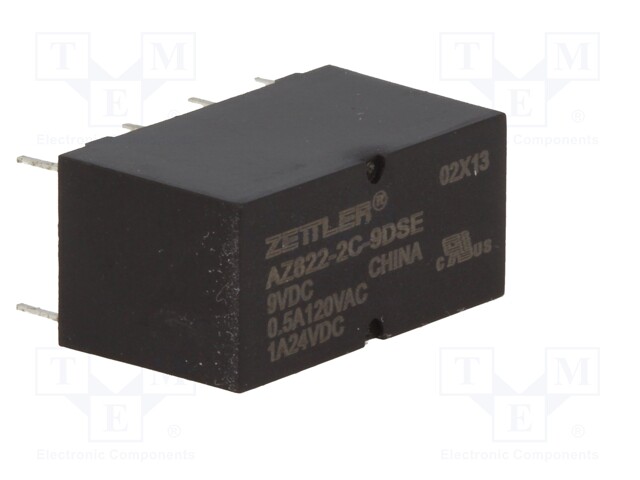

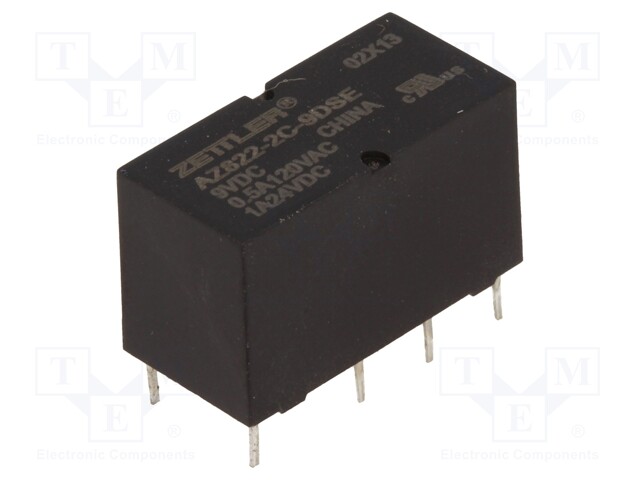

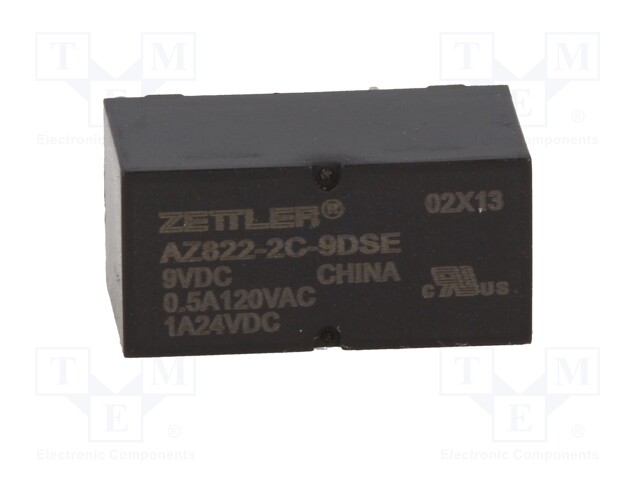

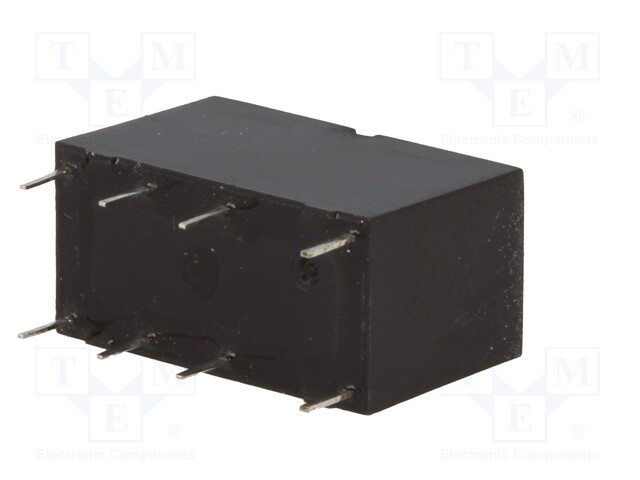

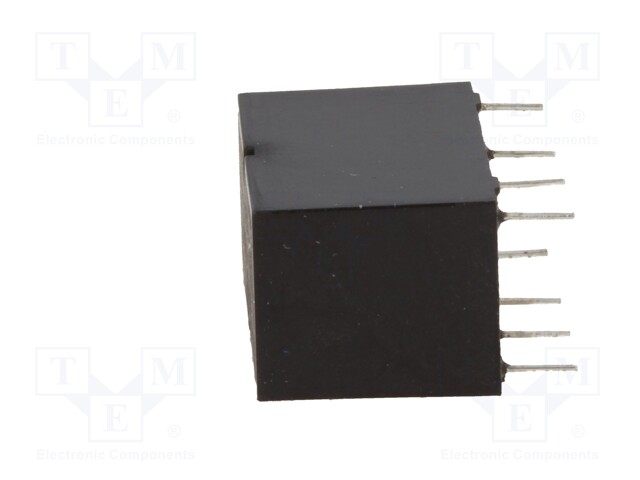

Relay: electromagnetic; DPDT; Ucoil: 9VDC; 0.5A/120VAC; 1A/24VDC

    Kordarv: 1.0
    Minimum quantity: 1.0
    Tootekood: AZ822-2C-9DSE
    Tootja: ZETTLER
    Tootja tootekood: AZ822-2C-9DSE
    • Mounting
    • Operating temperature
    • IP rating
    • Terminal pitch
    • Body dimensions
    • Switched voltage
    • Switched voltage
    • Coil resistance
    • Rated coil voltage
    • Contacts configuration
    • DC contacts rating @R
    • Contact resistance
    • AC contacts rating @R
    • Contact current max.
    • Relay variant
    • Coil voltage max.
    • Type of relay
    • Coil voltage min.
    • Coil power consumption
    • Operate time
    • Release time

    1,58 € 1,58 € (KM-TA) 1.58 EUR

    1,58 €

    Seda kombinatsiooni ei eksisteeri.

    Lisa ostukorvi

    Product downloads

    Spetsifikatsioon tootele Relay: electromagnetic; DPDT; Ucoil: 9VDC; 0.5A/120VAC; 1A/24VDC

    Mounting PCB
    Operating temperature -55...90°C
    IP rating IP64
    Terminal pitch 5mm
    Body dimensions 20x9.8x12mm
    Switched voltage ≤ 220V DC, ≤ 250V AC
    Coil resistance 540Ω
    Rated coil voltage 9V DC
    Contacts configuration DPDT
    DC contacts rating @R 1A / 24V DC
    Contact resistance 50mΩ
    AC contacts rating @R 500mA / 120V AC
    Contact current max. 2A
    Relay variant miniature
    Coil voltage max. 22.5V DC
    Type of relay electromagnetic
    Coil voltage min. 6.3V DC
    Coil power consumption 74mW
    Operate time 5ms
    Release time 2ms
