Relay: electromagnetic; DPDT; Ucoil: 24VDC; 0.5A/125VAC; 2A/30VDC

    Kordarv: 1000.0
    Minimum quantity: 1000.0
    Tootekood: AZ8462-24
    Tootja: ZETTLER
    Tootja tootekood: AZ8462-24
    • Mounting
    • Operating temperature
    • Terminal pitch
    • Body dimensions
    • Switched voltage
    • Switched voltage
    • Coil resistance
    • Rated coil voltage
    • Contacts configuration
    • DC contacts rating @R
    • Contact resistance
    • AC contacts rating @R
    • Contact current max.
    • Relay variant
    • Relay variant
    • Type of relay
    • Coil power consumption

    1,50 € 1,50 € (KM-TA) 1.5 EUR

    1,50 €

    Seda kombinatsiooni ei eksisteeri.

    Lisa ostukorvi

    Spetsifikatsioon tootele Relay: electromagnetic; DPDT; Ucoil: 24VDC; 0.5A/125VAC; 2A/30VDC

    Mounting THT
    Operating temperature -40...105°C

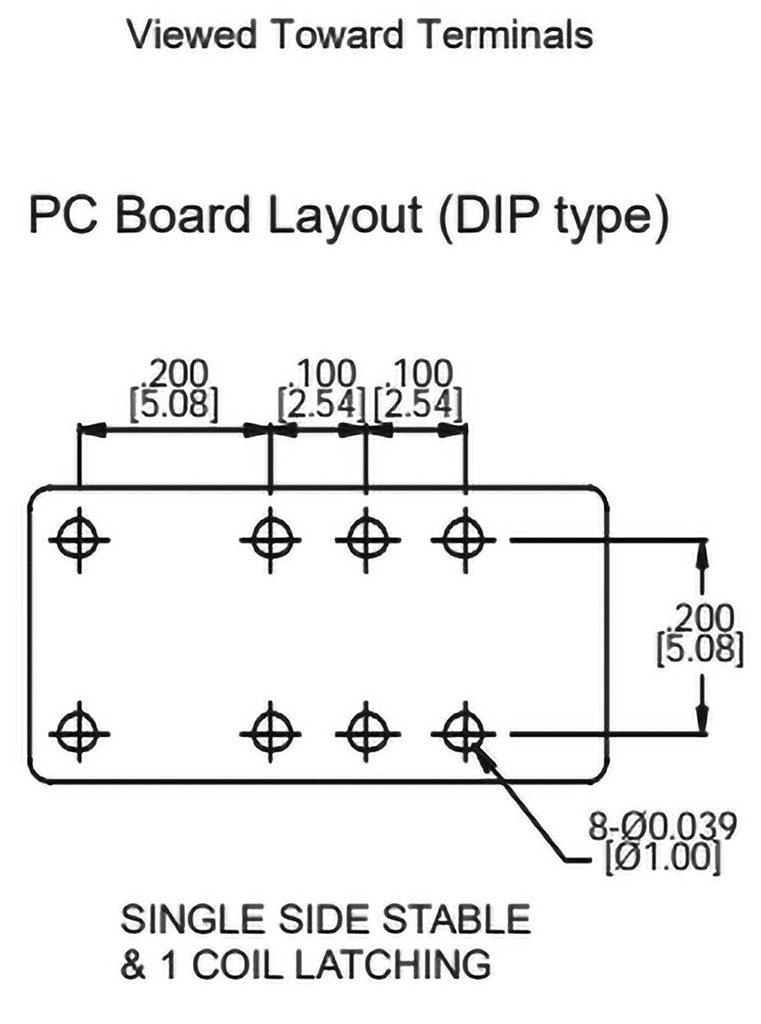

    Terminal pitch 2.54mm

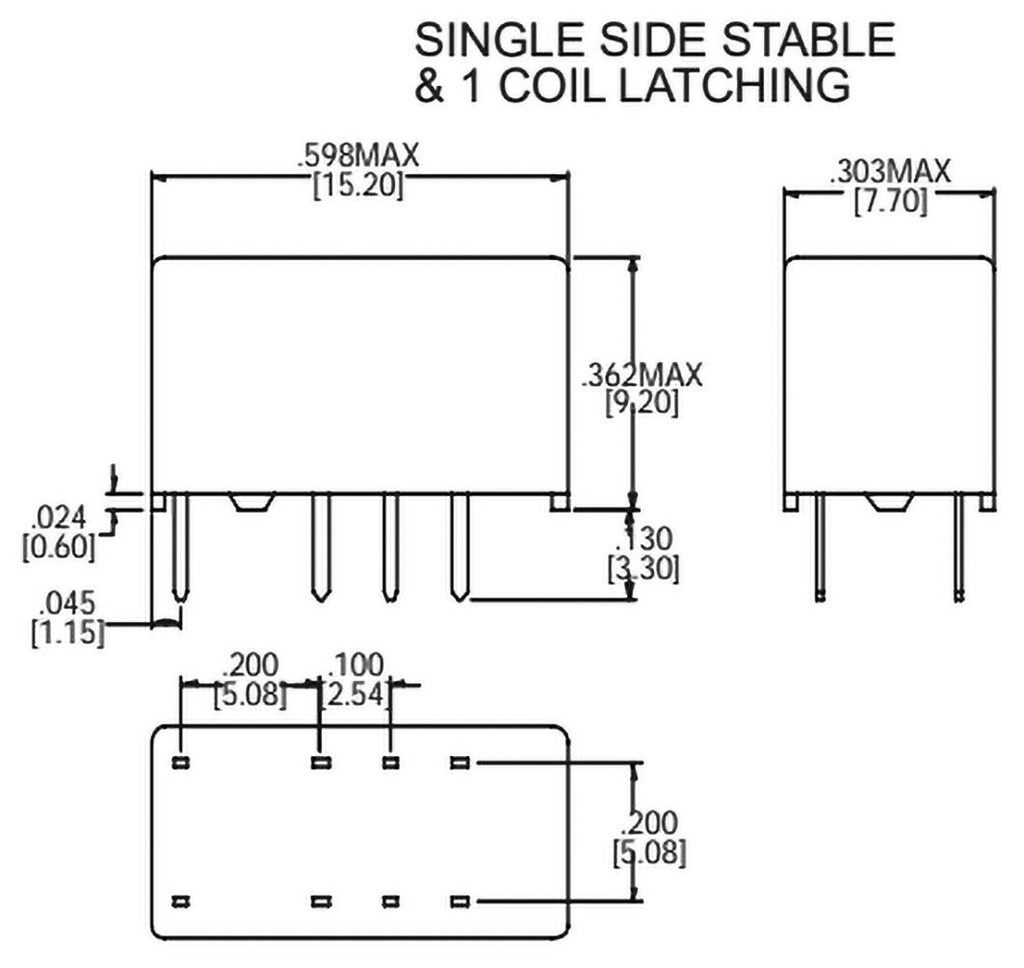

    Body dimensions 15.2x7.7x9.2mm
    Switched voltage ≤ 220V DC, ≤ 250V AC
    Coil resistance 4.114kΩ
    Rated coil voltage 24V DC
    Contacts configuration DPDT
    DC contacts rating @R 2A / 30V DC
    Contact resistance 50mΩ
    AC contacts rating @R 500mA / 125V AC
    Contact current max. 2A
    Relay variant signal, subminiature
    Type of relay electromagnetic
    Coil power consumption 79mW
