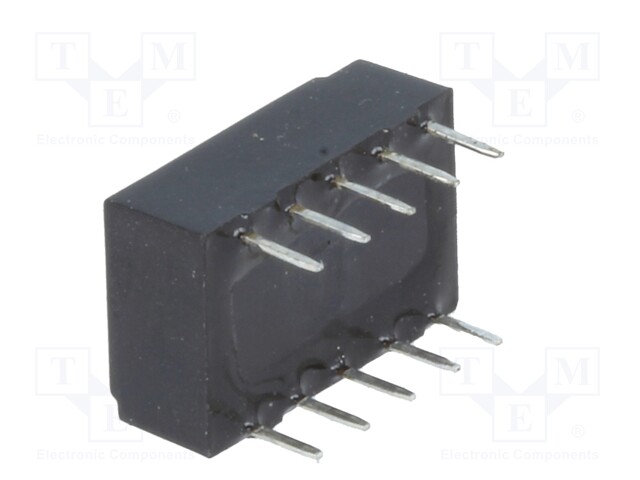

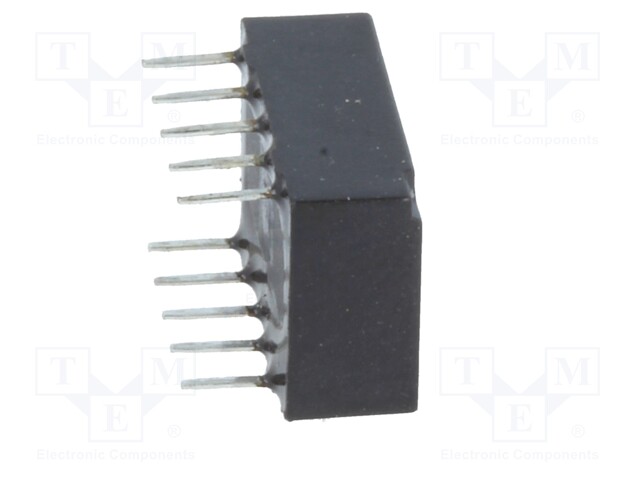

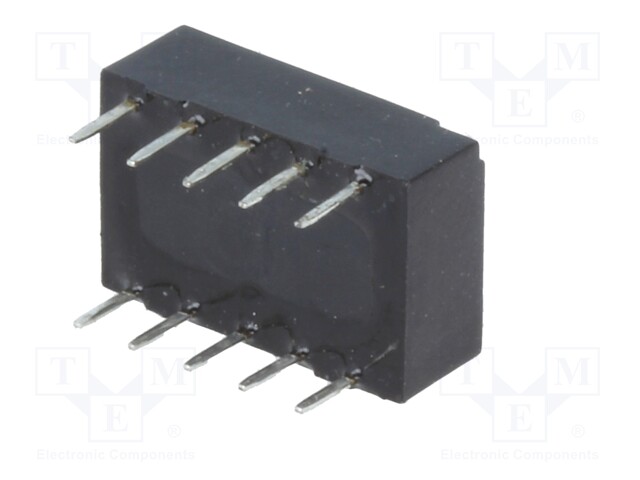

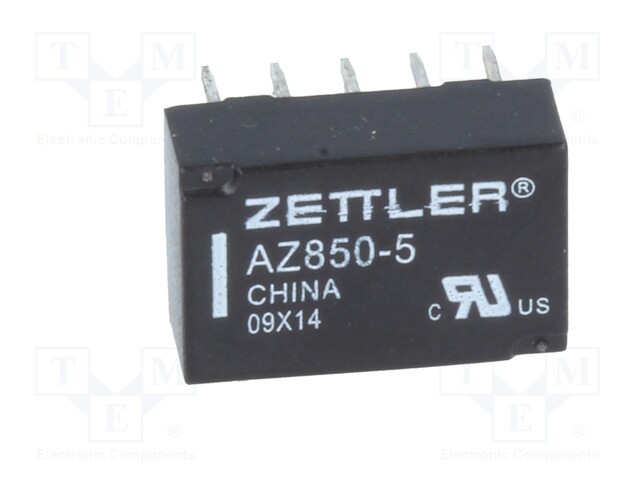

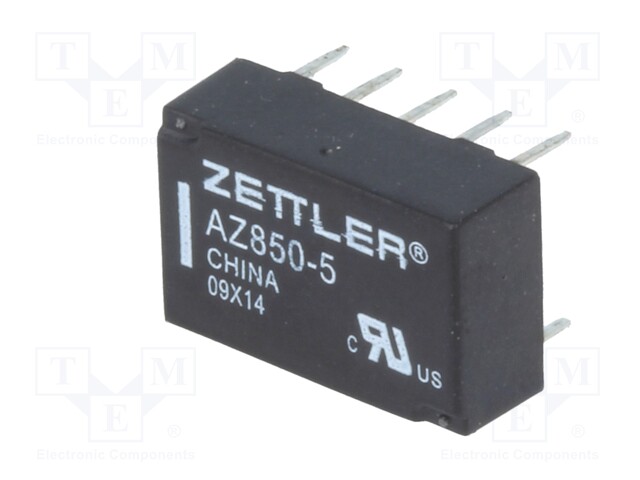

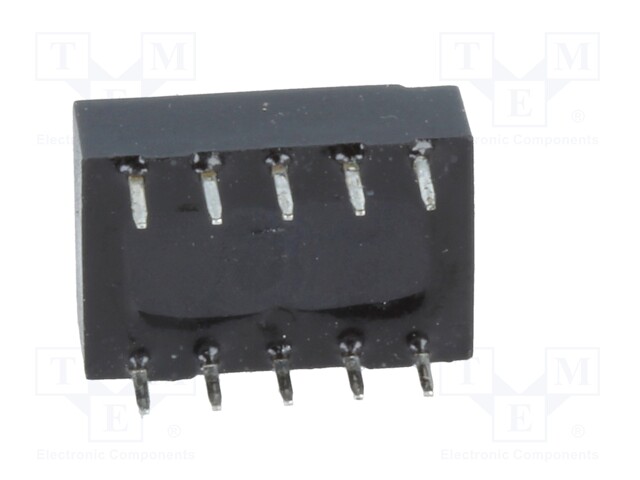

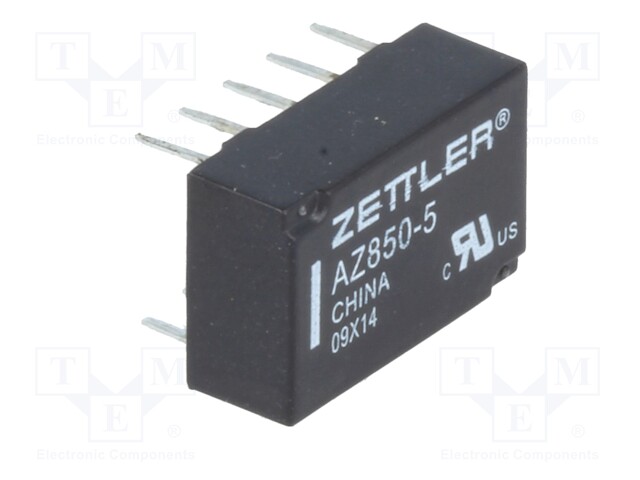

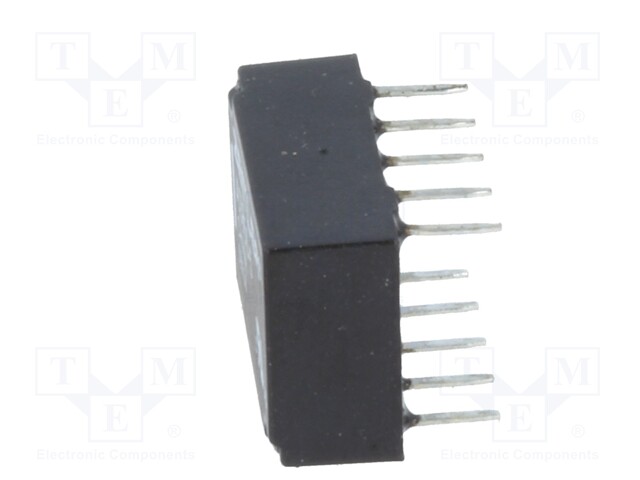

Relay: electromagnetic; DPDT; Ucoil: 5VDC; 0.5A/125VAC; 1A/30VDC

    Kordarv: 1.0
    Minimum quantity: 1.0
    Tootekood: AZ850-5
    Tootja: ZETTLER
    Tootja tootekood: AZ850-5
    • Mounting
    • Case
    • Operating temperature
    • Terminal pitch
    • Soldering temperature
    • Body dimensions
    • Mechanical durability
    • Switched voltage
    • Switched voltage
    • Switching capacity
    • Switching capacity
    • Coil resistance
    • Test voltage
    • Rated coil voltage
    • Contacts configuration
    • DC contacts rating @R
    • Contact resistance
    • AC contacts rating @R
    • Contact current max.
    • Relay variant
    • Coil voltage max.
    • Type of relay
    • Coil voltage min.
    • Coil power consumption
    • Operate time
    • Release time

    1,76 € 1,76 € (KM-TA) 1.76 EUR

    1,76 €

    Seda kombinatsiooni ei eksisteeri.

    Lisa ostukorvi

    Product downloads

    Spetsifikatsioon tootele Relay: electromagnetic; DPDT; Ucoil: 5VDC; 0.5A/125VAC; 1A/30VDC

    Mounting PCB
    Case DIP10
    Operating temperature -55...90°C
    Terminal pitch 2.54mm
    Soldering temperature 250°C
    Body dimensions 14x9x5mm
    Mechanical durability 100000000cycles
    Switched voltage ≤ 220V DC, ≤ 250V AC
    Switching capacity 30W, 50VA
    Coil resistance 178Ω
    Test voltage 1.5kV
    Rated coil voltage 5V DC
    Contacts configuration DPDT
    DC contacts rating @R 1A / 30V DC
    Contact resistance 70mΩ
    AC contacts rating @R 500mA / 125V AC
    Contact current max. 1A
    Relay variant subminiature
    Coil voltage max. 12.5V DC
    Type of relay electromagnetic
    Coil voltage min. 3.75V DC
    Coil power consumption 113mW
    Operate time 2ms
    Release time 1ms
