Relay: electromagnetic; SPST-NO; Ucoil: 5VDC; 5A/250VAC; 5A/30VDC

    Kordarv: 1000.0
    Minimum quantity: 1000.0
    Tootekood: AZ921-1A-5DE
    Tootja: ZETTLER
    Tootja tootekood: AZ921-1A-5DE
    • Mounting
    • Operating temperature
    • Contact material
    • Terminal pitch
    • Body dimensions
    • Switched voltage
    • Switched voltage
    • Coil resistance
    • Rated coil voltage
    • Contacts configuration
    • DC contacts rating @R
    • Contact resistance
    • AC contacts rating @R
    • Contact current max.
    • Relay variant
    • Type of relay
    • Coil power consumption

    1,70 € 1,70 € (KM-TA) 1.7 EUR

    1,70 €

    Seda kombinatsiooni ei eksisteeri.

    Lisa ostukorvi

    Product downloads

    Spetsifikatsioon tootele Relay: electromagnetic; SPST-NO; Ucoil: 5VDC; 5A/250VAC; 5A/30VDC

    Mounting PCB
    Operating temperature -40...85°C
    Contact material AgNi

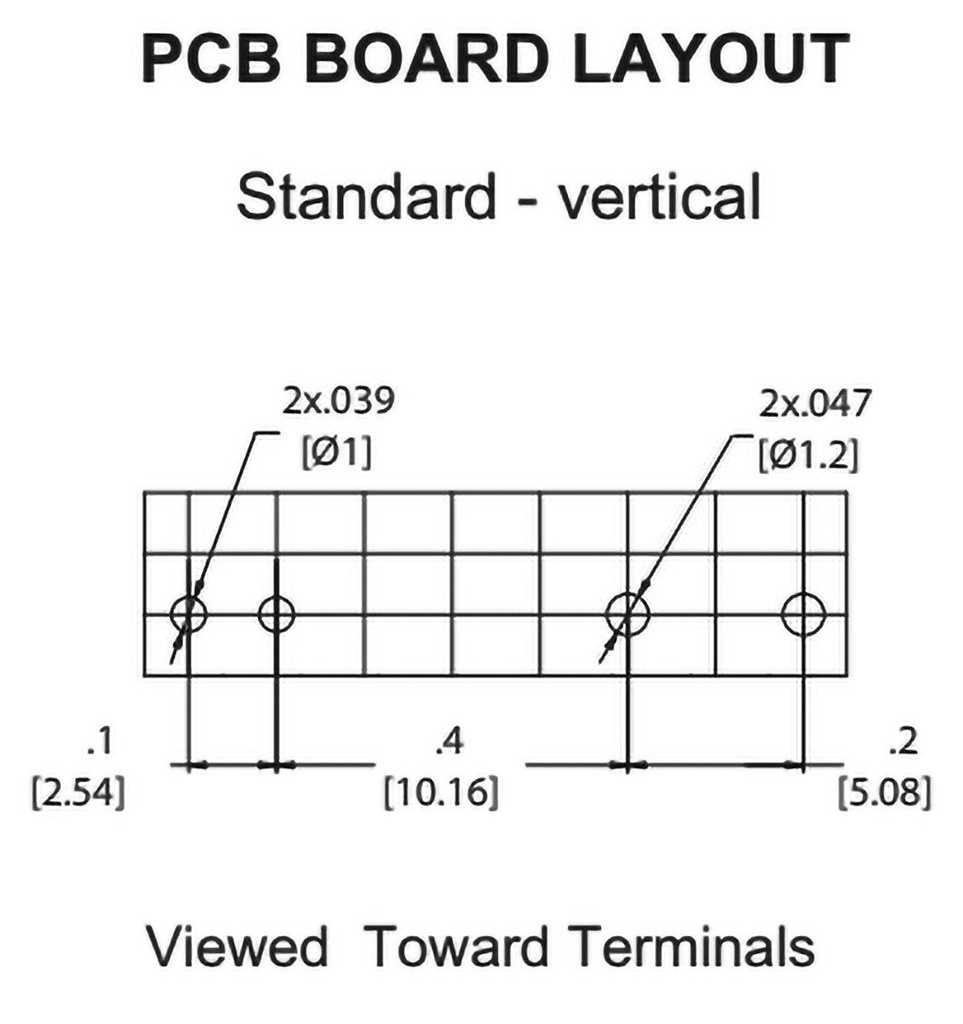

    Terminal pitch 5.08mm

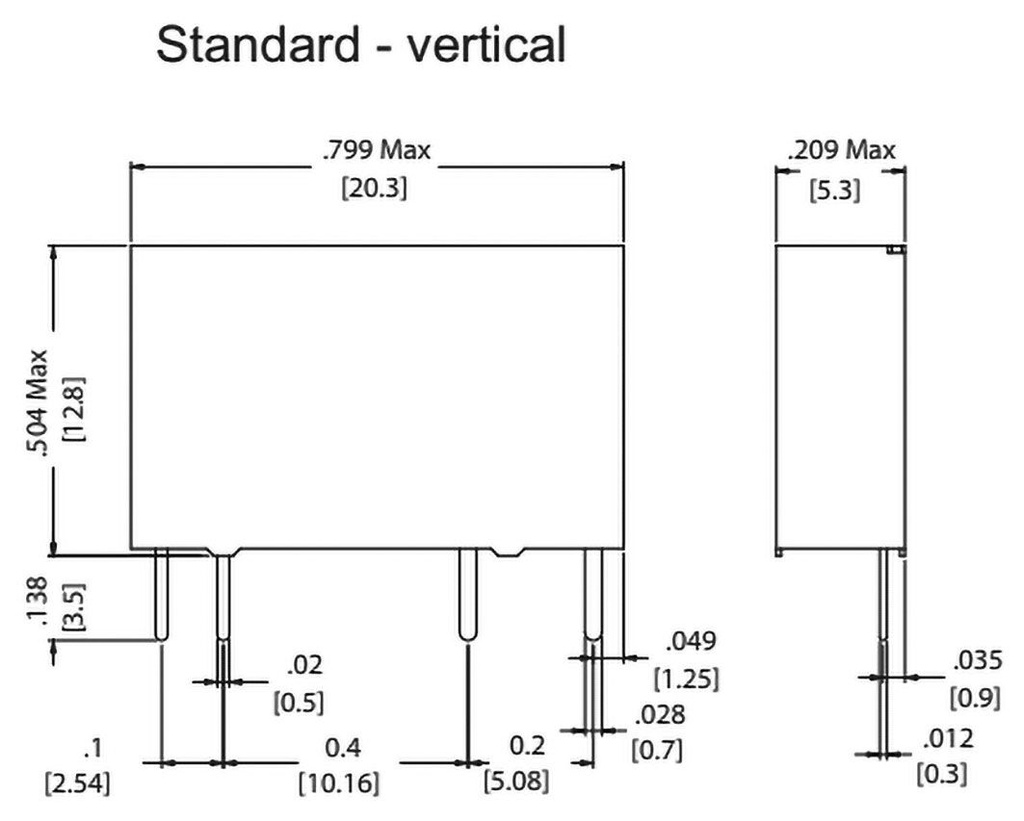

    Body dimensions 20.3x5.3x12.8mm
    Switched voltage ≤ 150V DC, ≤ 250V AC
    Coil resistance 208Ω
    Rated coil voltage 5V DC
    Contacts configuration SPST-NO
    DC contacts rating @R 5A / 30V DC
    Contact resistance 50mΩ
    AC contacts rating @R 5A / 250V AC
    Contact current max. 5A
    Relay variant interface
    Type of relay electromagnetic
    Coil power consumption 58mW
