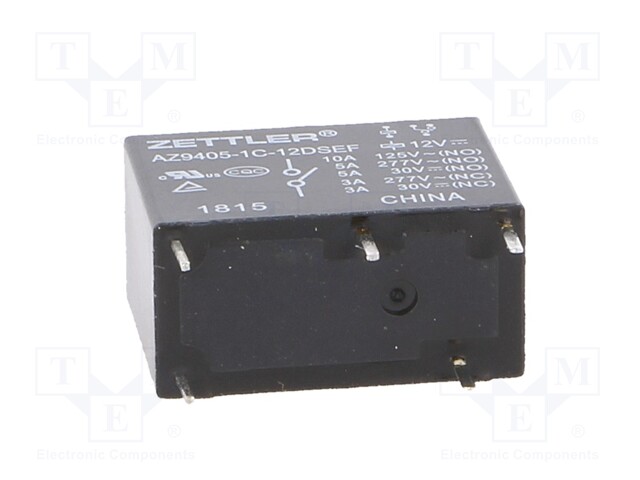

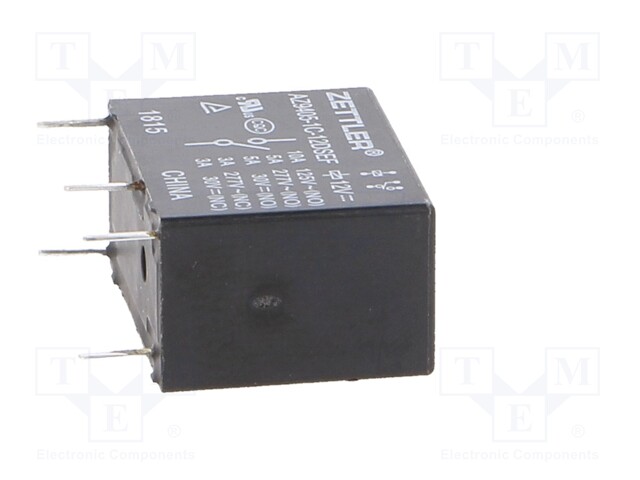

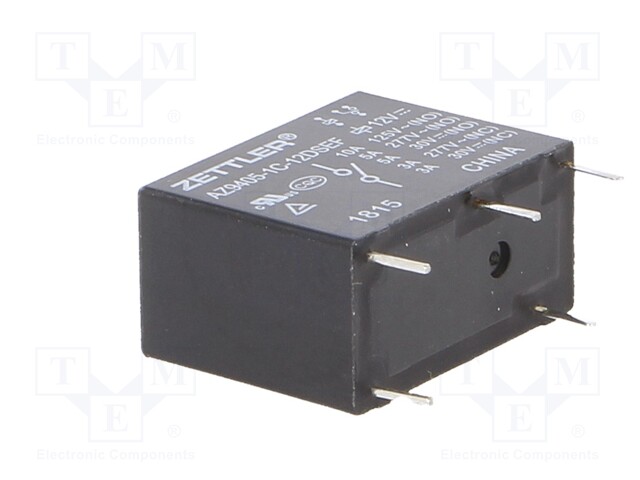

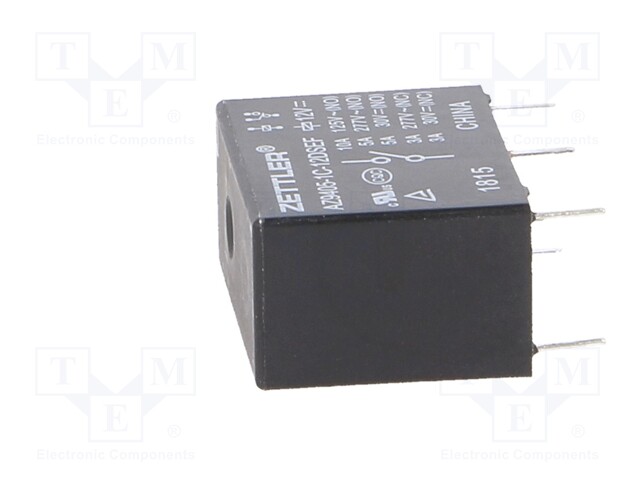

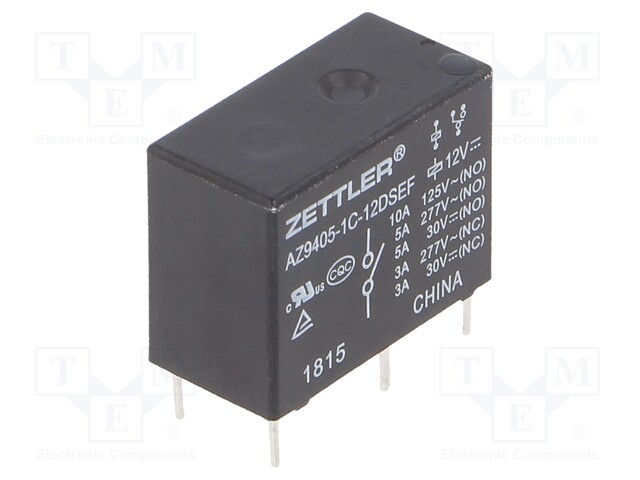

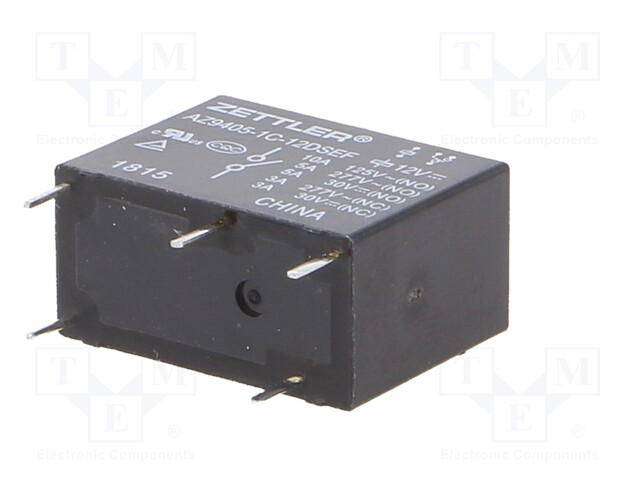

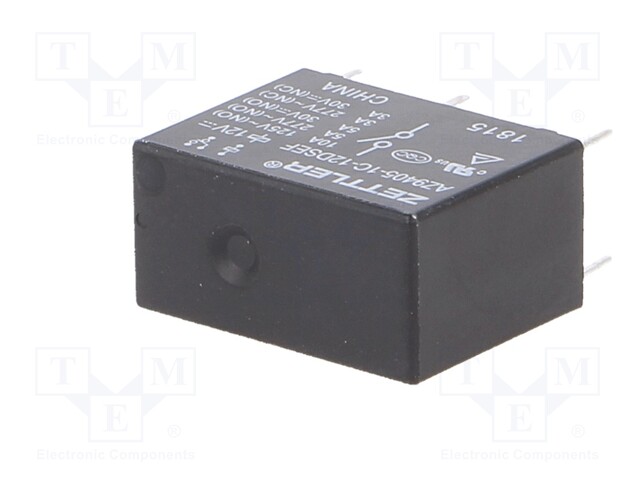

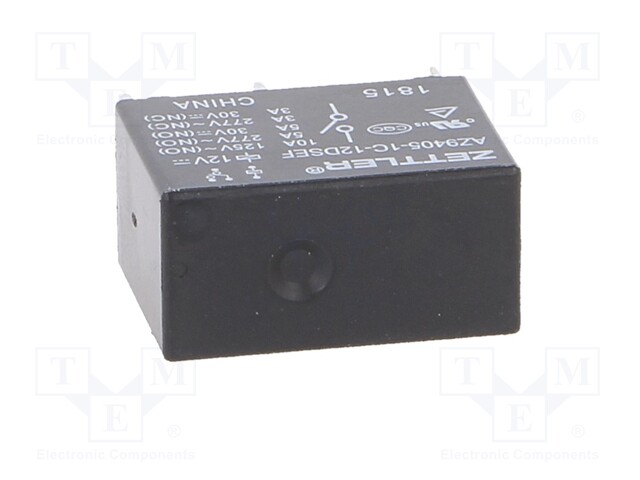

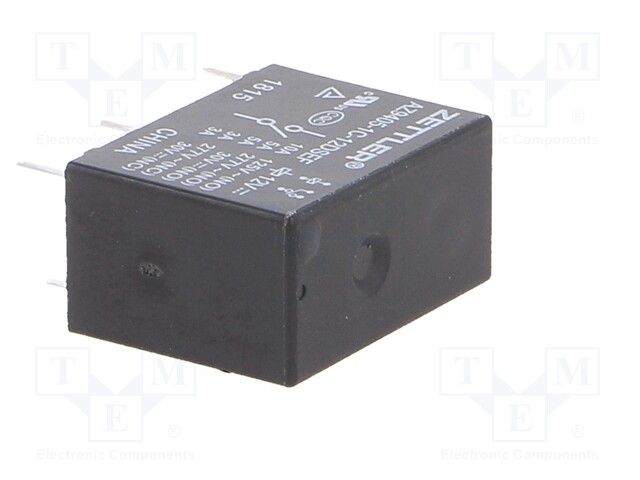

Relay: electromagnetic; SPDT; Ucoil: 12VDC; 5A/277VAC; 5A/30VDC

    Kordarv: 1.0
    Minimum quantity: 1.0
    Tootekood: AZ9405-1C-12DSEF
    Tootja: ZETTLER
    Tootja tootekood: AZ9405-1C-12DSEF
    • Mounting
    • Operating temperature
    • Terminal pitch
    • Body dimensions
    • Switched voltage
    • Switched voltage
    • Coil resistance
    • Rated coil voltage
    • Contacts configuration
    • DC contacts rating @R
    • Contact resistance
    • AC contacts rating @R
    • Contact current max.
    • Relay variant
    • Type of relay
    • Coil power consumption

    1,91 € 1,91 € (KM-TA) 1.9100000000000001 EUR

    1,91 €

    Seda kombinatsiooni ei eksisteeri.

    Lisa ostukorvi

    Product downloads

    Spetsifikatsioon tootele Relay: electromagnetic; SPDT; Ucoil: 12VDC; 5A/277VAC; 5A/30VDC

    Mounting PCB
    Operating temperature -40...85°C

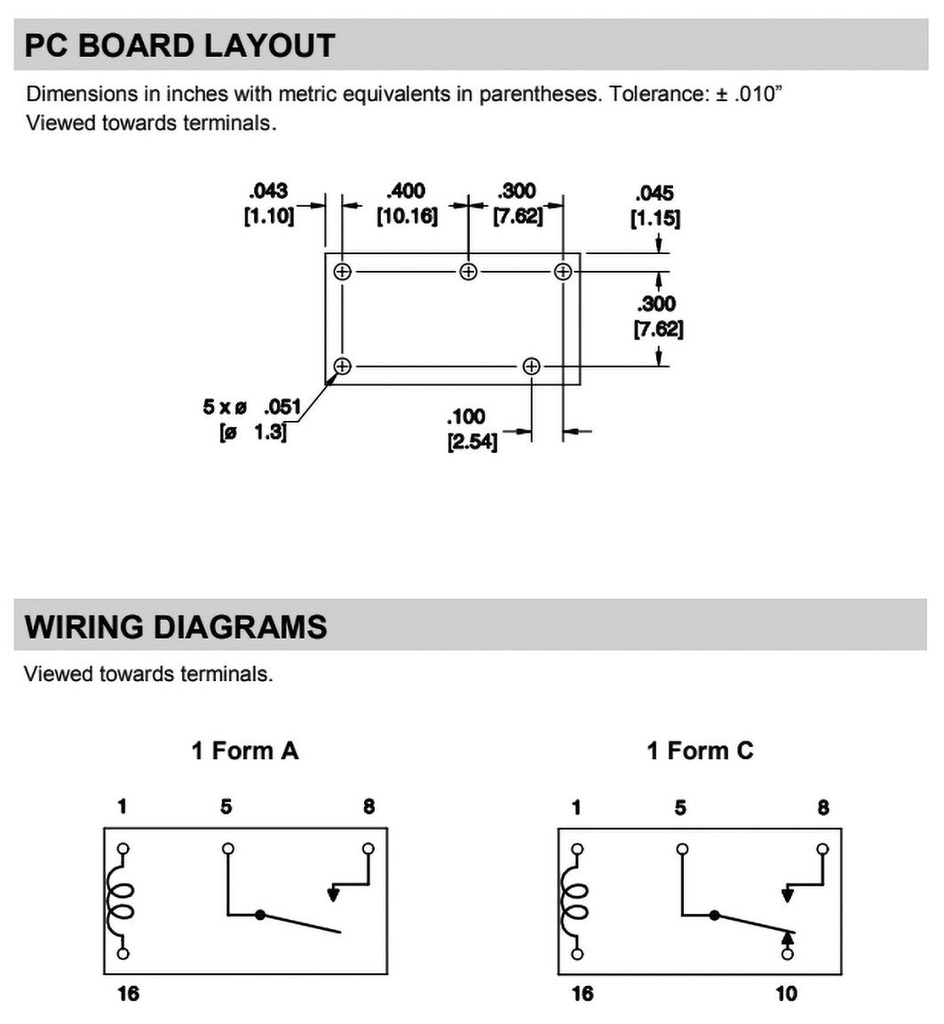

    Terminal pitch 7.62mm

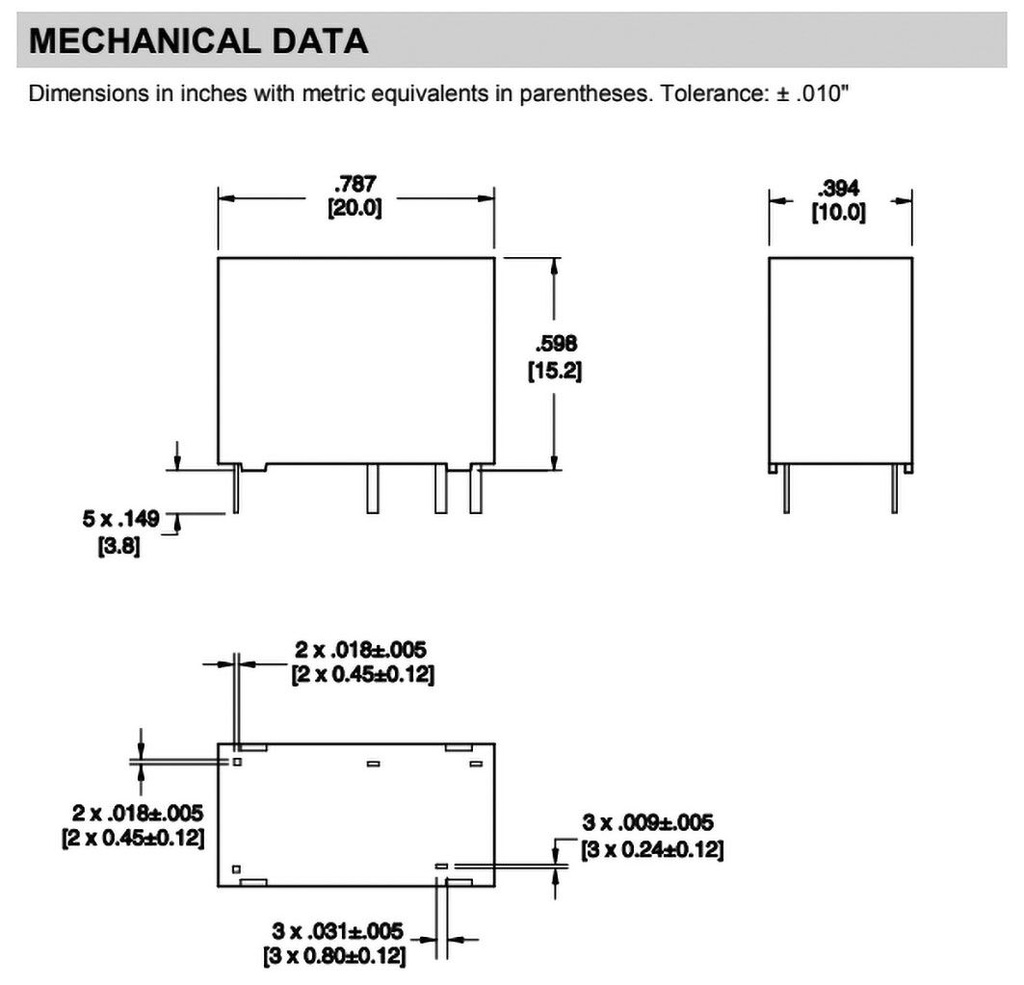

    Body dimensions 20x10x15.2mm
    Switched voltage ≤ 30V DC, ≤ 277V AC
    Coil resistance 720Ω
    Rated coil voltage 12V DC
    Contacts configuration SPDT
    DC contacts rating @R 5A / 30V DC
    Contact resistance 100MΩ
    AC contacts rating @R 5A / 277V AC
    Contact current max. 10A
    Relay variant miniature
    Type of relay electromagnetic
    Coil power consumption 200mW
