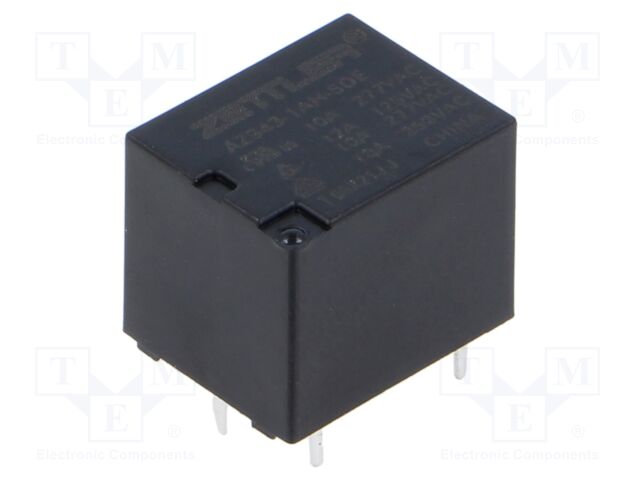

Relay: electromagnetic; SPST-NO; Ucoil: 5VDC; 15A/125VAC; 15A; IP64

    Kordarv: 1.0
    Minimum quantity: 1.0
    Tootekood: AZ943-1AH-5DE
    Tootja: ZETTLER
    Tootja tootekood: AZ943-1AH-5DE
    • Mounting
    • Operating temperature
    • IP rating
    • Contact material
    • Terminal pitch
    • Switched voltage
    • Switched voltage
    • Rated coil voltage
    • Contacts configuration
    • DC contacts rating @R
    • Contact resistance
    • AC contacts rating @R
    • Contact current max.
    • Relay variant
    • Type of relay
    • Coil power consumption
    • Operate time
    • Release time

    1,37 € 1,37 € (KM-TA) 1.37 EUR

    1,37 €

    Seda kombinatsiooni ei eksisteeri.

    Lisa ostukorvi

    Product downloads

    Spetsifikatsioon tootele Relay: electromagnetic; SPST-NO; Ucoil: 5VDC; 15A/125VAC; 15A; IP64

    Mounting PCB
    Operating temperature -40...90°C
    IP rating IP64
    Contact material AgSnO<sub>2</sub>
    Terminal pitch 2mm
    Switched voltage ≤ 30V DC, ≤ 300V AC
    Rated coil voltage 5V DC
    Contacts configuration SPST-NO
    DC contacts rating @R 10A / 30V DC
    Contact resistance 100MΩ
    AC contacts rating @R 12A / 125V AC
    Contact current max. 15A
    Relay variant miniature
    Type of relay electromagnetic
    Coil power consumption 203mW
    Operate time 10ms
    Release time 5ms
