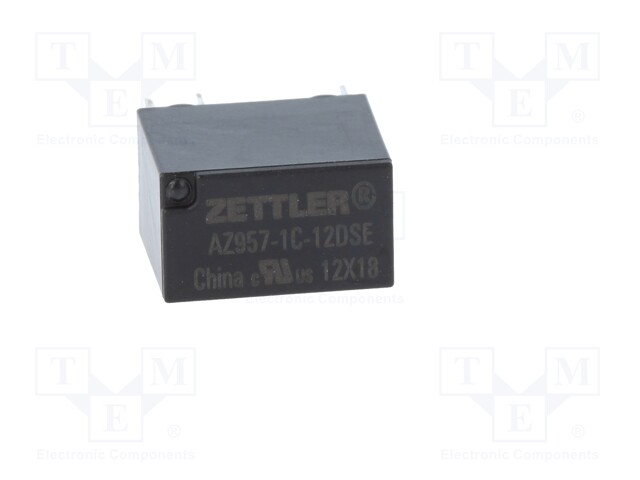

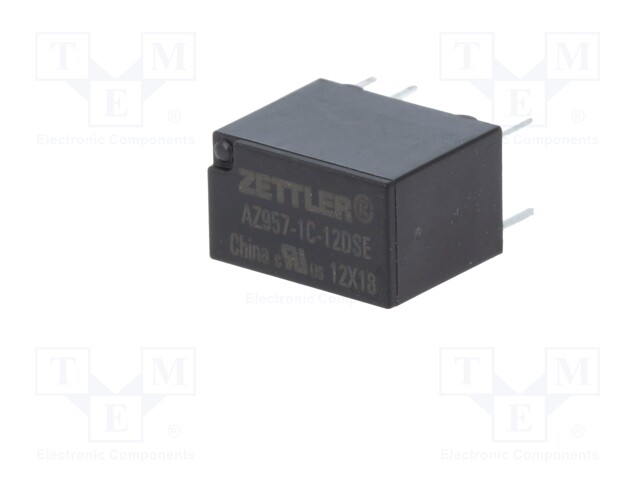

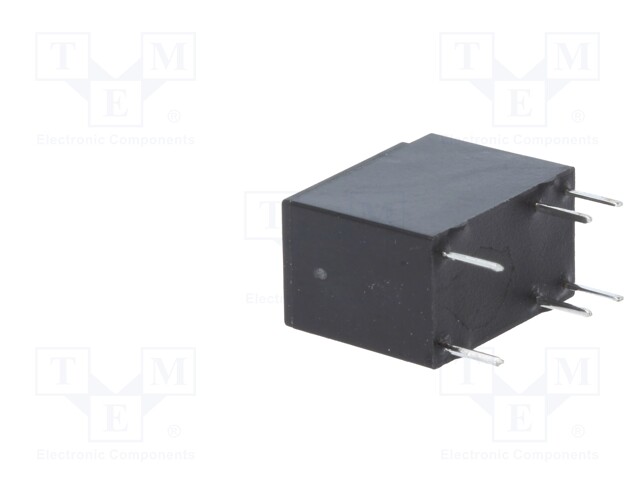

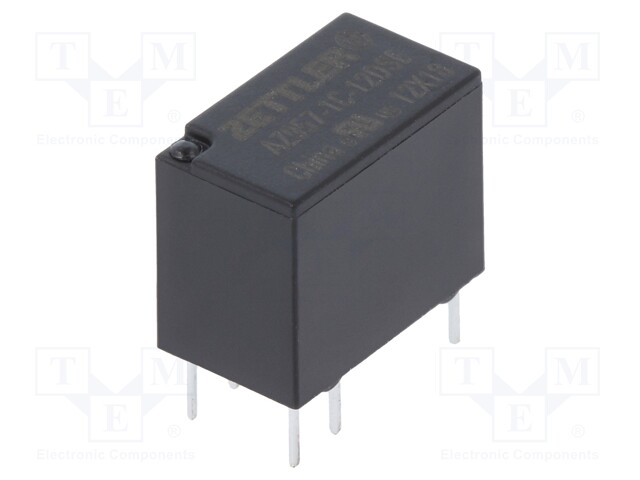

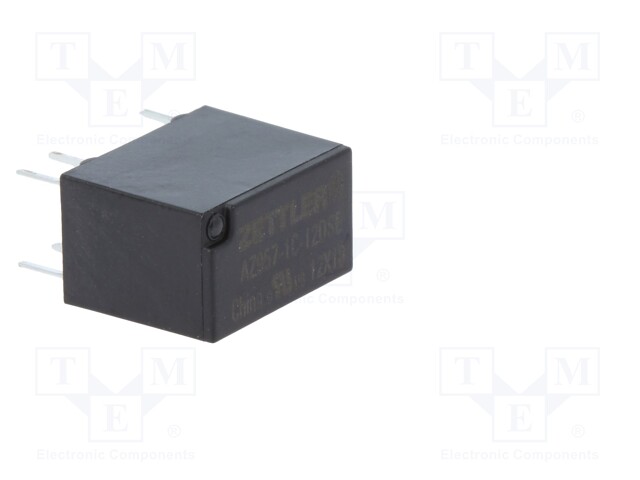

Relay: electromagnetic; SPDT; Ucoil: 12VDC; 0.5A/125VAC; 1A/30VDC

    Kordarv: 1.0
    Minimum quantity: 1.0
    Tootekood: AZ957-1C-12DSE
    Tootja: ZETTLER
    Tootja tootekood: AZ957-1C-12DSE
    • Mounting
    • Operating temperature
    • Contact material
    • Terminal pitch
    • Switched voltage
    • Switched voltage
    • Coil resistance
    • Rated coil voltage
    • Contacts configuration
    • DC contacts rating @R
    • AC contacts rating @R
    • Contact current max.
    • Relay variant
    • Type of relay
    • Operate time
    • Release time

    2,46 € 2,46 € (KM-TA) 2.46 EUR

    2,46 €

    Seda kombinatsiooni ei eksisteeri.

    Lisa ostukorvi

    Product downloads

    Spetsifikatsioon tootele Relay: electromagnetic; SPDT; Ucoil: 12VDC; 0.5A/125VAC; 1A/30VDC

    Mounting PCB
    Operating temperature -40...80°C
    Contact material AgPd/Au 0,2μm

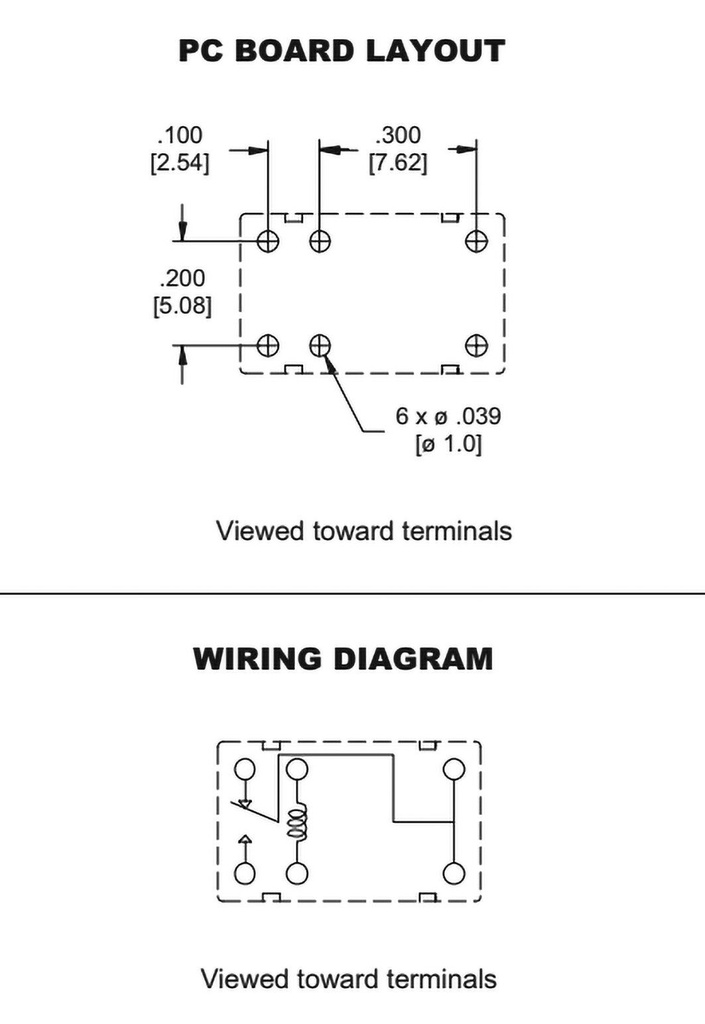

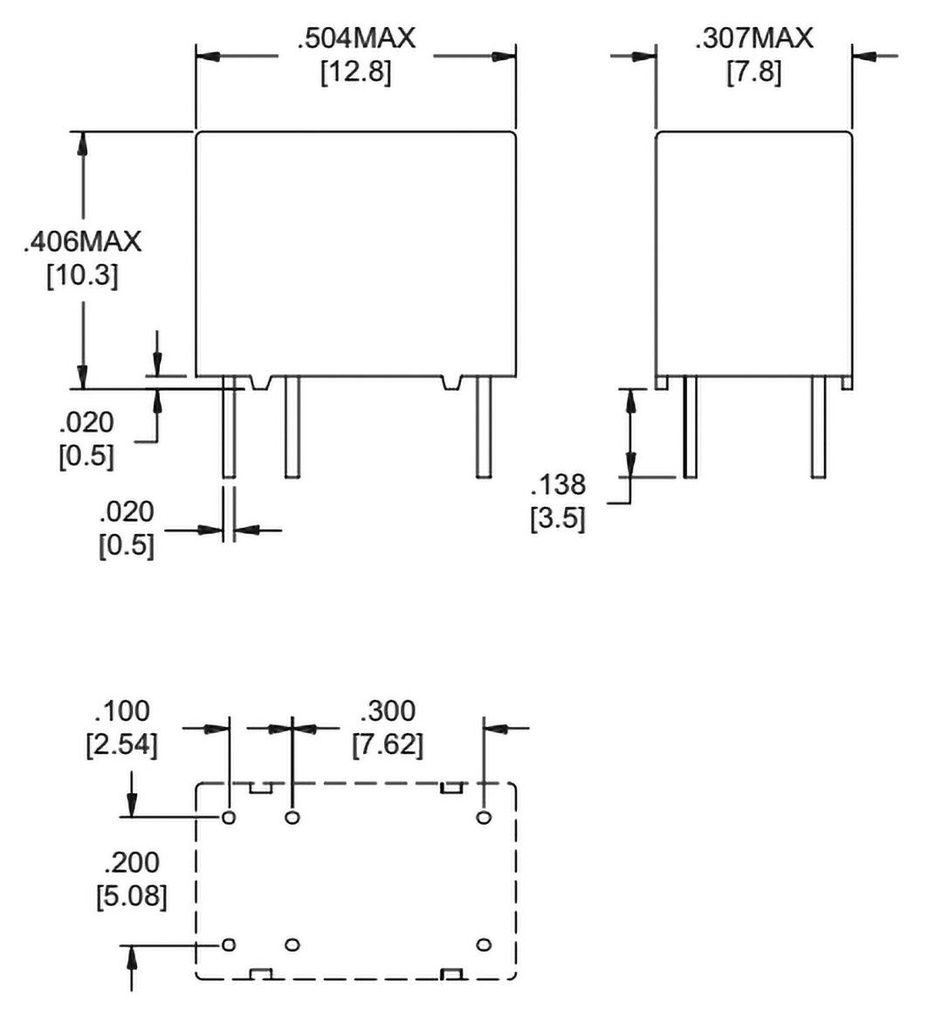

    Terminal pitch 2.54mm
    Switched voltage ≤ 60V DC, ≤ 125V AC
    Coil resistance 960Ω
    Rated coil voltage 12V DC
    Contacts configuration SPDT
    DC contacts rating @R 1A / 30V DC
    AC contacts rating @R 500mA / 125V AC
    Contact current max. 2A
    Relay variant miniature
    Type of relay electromagnetic
    Operate time 5ms
    Release time 1ms
