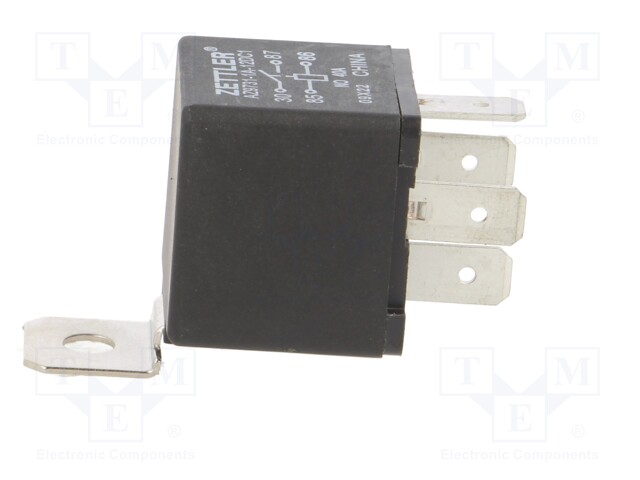

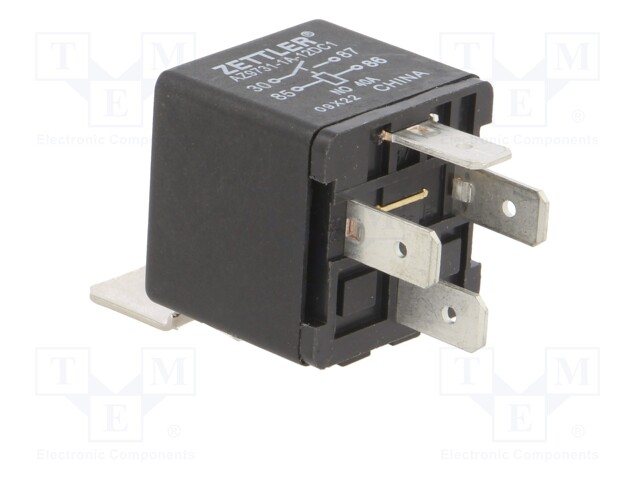

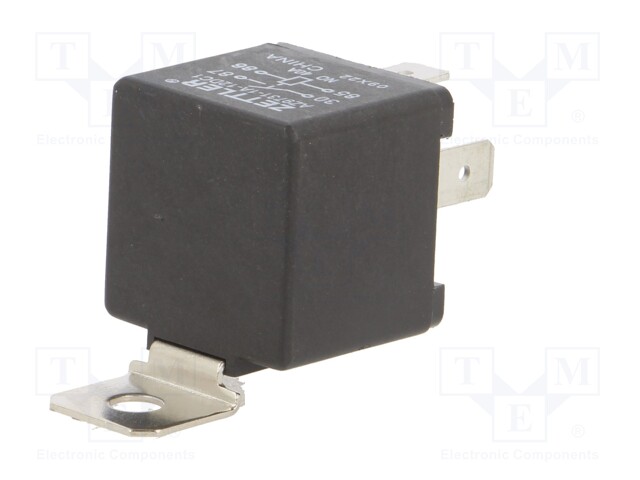

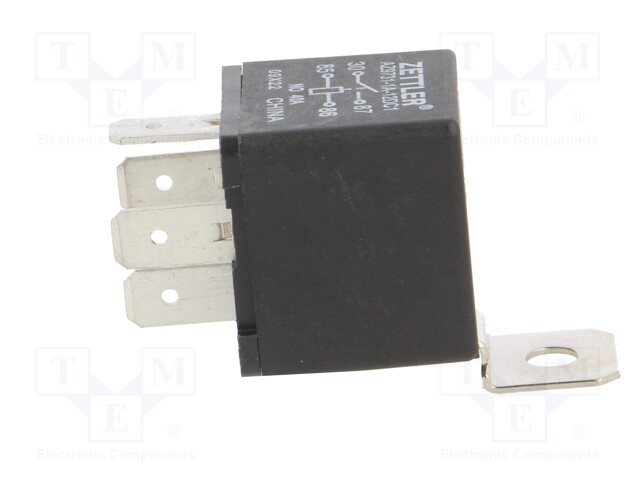

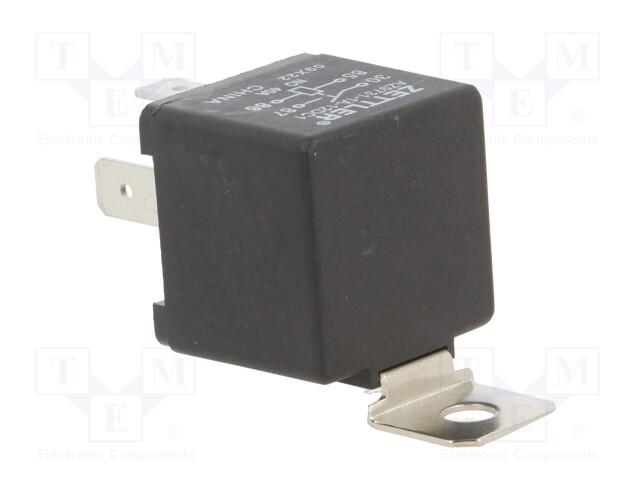

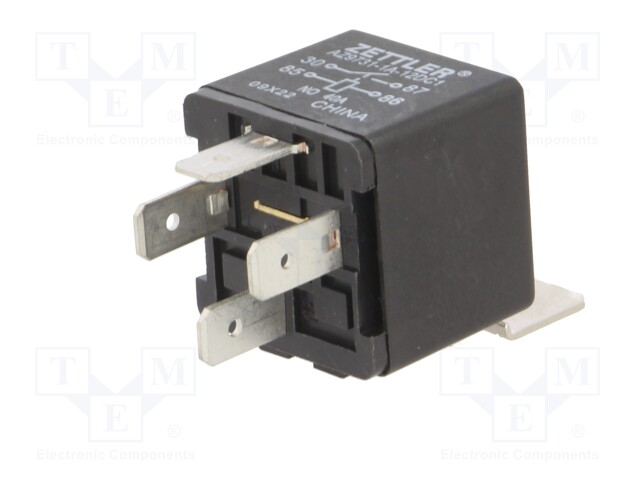

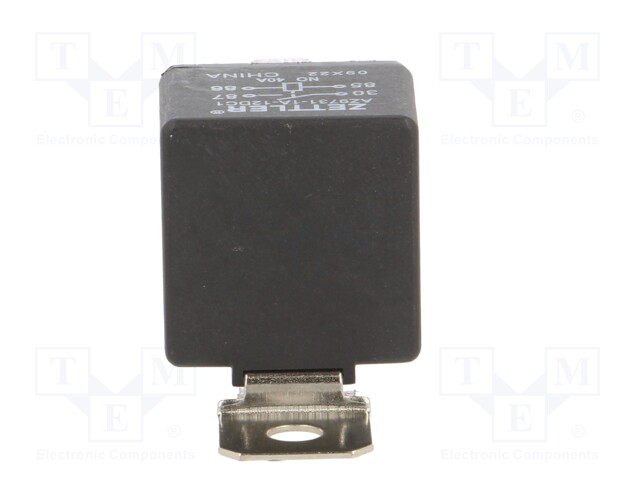

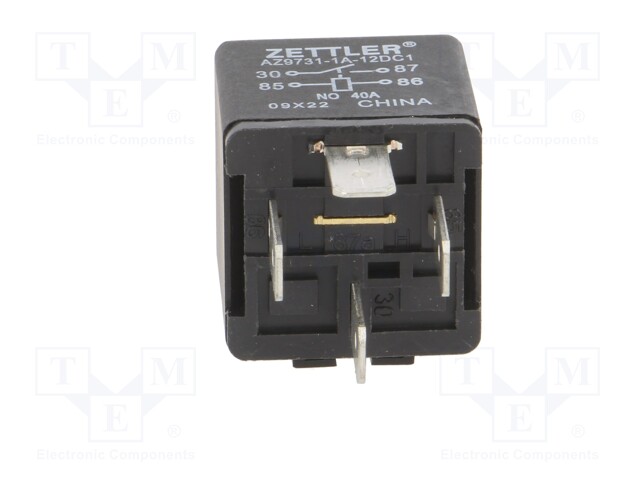

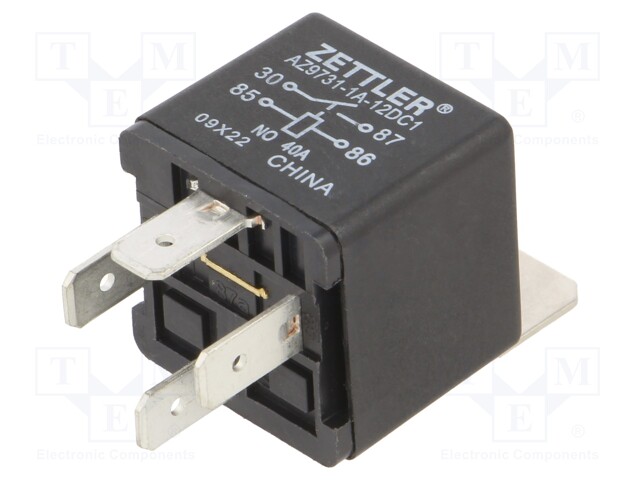

Relay: electromagnetic; SPST-NO; Ucoil: 12VDC; 40A; automotive

    Kordarv: 1.0
    Minimum quantity: 1.0
    Tootekood: AZ9731-1A-12DC1
    Tootja: ZETTLER
    Tootja tootekood: AZ9731-1A-12DC1
    • Mounting
    • Mounting
    • Operating temperature
    • Leads
    • Contact material
    • Body dimensions
    • Switched voltage
    • Coil resistance
    • Rated coil voltage
    • Contacts configuration
    • DC contacts rating @R
    • Contact resistance
    • Contact current max.
    • Relay variant
    • Type of relay
    • Coil power consumption

    2,70 € 2,70 € (KM-TA) 2.7 EUR

    2,70 €

    Seda kombinatsiooni ei eksisteeri.

    Lisa ostukorvi

    Product downloads

    Spetsifikatsioon tootele Relay: electromagnetic; SPST-NO; Ucoil: 12VDC; 40A; automotive

    Mounting on panel, socket
    Operating temperature -40...125°C
    Leads connectors
    Contact material AgSnO<sub>2</sub>

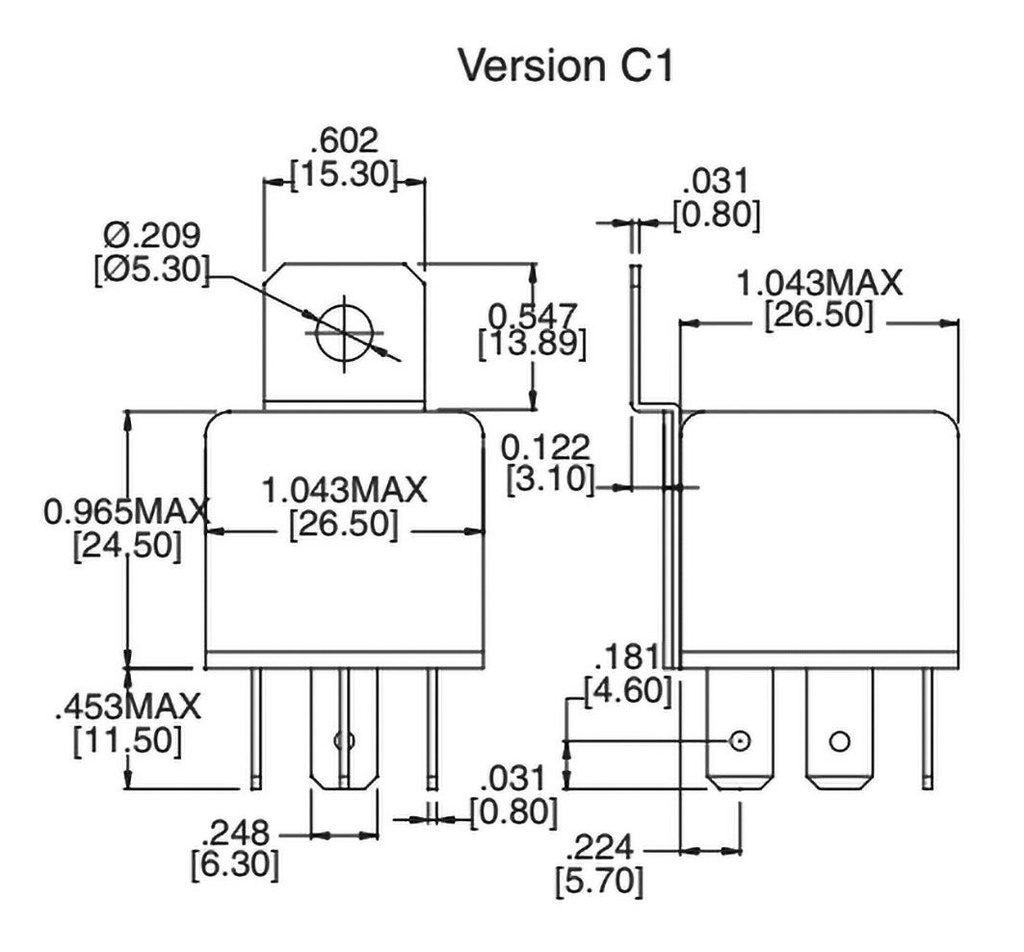

    Body dimensions 49.9x26.5x26.5mm
    Switched voltage ≤ 28V DC
    Coil resistance 90Ω
    Rated coil voltage 12V DC
    Contacts configuration SPST-NO
    DC contacts rating @R 40A / 14V DC
    Contact resistance 100MΩ
    Contact current max. 40A
    Relay variant automotive
    Type of relay electromagnetic
    Coil power consumption 680mW
