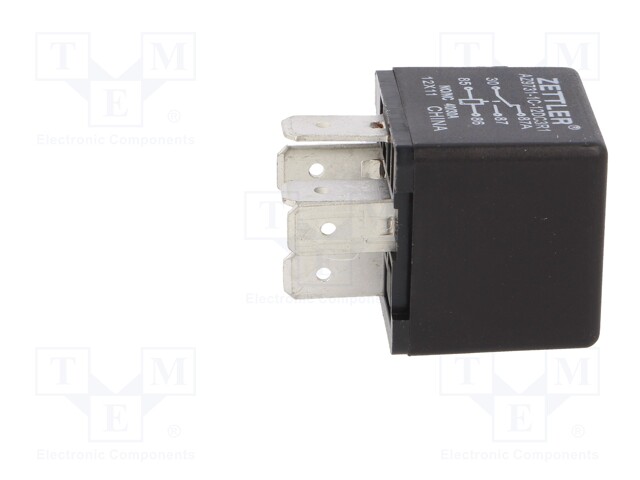

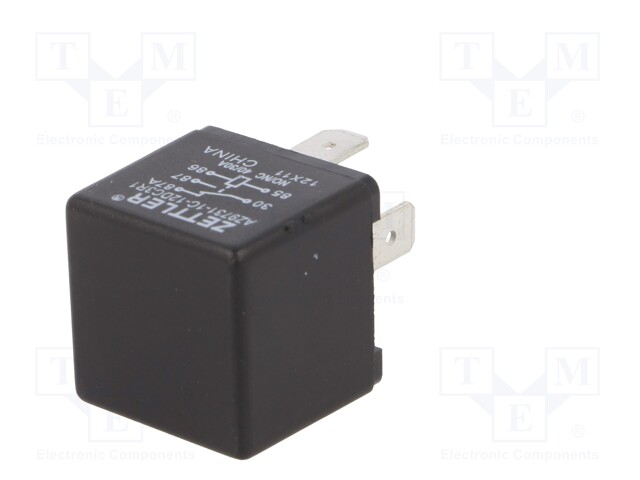

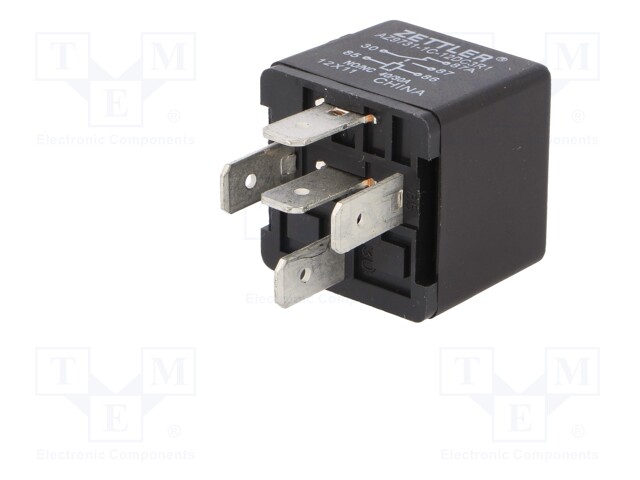

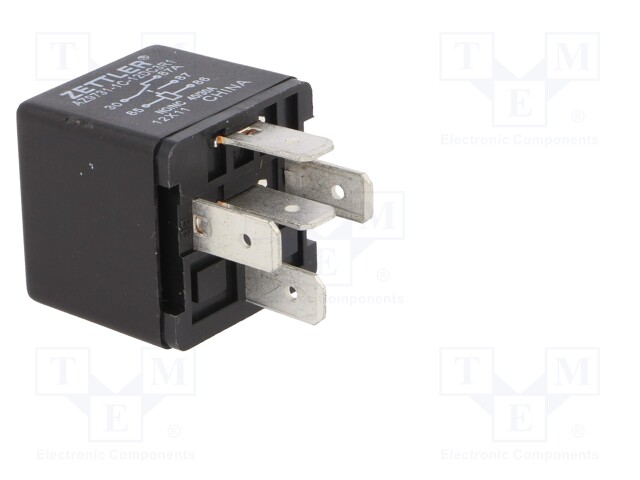

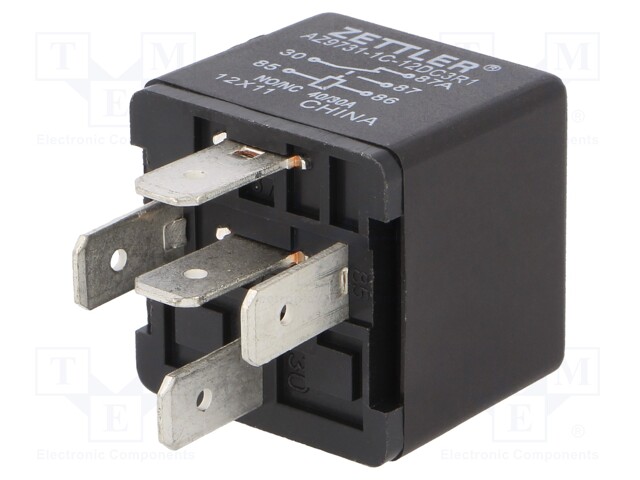

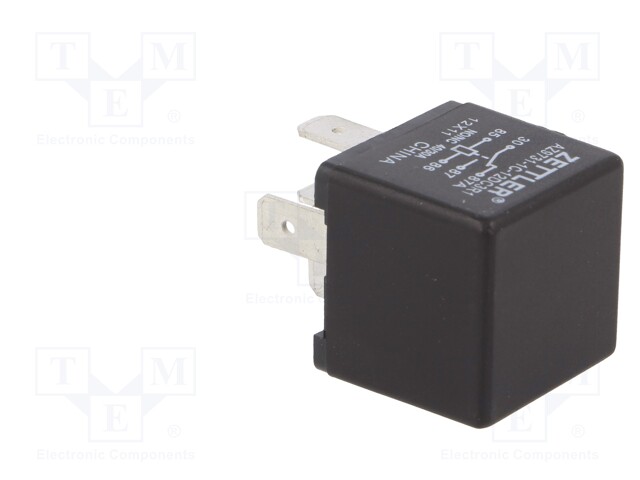

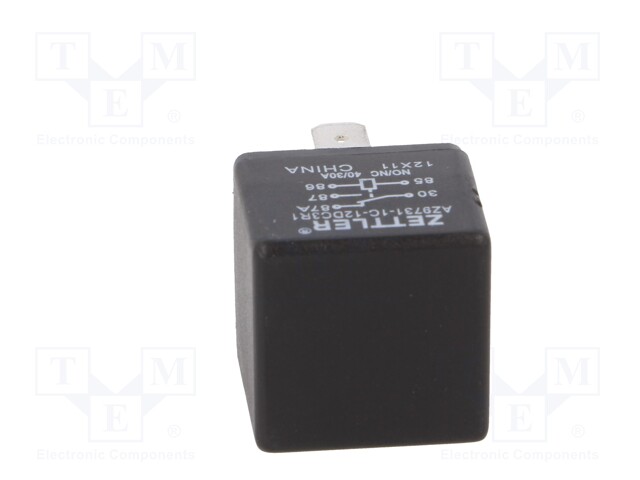

Relay: electromagnetic; SPDT; Ucoil: 12VDC; 40A; automotive; 50mΩ

    Kordarv: 1.0
    Minimum quantity: 1.0
    Tootekood: AZ9731-1C-12DC3R1
    Tootja: ZETTLER
    Tootja tootekood: AZ9731-1C-12DC3R1
    • Mounting
    • Operating temperature
    • Leads
    • Contact material
    • Body dimensions
    • Switched voltage
    • Rated coil voltage
    • Contacts configuration
    • DC contacts rating @R
    • Contact resistance
    • Contact current max.
    • Relay variant
    • Type of relay
    • Operate time
    • Release time

    2,97 € 2,97 € (KM-TA) 2.97 EUR

    2,97 €

    Seda kombinatsiooni ei eksisteeri.

    Lisa ostukorvi

    Product downloads

    Spetsifikatsioon tootele Relay: electromagnetic; SPDT; Ucoil: 12VDC; 40A; automotive; 50mΩ

    Mounting socket
    Operating temperature -40...125°C
    Leads connectors
    Contact material AgSnO<sub>2</sub>

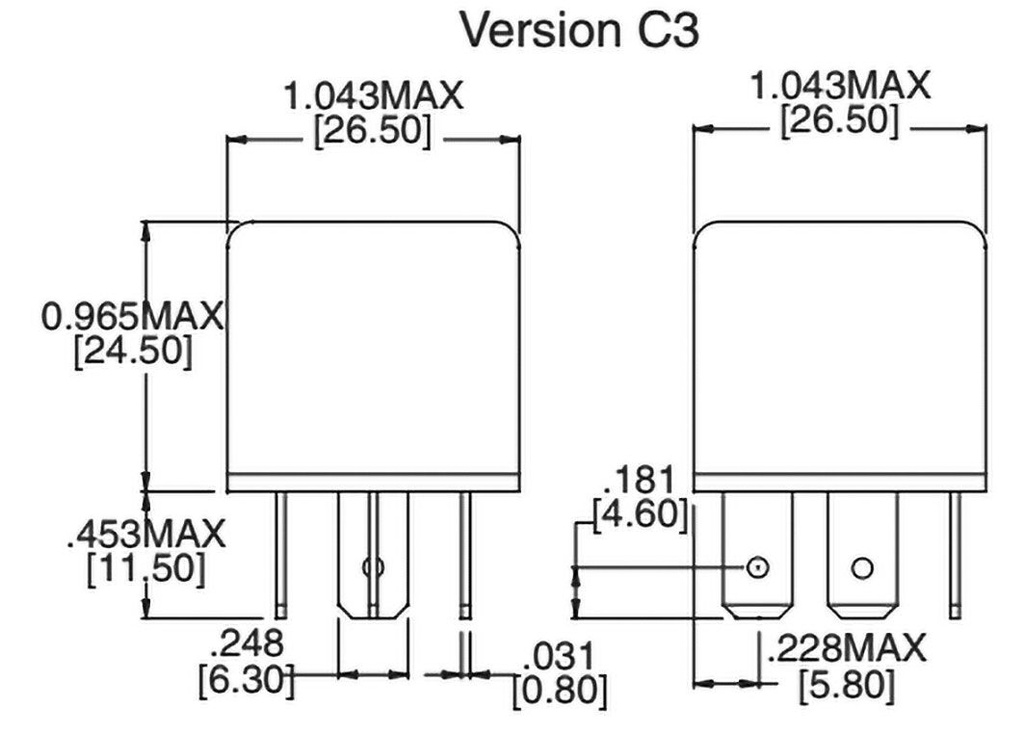

    Body dimensions 26.5x26.5x24.5mm
    Switched voltage ≤ 28V DC
    Rated coil voltage 12V DC

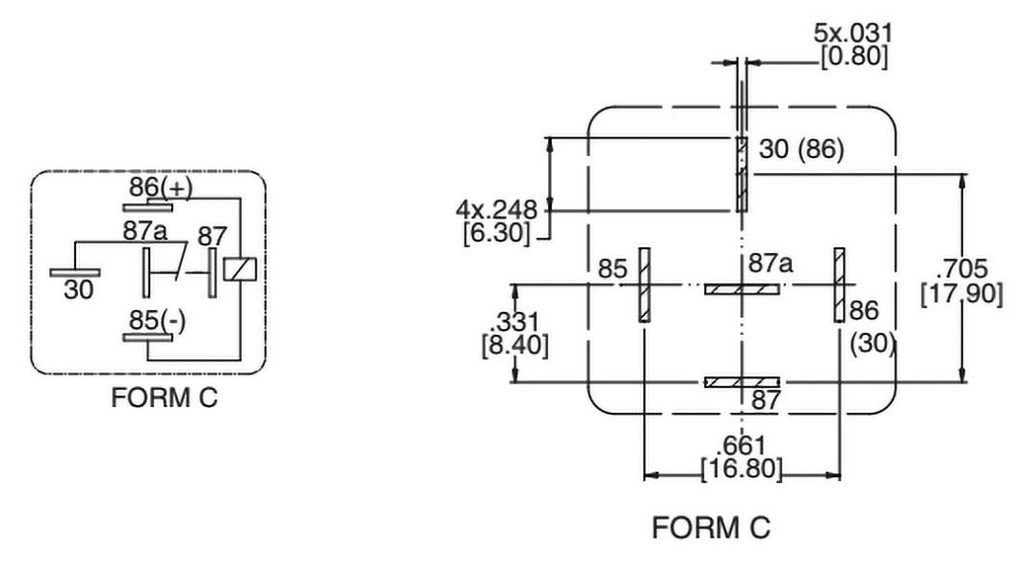

    Contacts configuration SPDT
    DC contacts rating @R 30A / 14V DC
    Contact resistance 50mΩ
    Contact current max. 40A
    Relay variant automotive
    Type of relay electromagnetic
    Operate time 7ms
    Release time 5ms
