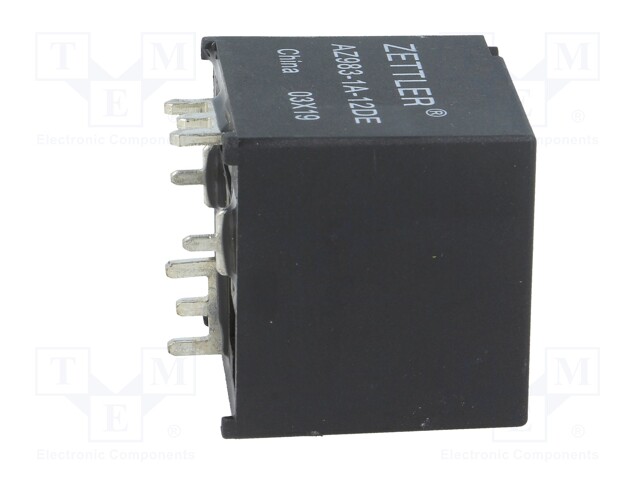

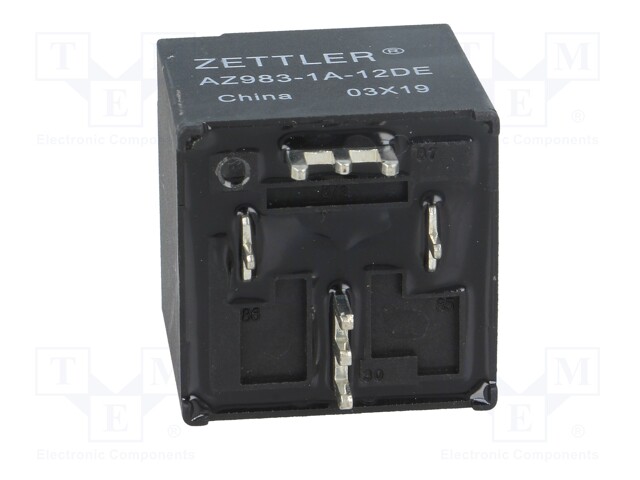

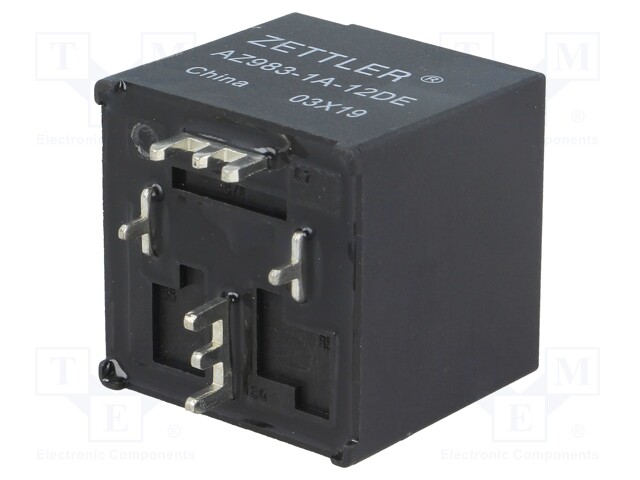

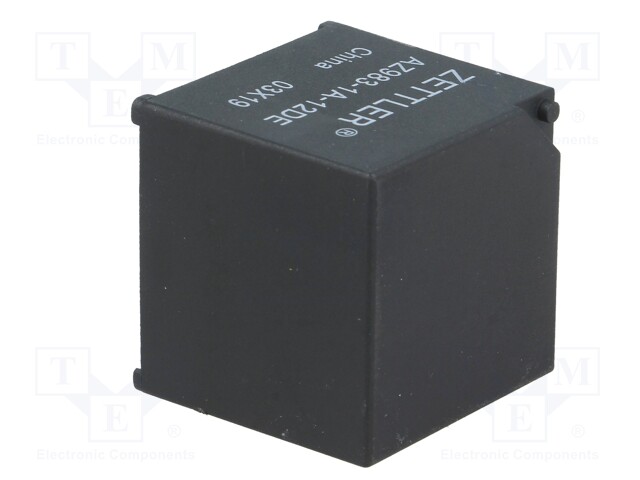

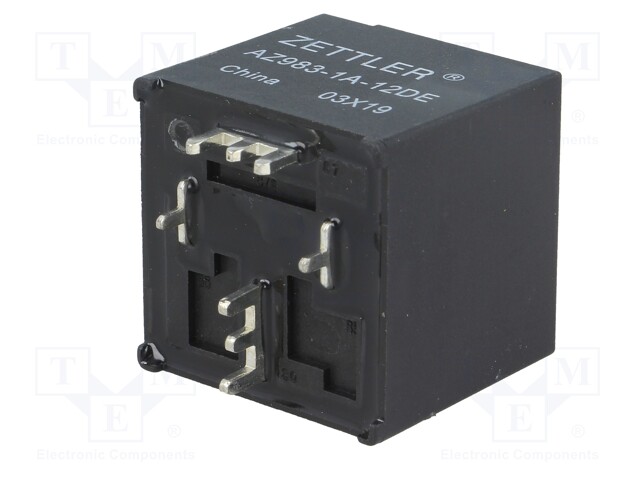

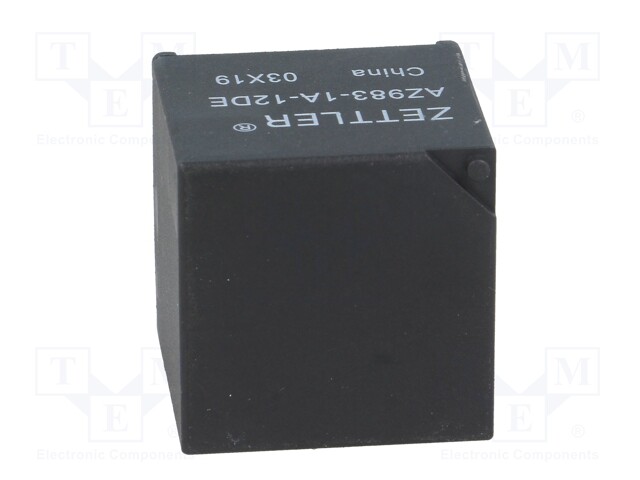

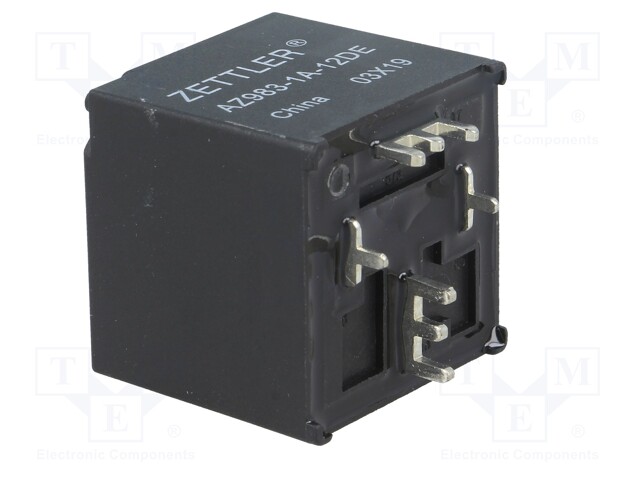

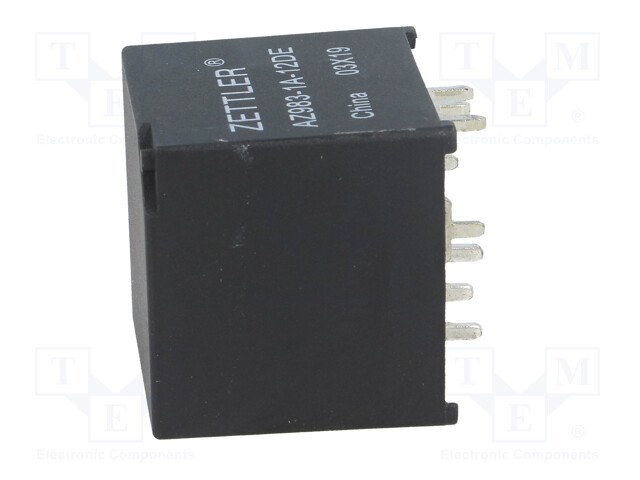

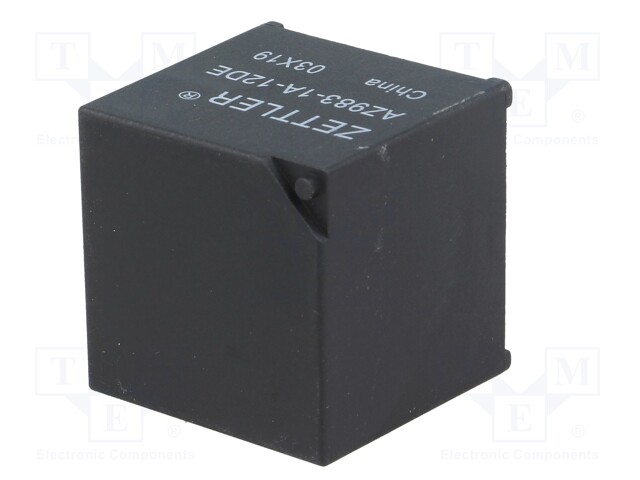

Relay: electromagnetic; SPST-NO; Ucoil: 12VDC; 80A; automotive

    Kordarv: 1.0
    Minimum quantity: 1.0
    Tootekood: AZ983-1A-12DE
    Tootja: ZETTLER
    Tootja tootekood: AZ983-1A-12DE
    • Mounting
    • Operating temperature
    • Contact material
    • Body dimensions
    • Switched voltage
    • Coil resistance
    • Rated coil voltage
    • Contacts configuration
    • DC contacts rating @R
    • Contact resistance
    • Contact current max.
    • Relay variant
    • Type of relay
    • Coil power consumption

    4,50 € 4,50 € (KM-TA) 4.5 EUR

    4,50 €

    Seda kombinatsiooni ei eksisteeri.

    Lisa ostukorvi

    Product downloads

    Spetsifikatsioon tootele Relay: electromagnetic; SPST-NO; Ucoil: 12VDC; 80A; automotive

    Mounting PCB
    Operating temperature -40...85°C
    Contact material AgSnO<sub>2</sub>

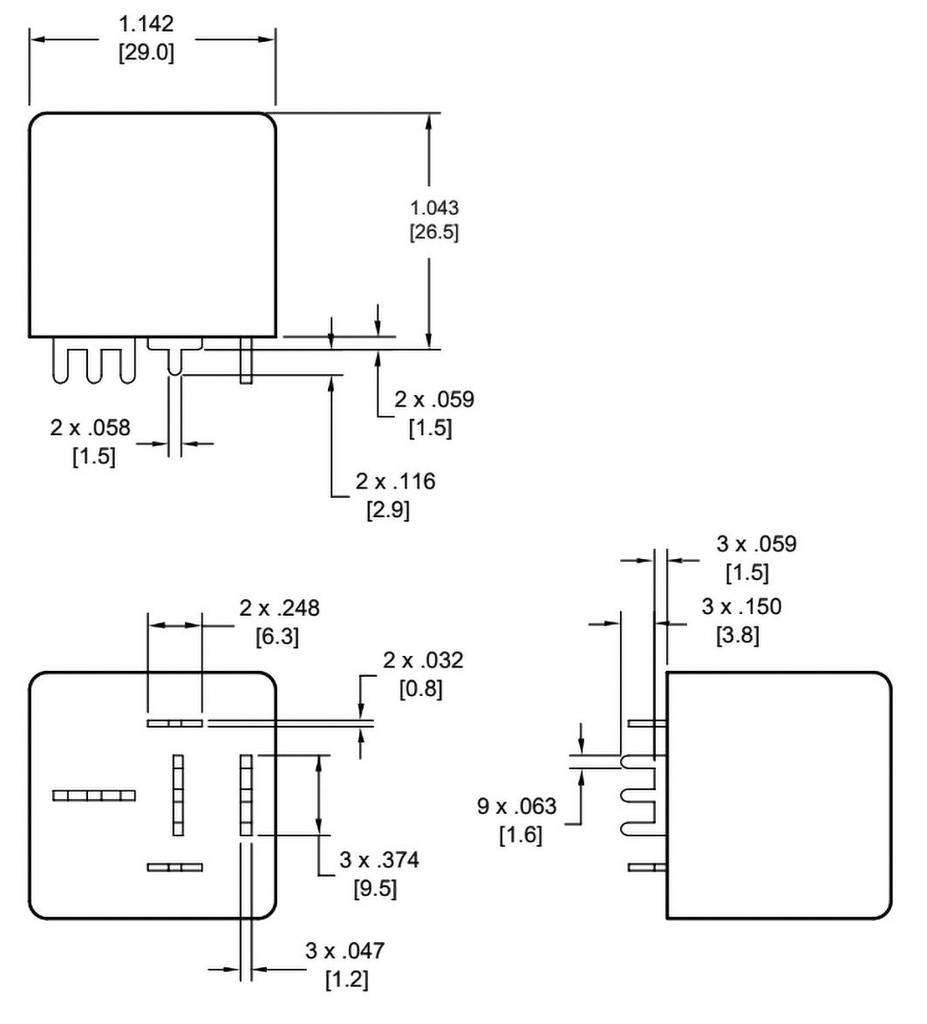

    Body dimensions 29x29x26.5mm
    Switched voltage ≤ 28V DC
    Coil resistance 80Ω
    Rated coil voltage 12V DC

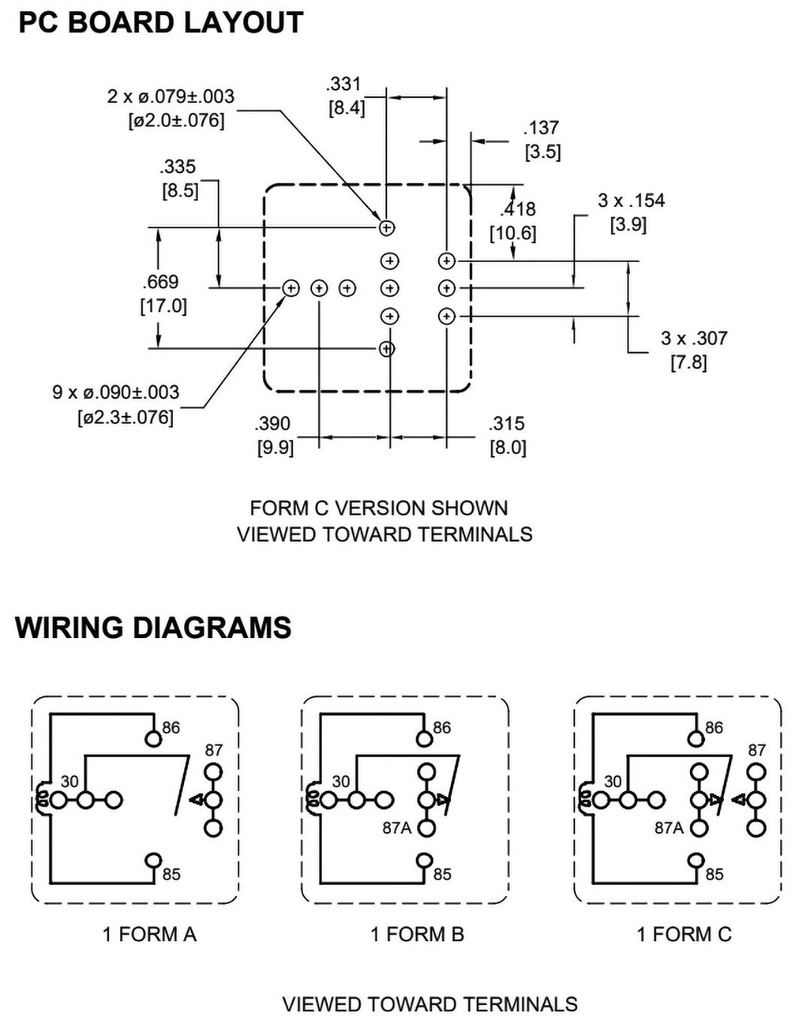

    Contacts configuration SPST-NO
    DC contacts rating @R 80A / 14V DC
    Contact resistance 50mΩ
    Contact current max. 80A
    Relay variant automotive
    Type of relay electromagnetic
    Coil power consumption 760mW
