Relay: electromagnetic; SPST-NO; Ucoil: 12VDC; 16A/300VAC; 16A

    Kordarv: 250.0
    Minimum quantity: 250.0
    Tootekood: AZDC110-1AE-12DF
    Tootja: ZETTLER
    Tootja tootekood: AZDC110-1AE-12DF
    • Mounting
    • Operating temperature
    • Contact material
    • Terminal pitch
    • Body dimensions
    • Additional functions
    • Switched voltage
    • Switched voltage
    • Coil resistance
    • Rated coil voltage
    • Contacts configuration
    • DC contacts rating @R
    • Contact resistance
    • AC contacts rating @R
    • Contact current max.
    • Relay variant
    • Type of relay
    • Coil power consumption

    0,00 € 0,00 € (KM-TA) 0.0 EUR

    0,00 €

    Seda kombinatsiooni ei eksisteeri.

    Lisa ostukorvi

    Product downloads

    Spetsifikatsioon tootele Relay: electromagnetic; SPST-NO; Ucoil: 12VDC; 16A/300VAC; 16A

    Mounting PCB
    Operating temperature -40...105°C
    Contact material AgSnO<sub>2</sub>
    Terminal pitch 5mm

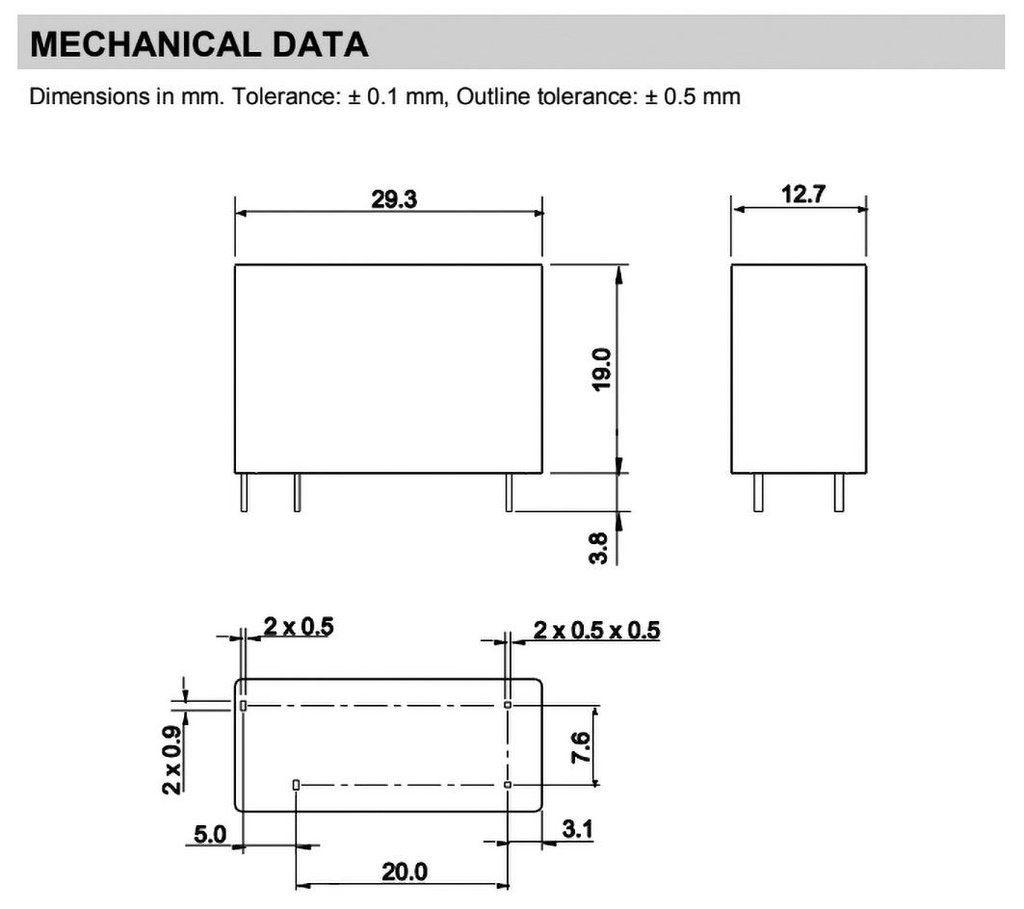

    Body dimensions 29.3x12.7x19mm
    Additional functions magnetic arc blow-out
    Switched voltage ≤ 300V AC, ≤ 420V DC
    Coil resistance 360Ω
    Rated coil voltage 12V DC
    Contacts configuration SPST-NO
    DC contacts rating @R 10A / 300V DC
    Contact resistance 100MΩ
    AC contacts rating @R 16A / 300V AC
    Contact current max. 16A
    Relay variant miniature
    Type of relay electromagnetic
    Coil power consumption 400mW
