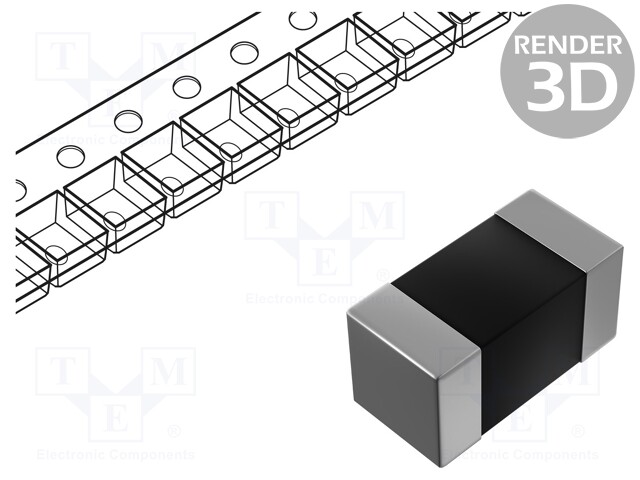

Inductor: ferrite; SMD; 22uH; 140mA; 2.65Ω; ±10%; 3.2x2.5x2mm

    Kordarv: 10.0
    Minimum quantity: 10.0
    Tootekood: B82422A1223K100
    Tootja: EPCOS
    Tootja tootekood: B82422A1223K100
    • Mounting
    • Resistance
    • Case - inch
    • Operating temperature
    • Tolerance
    • Operating current
    • Body dimensions
    • Inductance
    • Case - mm
    • Conform to the norm
    • Type of inductor
    • Resonant frequency
    • Q factor

    0,25 € 0,25 € (KM-TA) 0.25 EUR

    0,25 €

    Seda kombinatsiooni ei eksisteeri.

    Lisa ostukorvi

    Product downloads

    Spetsifikatsioon tootele Inductor: ferrite; SMD; 22uH; 140mA; 2.65Ω; ±10%; 3.2x2.5x2mm

    Mounting SMD
    Resistance 2.65Ω
    Case - inch 1210
    Operating temperature -55...145°C
    Tolerance ±10%
    Operating current 140mA
    Body dimensions 3.2x2.5x2mm
    Inductance 22µH
    Case - mm 3225
    Conform to the norm AEC-Q200
    Type of inductor ferrite
    Resonant frequency 16MHz
    Q factor 27
