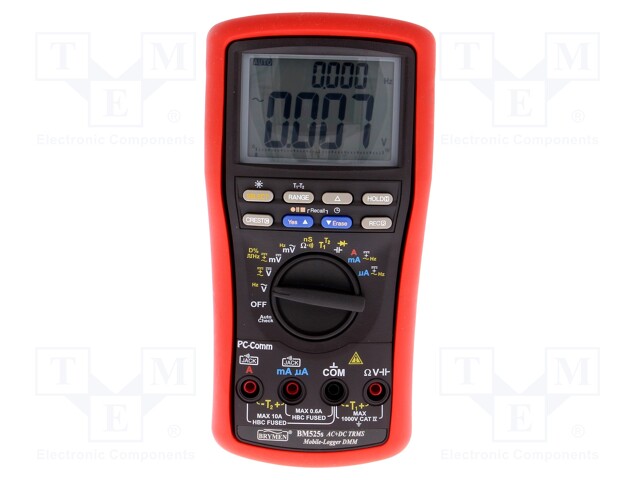

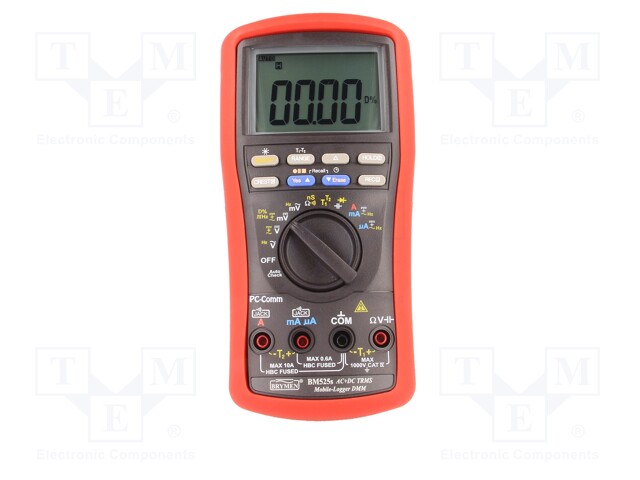

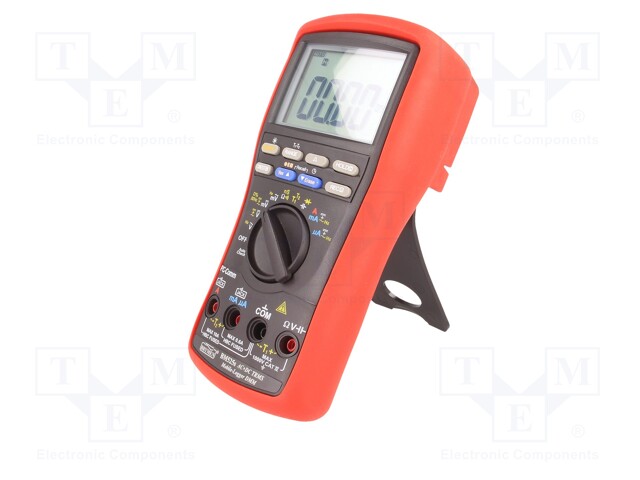

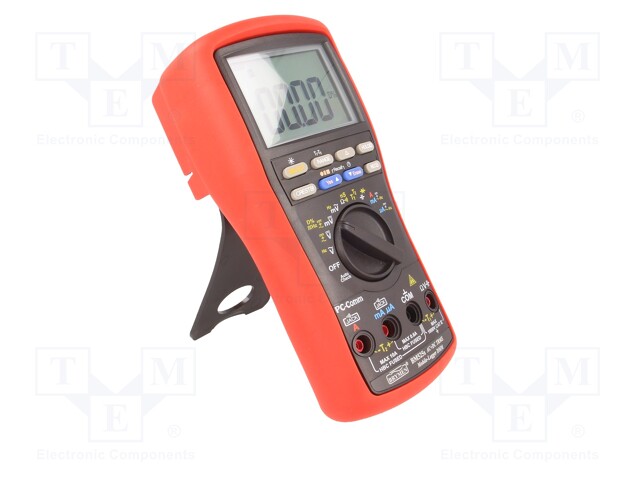

Digital multimeter; LCD (9999),bargraph,with a backlit; 5x/s
Kordarv:
1.0
Minimum quantity:
1.0
Tootekood:
BM525S
Tootja: BRYMEN
Tootja tootekood: BM525S
Product downloads
Spetsifikatsioon tootele Digital multimeter; LCD (9999),bargraph,with a backlit; 5x/s
| Temperature measuring range | -50...1000°C |
| Kind of display used | LCD |
| Duty cycle factor | 0...100% |
| Conform to the norm | EN 61010 |
| Measuring instrument features | auto and manual ranging, Autocheck function - automatic selection LoZ DCV, LoZ ACV, i Ω, automatic power-off, CREST: logging of extreme values MAX, MIN and MAX-MIN of voltage and current impulses > 0,8ms, HOLD function, indicates incorrect connection of test leads, logging of MAX, MIN, MIN/MAX/MEDIUM function, two channel temperature measurement |
| Standard equipment | drop-like K-type probe with banana clips, test leads |
| Pollution degree | 2 |
| Type of meter | digital multimeter |
| Measurement | AC current, AC voltage, capacitance, DC current, DC voltage, duty cycle, frequency, resistance, temperature |
| Continuity test | acoustic indication |
| Sampling | 5x/s |
| Weight with battery | 635g |
| True effective value measurement | True RMS AC, True RMS AC+DC |
| Bargraph | 41 segm. 60x/s |
| Duty cycle factor measurement accuracy | 3d/kHz + 2 digits |
