1. Tooted
    2. Polyester capacitors
    3. Capacitor: polypropylene; 4.7uF; ESR: 4.2mΩ; C4AF; THT; ±10%; 38V/μs
    Avalik hinnakiri

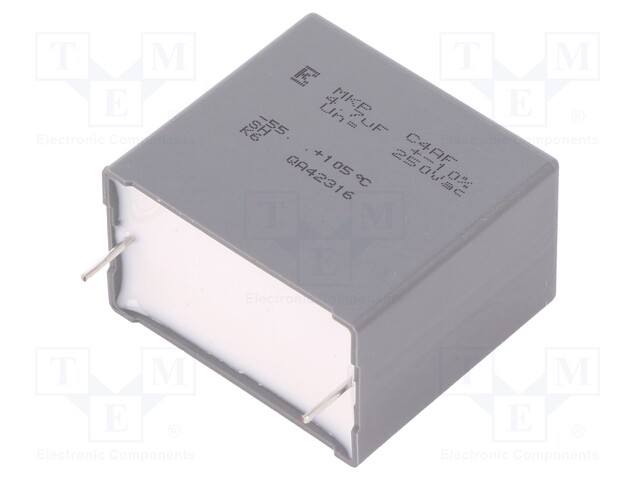

    Capacitor: polypropylene; 4.7uF; ESR: 4.2mΩ; C4AF; THT; ±10%; 38V/μs

    Kordarv: 216.0
    Minimum quantity: 216.0
    Tootekood: C4AF1BU4470A11K
    Tootja: KEMET
    Tootja tootekood: C4AF1BU4470A11K
    Sertifikaadid:
    • Mounting
    • Operating voltage
    • Operating voltage
    • Max. operating current
    • Operating temperature
    • Tolerance
    • Max. forward impulse current
    • Terminal pitch
    • Body dimensions
    • Capacitance
    • Type of capacitor
    • Capacitor application
    • Conform to the norm
    • ESR value
    • Climate class
    • Climate class
    • Pulse resistance

    2,55 € 2,55 € (KM-TA) 2.5500000000000003 EUR

    2,55 €

    Seda kombinatsiooni ei eksisteeri.

    Lisa ostukorvi

    Product downloads

    Spetsifikatsioon tootele Capacitor: polypropylene; 4.7uF; ESR: 4.2mΩ; C4AF; THT; ±10%; 38V/μs

    Mounting THT
    Operating voltage 250V DC, 250V AC
    Max. operating current 9.1A
    Operating temperature -55...105°C
    Tolerance ±10%
    Max. forward impulse current 179A
    Terminal pitch 27.5mm
    Body dimensions 31.5x29x19mm
    Capacitance 4.7µF
    Type of capacitor polypropylene
    Capacitor application filtering
    Conform to the norm AEC-Q200
    ESR value 4.2mΩ
    Climate class 55/105/56, IEC60068-1
    Pulse resistance 38V/μs
