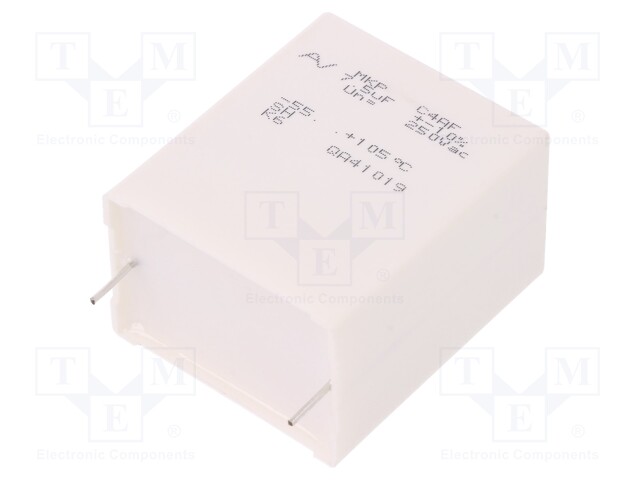

    Capacitor: polypropylene; 7.5uF; ESR: 3.4mΩ; C4AF; THT; ±10%; 38V/μs

    Kordarv: 192.0
    Minimum quantity: 192.0
    Tootekood: C4AF1BU4750A12K
    Tootja: KEMET
    Tootja tootekood: C4AF1BU4750A12K
    Sertifikaadid:
    • Mounting
    • Operating voltage
    • Operating voltage
    • Max. operating current
    • Operating temperature
    • Tolerance
    • Max. forward impulse current
    • Terminal pitch
    • Body dimensions
    • Capacitance
    • Type of capacitor
    • Capacitor application
    • Conform to the norm
    • ESR value
    • Climate class
    • Climate class
    • Pulse resistance

    3,32 € 3,32 € (KM-TA) 3.3200000000000003 EUR

    3,32 €

    Seda kombinatsiooni ei eksisteeri.

    Lisa ostukorvi

    Product downloads

    Spetsifikatsioon tootele Capacitor: polypropylene; 7.5uF; ESR: 3.4mΩ; C4AF; THT; ±10%; 38V/μs

    Mounting THT
    Operating voltage 500V DC, 250V AC
    Max. operating current 11.3A
    Operating temperature -55...105°C
    Tolerance ±10%
    Max. forward impulse current 285A
    Terminal pitch 27.5mm
    Body dimensions 31.5x37x22mm
    Capacitance 7.5µF
    Type of capacitor polypropylene
    Capacitor application filtering
    Conform to the norm AEC-Q200
    ESR value 3.4mΩ
    Climate class 55/105/56, IEC60068-1
    Pulse resistance 38V/μs
