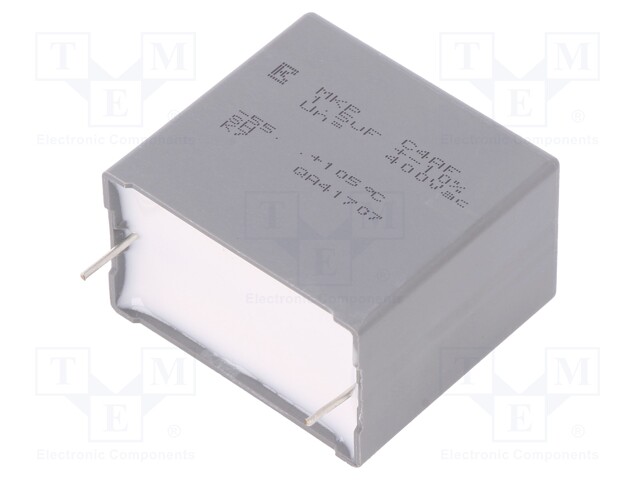

Capacitor: polypropylene; 1.5uF; ESR: 5.8mΩ; C4AF; THT; ±10%; 400VDC

    Kordarv: 1.0
    Minimum quantity: 1.0
    Tootekood: C4AF3BU4150A11K
    Tootja: KEMET
    Tootja tootekood: C4AF3BU4150A11K
    • Mounting
    • Operating voltage
    • Max. operating current
    • Operating temperature
    • Tolerance
    • Max. forward impulse current
    • Terminal pitch
    • Body dimensions
    • Max. operating voltage
    • Capacitance
    • Type of capacitor
    • Capacitor application
    • Conform to the norm
    • ESR value
    • Climate class
    • Climate class
    • Pulse resistance

    4,04 € 4,04 € (KM-TA) 4.04 EUR

    4,04 €

    Seda kombinatsiooni ei eksisteeri.

    Lisa ostukorvi

    Product downloads

    Spetsifikatsioon tootele Capacitor: polypropylene; 1.5uF; ESR: 5.8mΩ; C4AF; THT; ±10%; 400VDC

    Mounting THT
    Operating voltage 400V DC
    Max. operating current 7.7A
    Operating temperature -55...105°C
    Tolerance ±10%
    Max. forward impulse current 212A
    Terminal pitch 27.5mm
    Body dimensions 31.5x29x19mm
    Max. operating voltage 400V DC
    Capacitance 1.5µF
    Type of capacitor polypropylene
    Capacitor application filtering
    Conform to the norm AEC-Q200
    ESR value 5.8mΩ
    Climate class 55/105/56, IEC60068-1
    Pulse resistance 141V/μs
