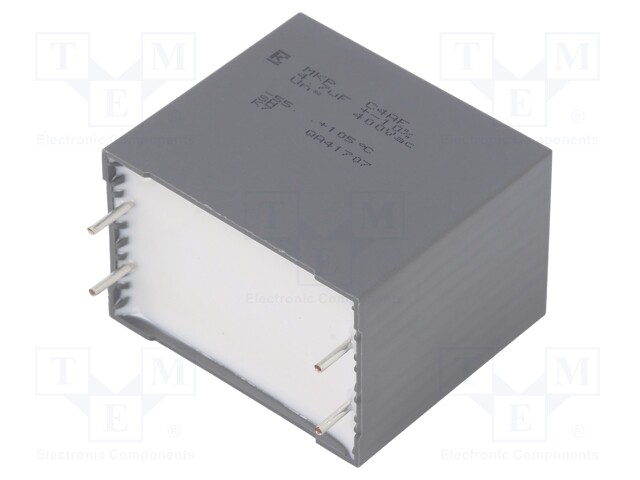

    Capacitor: polypropylene; 4.7uF; ESR: 2.3mΩ; C4AF; THT; ±10%; 400VDC

    Kordarv: 108.0
    Minimum quantity: 108.0
    Tootekood: C4AF3BW4470A3JK
    Tootja: KEMET
    Tootja tootekood: C4AF3BW4470A3JK
    Sertifikaadid:
    • Mounting
    • Operating voltage
    • Max. operating current
    • Operating temperature
    • Tolerance
    • Max. forward impulse current
    • Terminal pitch
    • Body dimensions
    • Capacitance
    • Type of capacitor
    • Capacitor application
    • Conform to the norm
    • ESR value
    • Climate class
    • Climate class
    • Pulse resistance

    5,61 € 5,61 € (KM-TA) 5.61 EUR

    5,61 €

    Seda kombinatsiooni ei eksisteeri.

    Lisa ostukorvi

    Product downloads

    Spetsifikatsioon tootele Capacitor: polypropylene; 4.7uF; ESR: 2.3mΩ; C4AF; THT; ±10%; 400VDC

    Mounting THT
    Operating voltage 800V DC
    Max. operating current 15.4A
    Operating temperature -55...105°C
    Tolerance ±10%
    Max. forward impulse current 423A
    Terminal pitch 37.5x10.2mm
    Body dimensions 42x37x28mm
    Capacitance 4.7µF
    Type of capacitor polypropylene
    Capacitor application filtering
    Conform to the norm AEC-Q200
    ESR value 2.3mΩ
    Climate class 55/105/56, IEC60068-1
    Pulse resistance 90V/μs
