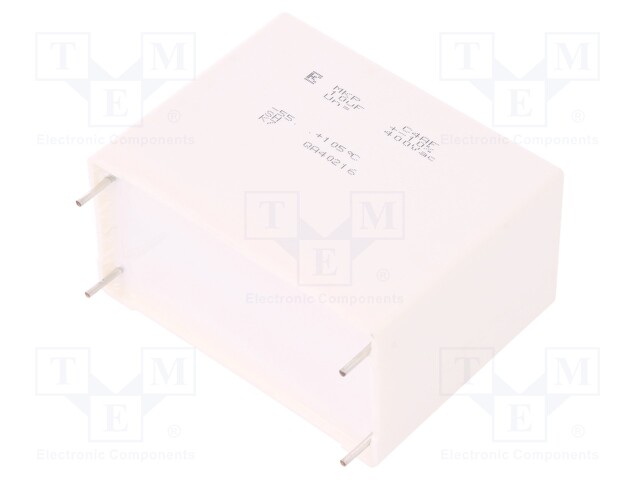

    3. Capacitor: polypropylene; 10uF; ESR: 1.9mΩ; C4AF; THT; ±10%; 400VDC
    Public Pricelist

    Capacitor: polypropylene; 10uF; ESR: 1.9mΩ; C4AF; THT; ±10%; 400VDC

    Kordarv: 81.0
    Minimum quantity: 81.0
    Tootekood: C4AF3BW5100A3MK
    Tootja: KEMET
    Tootja tootekood: C4AF3BW5100A3MK
    Sertifikaadid:
    • Mounting
    • Operating voltage
    • Max. operating current
    • Operating temperature
    • Tolerance
    • Max. forward impulse current
    • Terminal pitch
    • Body dimensions
    • Capacitance
    • Type of capacitor
    • Capacitor application
    • Conform to the norm
    • ESR value
    • Climate class
    • Climate class
    • Pulse resistance

    9,05 € 9,05 € (KM-TA) 9.05 EUR

    9,05 €

    Seda kombinatsiooni ei eksisteeri.

    Lisa ostukorvi

    Product downloads

    Spetsifikatsioon tootele Capacitor: polypropylene; 10uF; ESR: 1.9mΩ; C4AF; THT; ±10%; 400VDC

    Mounting THT
    Operating voltage 400V DC
    Max. operating current 20.8A
    Operating temperature -55...105°C
    Tolerance ±10%
    Max. forward impulse current 610A
    Terminal pitch 52.5x20.3mm
    Body dimensions 57.5x45x30mm
    Capacitance 10µF
    Type of capacitor polypropylene
    Capacitor application filtering
    Conform to the norm AEC-Q200
    ESR value 1.9mΩ
    Climate class 55/105/56, IEC60068-1
    Pulse resistance 61V/μs
