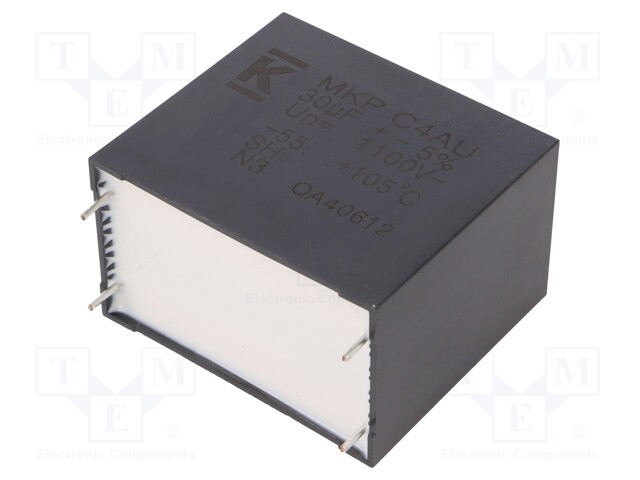

Capacitor: polypropylene; DC-Link; 30uF; ESR: 4.8mΩ; THT; ±5%; 23A

    Kordarv: 1.0
    Minimum quantity: 1.0
    Tootekood: C4AUQBW5300M3NJ
    Tootja: KEMET
    Tootja tootekood: C4AUQBW5300M3NJ
    • Mounting
    • Max. operating current
    • Operating temperature
    • Tolerance
    • Terminal pitch
    • Body dimensions
    • Capacitance
    • Kind of capacitor
    • Type of capacitor
    • Capacitor application
    • Conform to the norm
    • ESR value
    • Climate class
    • Climate class
    • Pulse resistance

    14,17 € 14,17 € (KM-TA) 14.17 EUR

    14,17 €

    Seda kombinatsiooni ei eksisteeri.

    Lisa ostukorvi

    Product downloads

    Spetsifikatsioon tootele Capacitor: polypropylene; DC-Link; 30uF; ESR: 4.8mΩ; THT; ±5%; 23A

    Mounting THT
    Max. operating current 23A
    Operating temperature -55...105°C
    Tolerance ±5%
    Terminal pitch 52.5mm
    Body dimensions 57.5x50x35mm
    Capacitance 30µF
    Kind of capacitor DC-Link
    Type of capacitor polypropylene
    Capacitor application filtering
    Conform to the norm AEC-Q200
    ESR value 4.8mΩ
    Climate class 55/105/56, IEC60068-1
    Pulse resistance 20V/μs
