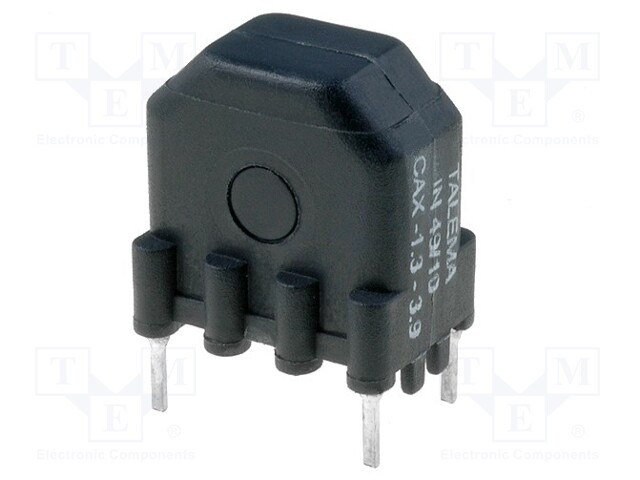

Inductor: wire; THT; 3.9mH; 1.3A; 230mΩ; 250VAC; -40÷125°C; ±30%

    Kordarv: 1.0
    Minimum quantity: 1.0
    Tootekood: CAX-1.3-3.9
    Tootja: TALEMA
    Tootja tootekood: CAX-1.3-3.9
    • Mounting
    • Resistance
    • Operating voltage
    • Operating temperature
    • Tolerance
    • Terminal pitch
    • Operating current
    • D dimension
    • H dimension
    • Spatial orientation
    • C dimension
    • E dimension
    • F dimension
    • Dimension G
    • Type of inductor
    • Test frequency
    • Inductor application
    • Number of windings
    • Inductance of individual winding
    • Test voltage AC
    • I dimension
    • Kind of inductor
    • Kind of inductor

    3,38 € 3,38 € (KM-TA) 3.38 EUR

    3,38 €

    Seda kombinatsiooni ei eksisteeri.

    Lisa ostukorvi

    Product downloads

    Spetsifikatsioon tootele Inductor: wire; THT; 3.9mH; 1.3A; 230mΩ; 250VAC; -40÷125°C; ±30%

    Mounting THT
    Resistance 230mΩ
    Operating voltage 250V AC
    Operating temperature -40...125°C
    Tolerance ±30%
    Terminal pitch 15x10mm
    Operating current 1.3A
    D dimension 12.8mm
    H dimension 15mm
    Spatial orientation vertical
    C dimension 17.8mm
    E dimension 20mm
    F dimension 10mm
    Dimension G 5mm
    Type of inductor wire
    Test frequency 10kHz
    Inductor application mains filters
    Number of windings 2
    Inductance of individual winding 3.9mH
    Test voltage AC 1.5kV
    I dimension 5mm
    Kind of inductor common mode, toroidal
